Fabtech 4 Inch Ultimate Lift Kit w/Ball Joint UCA & Stealth Shocks – K1055M

Fabtech

Shop Fabtech Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Confirm your vehicle’s year, model and trim before ordering.
  • 4-inch Ultimate system with spindles, upper control arms and torsion keys
  • Stealth monotube shocks included
  • Optional 1-inch rear block kits with separate 2500 HD and 3500 HD part numbers
  • Requires cutting fender well sheet metal for 35-inch tires

Description

Overview

The K1055M is a 4-inch Ultimate lift with Stealth monotube shocks. It includes spindles, replacement upper control arms, steering knuckles, torsion keys and all required hardware. The system allows 33-inch or 35-inch tall tires for street and off-road use, and the 35-inch sizes need fender well cutting.

The upper control arms are made of 1.50-inch OD, 0.120 wall DOM tubing and attach to heavy duty ductile iron steering knuckles. The stock torsion bars are kept in position and set with new forged adjusting keys. The lift levels the stance compared with a factory nose-down rake and makes no change to the rear suspension. An optional 1-inch rear block kit is available for buyers who want the factory nose-down look, with separate part numbers for 2500 HD and 3500 HD.

Key features

  • 4-inch lift height, range 3 to 4.99 inches
  • Replacement upper control arms
  • Heavy duty ductile iron steering knuckles
  • Forged adjusting torsion keys
  • Stealth monotube shocks included
  • All required hardware included

Stance and rear geometry

Matching the front and rear heights changes how the truck sits and how the drivetrain angles work. A front-only lift is common, but the rear suspension stays at its factory height unless a block is added. Measure both ends before deciding on a rear block.

Stealth monotube shocks are designed to work with the new front geometry. Inspect the shock mounts, bushings and reservoir seals as part of routine maintenance. Damaged dust boots or leaks are reasons to replace the unit rather than wait.

Fender well work on 35-inch tire setups should be planned carefully. Clean cuts, sealed edges and a clear view of brake lines and fuel lines keep the truck safe to drive. Recheck the sheet metal after the first few trips.

Specifications

Brand Fabtech
Part number K1055M
UPC 700007232821
Lift height 4 inches (range 3 to 4.99 inches)
Suspension type Knuckle
Upper control arms Replacement, 1.50-inch OD, 0.120 wall DOM tubing
Rear change None; optional 1-inch rear block kit
Optional rear block part numbers FABFTS21110 (2500 HD), FABFTS21111 (3500 HD)
Tire and wheel fit 33/12.50R18 and 33/12.50R20 on 20×9 and 18×9 with 5 3/4-inch backspacing; 35/13.50R18 and 35/13.50R20 with fender well cutting
Shocks Stealth monotube shocks

Vehicle fitment

The kit does not fit standard cab models or 17-inch wheels. The optional rear block kit has separate part numbers for 2500 HD and 3500 HD models. Check that your truck’s year, model and trim match before ordering.

Installation notes

35-inch tire sizes require cutting the fender well sheet metal. The kit is not for standard cab trucks or 17-inch wheels.

What’s included

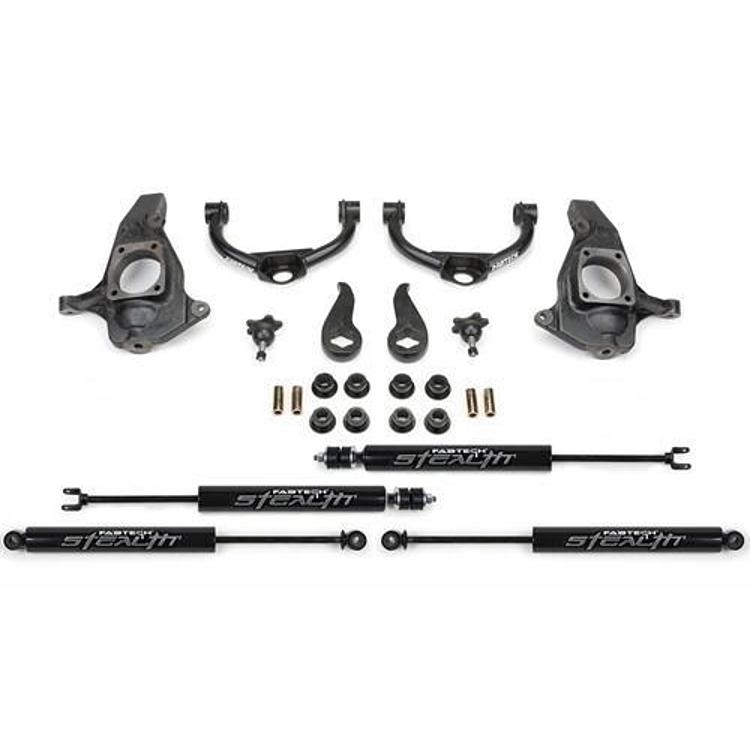

Spindles, replacement upper control arms, steering knuckles, forged adjusting torsion keys, Stealth monotube shocks and all required hardware.

Not included: The optional 1-inch rear block kit.

SKU: FABK1055M Category:

Specification

Shipping weight 145.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which trucks does the K1055M fit?

Check the year, model and trim against your truck before ordering. The kit does not fit standard cab models or 17-inch wheels.

Can the K1055M run 35-inch tires?

Yes, but the 35-inch sizes require cutting the fender well sheet metal. The 33-inch sizes do not need that cut.

Does the K1055M include a rear lift?

No rear block is included. The optional 1-inch rear block kit is listed with separate part numbers for the 2500 HD and 3500 HD.

Does a torsion key change need an alignment?

Yes. Adjusting the forged keys changes the front ride height and wheel angles, so an alignment should follow the install. Recheck the settings after the first few drives and whenever the tires are changed.
