Overview

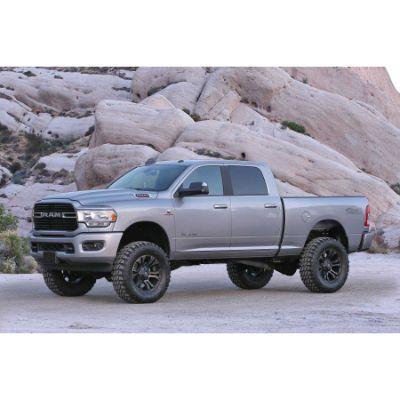

The Fabtech K3173 is a 5-inch basic lift kit with coil spacers and performance shocks for the 2019 to 2021 Ram 2500. It is a system that keeps the truck’s factory load carrying capacity and ride with minimal parts. The lift height range is 4 to 5.5 inches, and it covers Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star and Tradesman versions.
The factory Ram radius arms are relocated using heavy duty 1/4-inch steel brackets, which keep the caster correct for the 5-inch lift. Track bar drop brackets, also in steel, center the axles under the vehicle at the new ride height. The kit is a full lift, matching its title and 5-inch size.
Key features
- 5-inch lift for 2019 to 2021 Ram 2500 trucks
- Factory load carrying capacity and ride retained.
- Radius arms relocated with 1/4-inch steel brackets
- Front track bar drop brackets
- Angular steel spacers that keep the factory front spring bow
- Steel rear coil spring spacers
- Heavy duty steel front bump extensions
- Performance shocks at the front and rear
Why spacer type matters
Coil spacers raise the truck by changing where the springs sit, so the spring rate and the factory spring bow come into play. Angular spacers are shaped to hold the original spring geometry, which affects caster and the feel of the front end. Flat spacers can change the spring position enough to alter alignment and steering response over time.
Heavy trucks used for towing put steady loads on the front and rear springs, shock mounts and radius arm bushings. Inspect those bushings and mounts before installing a lift, and replace any that show cracking or looseness. A lift works best when the supporting parts are in good condition.
- Inspect radius arm bushings for cracking
- Check shock mounting hardware for wear
- Confirm bump stop clearance after installation
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FABK3173 |
| Lift size | 5 inches |
| Lift height range | 4 to 5.5 inches |
| Front spacers | Angular steel |
| Rear lift component | Steel coil spring spacer |
| Radius arm brackets | 1/4-inch steel, heavy duty |
| Front and rear shocks | Performance, included |
| Tire options | 37/12.50R17 on 17×9, 37/13.50R18 on 18×9, 37/13.50R20 on 20×9, all with 5-inch backspacing |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2019 to 2021 Ram 2500 models in the Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star and Tradesman versions. Confirm your vehicle’s year, model and trim before ordering.
The 2018 and 2022 Ram 2500 are not on the list. The tire options carry a minor trimming note. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Relocating the radius arms and adding track bar drop brackets changes the front axle position, so a wheel alignment is needed after installation. The angular front spacers keep the factory spring bow in place, which helps hold the alignment specification. Flat spacers do not keep that bow.
What’s included

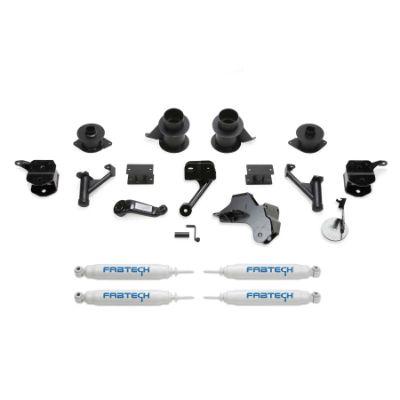

The kit includes the radius arm relocation brackets, the track bar drop brackets, the angular front spring spacers, the rear steel coil spring spacers, the heavy duty front bump extensions and the performance shocks.
