Fabtech 6 Inch 4 Link Lift Kit w/Dirt Logic SS Shocks – K2138DL

Fabtech

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2008–2015 Ford F-250 Super Duty and 2014 F-350 Super Duty
  • 6-inch 4-link system with Dirt Logic SS shocks and 4.0 coilovers
  • 1-inch ID stainless Uniball arms eliminate the upper ball joint
  • Tire fit of 295/70R17, 275/65R18 and 285/55R20
  • Factory aluminum suspension only

Description

Overview

The Fabtech K2138DL is a 6-inch 4-link lift with Dirt Logic SS shocks and 4.0 coilovers. It fits 2008–2015 Ford F-250 Super Duty and 2014 Ford F-350 Super Duty trucks. The arms replace the factory arms directly, and the 1-inch ID stainless American Uniball sits in the factory ball joint taper, removing the upper ball joint from the design.

The 4340 heat-treated Uniball pin fits without spindle changes, and the chromoly tubing adds stiffness over factory arms. Built-in additional caster helps alignment after a leveling kit. The system pairs with Dirt Logic 2.5 coilover shocks for more wheel travel and is for factory aluminum suspension trucks only.

Dirt Logic 2.5 coilover shocks are the matching shock type for increased wheel travel.

Key features

  • 6-inch lift, range 5 to 6.99 inches
  • Upper ball joint removed by the arm design
  • 1-inch ID stainless American Uniball
  • 4340 heat-treated Uniball pin
  • Chromoly tubing arms
  • Dirt Logic SS shocks and 4.0 coilovers

Choosing the right setup

A 4-link system controls axle position with four control arms, so the mounts and bushings work together to keep the axle centered. Pinion angle and driveshaft length become more important as the lift grows, and a shop may need to check them after installation. Coilover shocks sit at the same level as the arm, so their length and mounting points should be confirmed on the truck before the arms are installed.

Upgrades often replaced at the same time include the track bar, sway bar links and steering components, since they are affected by the new geometry. Inspect the Uniball pins for play and the chromoly arms for cracks or bent sections during routine service. Aluminum suspension trucks should be kept free of rust around the mounts.

Specifications

Brand Fabtech
Part number K2138DL
UPC 674866097025
Lift height 6 inches (range 5 to 6.99 inches)
Suspension type 4-link with coilovers
Uniball 1-inch ID stainless American
Tire and wheel fit 295/70R17 on 17×8, 275/65R18 on 18×8, 285/55R20 on 20×9; minor trimming
Shocks Dirt Logic SS shocks included

Vehicle fitment

It fits 2008–2015 Ford F-250 Super Duty and 2014 Ford F-350 Super Duty trucks.

AutoRide shocks, all-wheel drive and standard cab trucks are not covered. The F-350 fit applies to 2014 only, and 2014 models must have factory aluminum suspension. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Check the factory suspension for the aluminum or steel version before installing, since the kit only fits the aluminum type. The OEM wheel and tire cannot be used, so the tire and wheel sizes listed need to be matched.

What’s included

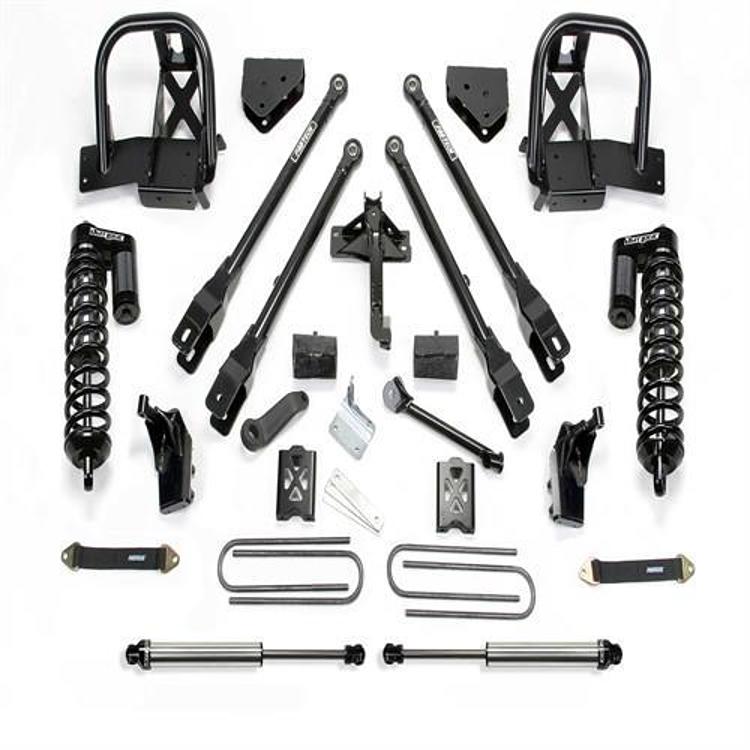

Four-link arms with Uniball pins, Dirt Logic SS shocks, 4.0 coilovers and the hardware for the kit.

SKU: FABK2138DL Category:

Specification

Shipping weight 453.80 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2008–2015Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty2014King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2138DL fit a 2011 F-250 Super Duty?

Yes, if the truck has factory aluminum suspension. The fitment covers 2008–2015 F-250 Super Duty trucks, so a 2011 model falls within those years.

Will the K2138DL work on an all-wheel drive truck?

No. The kit does not fit all-wheel drive trucks, and standard cab trucks are not covered either. Confirm your drivetrain and cab style before ordering.

Is the K2138DL the same as the K2120DL?

Both are 6-inch 4-link systems with Dirt Logic shocks for Super Duty trucks, and both are for factory aluminum suspension trucks. The K2138DL adds 4.0 coilovers to the package.

How often should 4-link arms be inspected?

Yes. Check the Uniball pins for play, inspect the chromoly arm welds and bushings, and confirm the hardware is tight after the first few drives. Repeat the check at regular service intervals.
