Overview
The Fabtech FTL5207 is a 1.5 inch front leveling kit with strut spacers for the 2015 to 2017 Ford F-150. It is finished in black and is a front lift only.
The kit is heavy duty and engineered to eliminate ball joint, tie rod and steering bind. It is built from 1/4 inch thick steel with high grade hardware and aircraft grade billet aluminum, and it carries a 5 year, 60,000 mile powertrain warranty.
Key features
- 1.5 inch front lift
- Strut spacers
- 1/4 inch thick steel with high grade hardware
- Aircraft grade billet aluminum
- Powder coated for corrosion resistance
- 5 year, 60,000 mile powertrain warranty
Strut spacers and daily driving
Strut spacers raise the front by sitting between the strut and its mount, so the factory strut assembly stays in place. This is a simple way to gain front height on a half-ton truck that sits low or carries a heavier load up front. The lift is modest, so most owners notice the difference mainly in how the front sits rather than in a large change to ride or handling.
Strut spacers change the angle of the lower control arms and the steering linkage, so the front end should be checked afterward. Tire size is the next thing to consider, since a larger tire can rub at full steering lock or on the inner fender. Look at the wheel backspace before buying new wheels, and keep the old parts so you can compare fitment during installation.
- Check the strut mounts for wear before installing
- Inspect ball joints and tie rod ends
- Confirm tire clearance at full lock
- Get an alignment once the work is complete
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTL5207 |
| UPC | 674866090927 |
| Lift | 1.5 inches, front |
| Front lift method | Strut spacers |
| Finish | Black, powder coated |
| Warranty | 5 year, 60,000 mile powertrain |
| Wheel backspace | 5 1/2 inch |
The 285/70R17 option uses a 5 1/2 inch backspace on 17 x 9 wheels with minor trimming. The 2015 to 2017 F-150 is covered, so confirm your year and trim before ordering.
The kit is a strut spacer kit with a black powder coated finish.
Vehicle fitment
It fits the 2015-2017 Ford F-150 across the covered King Ranch, Lariat, Limited, Platinum, SSV, XL and XLT trim levels. Verify your year and trim sit within the covered range before ordering.
Installation notes
Minor trimming is needed for the tire and wheel combinations, and an alignment is required afterward.

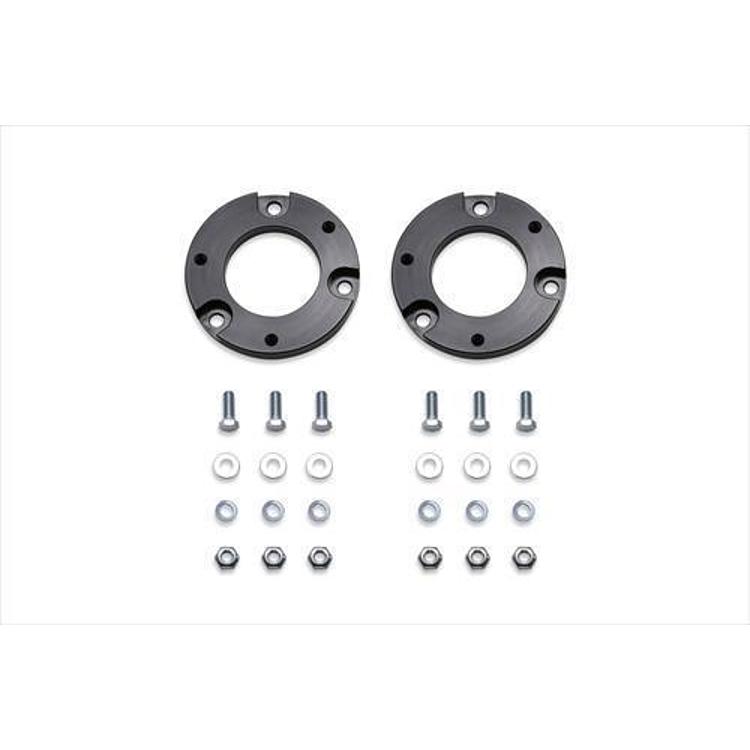

What’s included
The kit is a front strut spacer leveling kit. Check the included hardware against your installation steps before starting.
