Overview

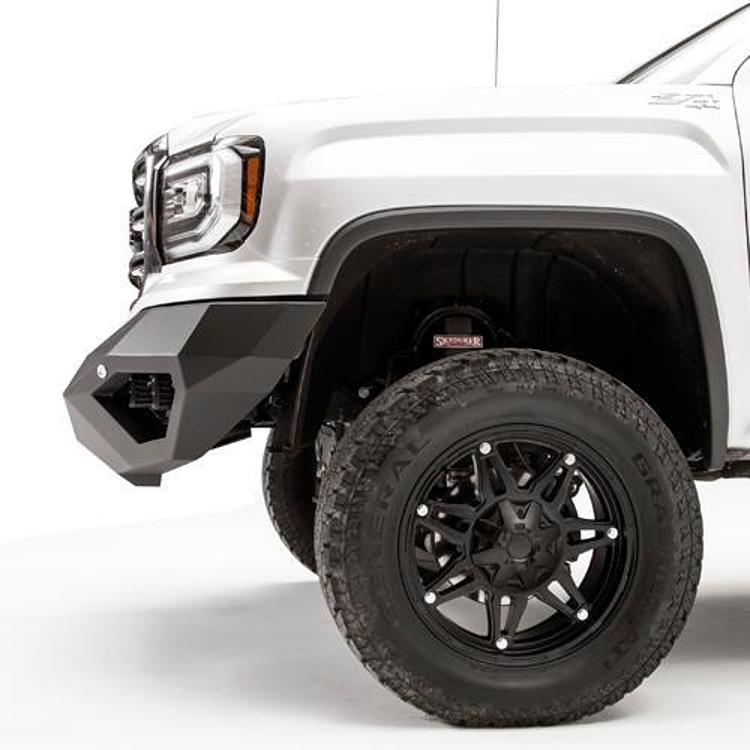

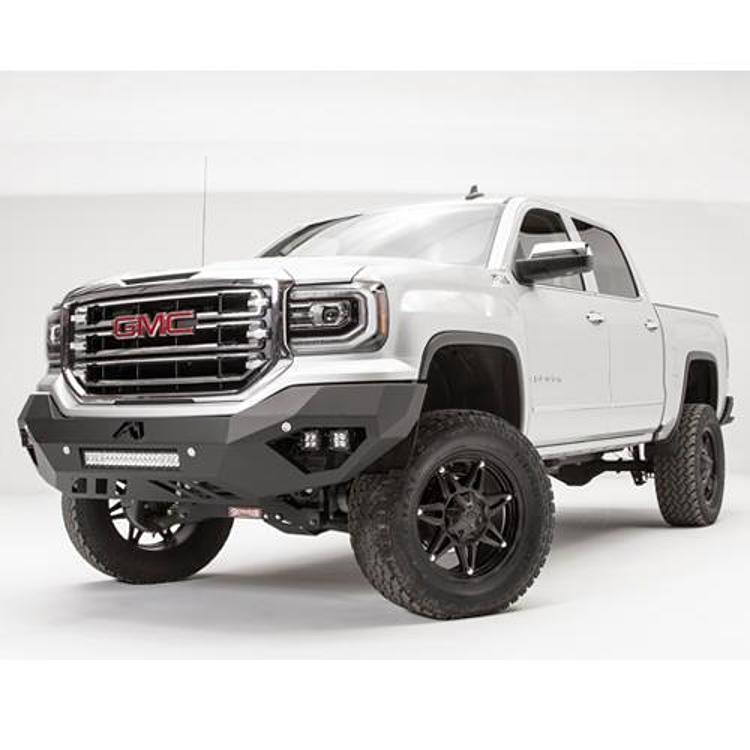

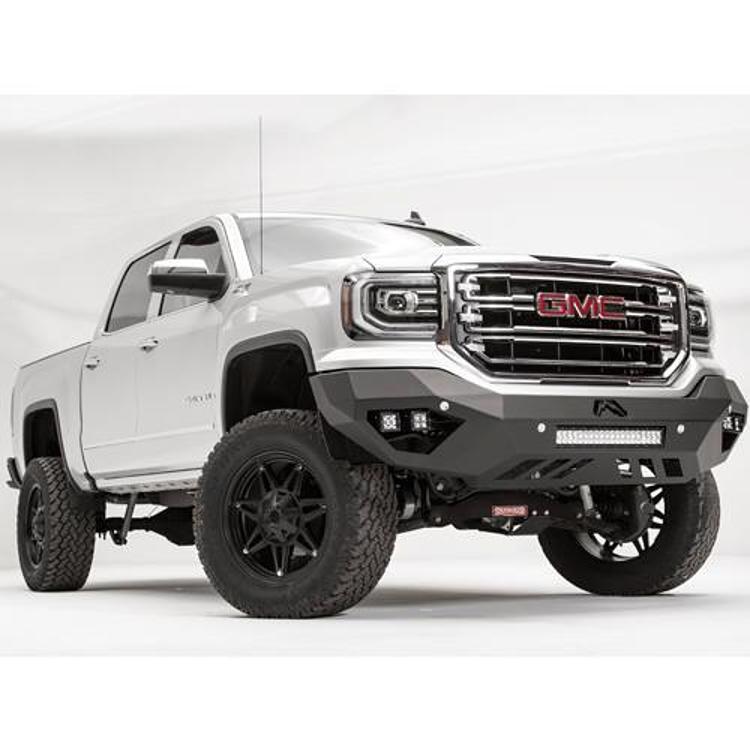

The Fab Fours Vengeance Series front bumper (part number GS16-D3951-1) is a bolt-on steel replacement bumper for the 2016–2018 GMC Sierra 1500. Vengeance is Fab Fours’ lightweight bumper line: it sits “high and tight” to the truck’s front contours for a clean, aggressive look, keeps the factory parking sensors working, and adds a winch mount, recovery D-ring mounts and provisions for LED lighting.
The front bumper comes in two versions: one without a guard, about 65 lb, and one with a pre-runner guard, about 75 lb. Lower cutouts keep air flowing to the radiator, and the steel has a two-stage black powder coat finish.
Key features
- Lightweight steel construction compared with full-width plate bumpers
- “High and tight” profile that follows the Sierra’s front-end contours
- Factory parking-sensor compatible
- Integrated winch mount and D-ring mounts for recovery points

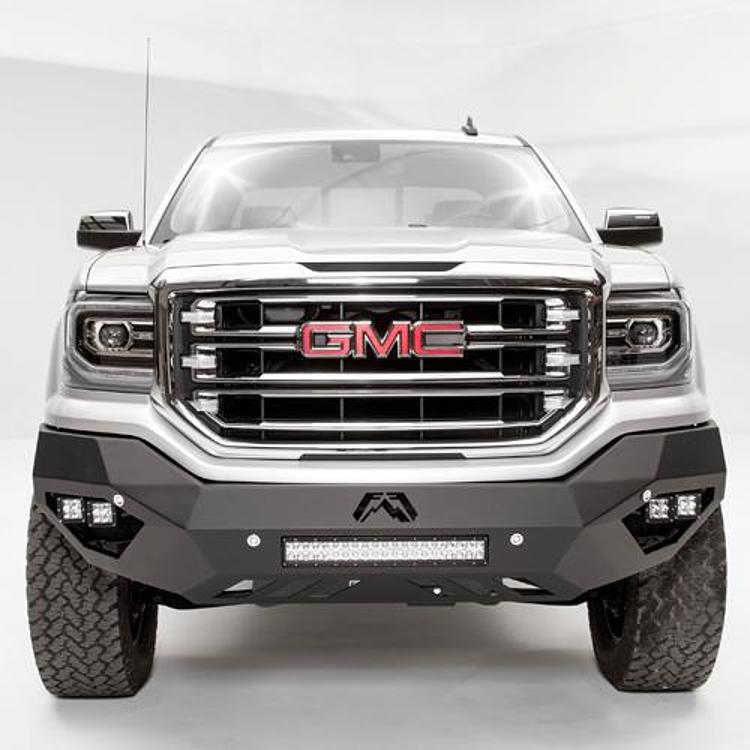

- Center cutout for a 20-inch LED light bar (designed around Rigid Industries 20-inch bars)
- Side mounts for two 2×2-inch cube LED lights
- Lower cutouts for increased airflow
- Two-stage black powder coat finish
- Direct-fit, bolt-on installation with frame-mount brackets included
Planning lights and winch
Light bars and cube lights add weight, wiring and a higher point of contact with brush, so plan their location before drilling or routing wire. The center cutout is sized for a 20-inch bar, and the side mounts take two 2×2-inch cubes. Use a fused, switched power source and route the harness away from the sensors and the radiator. Check that the bar sits clear of the hood’s closing path and the grille.
Winch planning follows the same logic. The winch adds weight at the front, so the suspension, tires and brakes carry extra load on steep grades. Keep the cable and hook stored when not in use, and check the winch’s electrical connections and battery cable after rough trails. Lift and alignment work goes faster with two people, and the bumper should be fully supported before the last bolts are tightened. Check the frame brackets after the first few trail runs.
Specifications
| Brand | Fab Fours |
|---|---|
| Series | Vengeance |
| Part number | GS16-D3951-1 |
| UPC | 700007784061 |
| Position | Front |
| Material | Steel |
| Finish | Two-stage black powder coat |
| Bumper weight (Fab Fours) | About 65 lb without guard / 75 lb with pre-runner guard |
| Winch mount | Yes |
| D-ring mounts | Yes |
| Light provisions | One 20-inch LED light bar (center) and two 2×2-inch cube lights |
| Parking sensors | Compatible; sensor mounts are positioned for lifted trucks |
| Installation | Bolt-on, direct fit; frame brackets included |
| Fitment | 2016–2018 GMC Sierra 1500 |
Vehicle fitment
The bumper fits these trucks:
- 2016 GMC Sierra 1500: Base, SLE, SLT, Denali
- 2017 GMC Sierra 1500: Base, SLE, SLT, Denali
- 2018 GMC Sierra 1500: Base, SLE, SLT, Denali
This bumper is for the GMC Sierra 1500 only. It does not fit the Chevrolet Silverado 1500, the heavy-duty Sierra 2500/3500 or the redesigned 2019-and-newer Sierra 1500. Confirm your truck’s year, model and trim before ordering.
Installation notes
The Vengeance bumper bolts to the frame using the brackets supplied with it; no welding is required. The factory bumper comes off, and the parking sensors move into the sensor provisions on the new bumper. The sensor positions are set for trucks with a suspension lift. On a truck at stock ride height the sensor mounts may need adjustment and extra care to read correctly.
- Plan on two people to lift and align the bumper safely.
- Tighten all fasteners to the torque values in Fab Fours’ instructions, and re-check them after the first few hundred miles or your first trail run.
- If you add a winch, choose one whose dimensions and mounting pattern suit the winch mount, and wire and mount it carefully. A winch adds noticeable weight to the front end.
- Auxiliary LED lights often have road-use restrictions; check your local regulations.
What’s included
- Vengeance Series front bumper with integrated winch mount, D-ring mounts and light mounts
- Frame mounting brackets
Not included: LED light bar, cube lights, winch, and recovery shackles. D-rings are not included.
