Overview

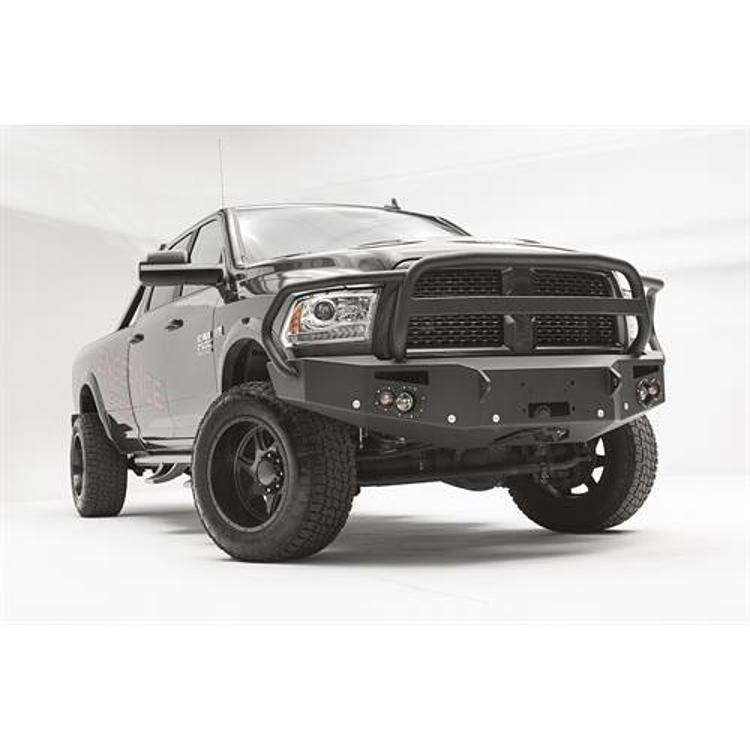

The Fab Fours DR16-C4050-1 is a Premium winch front bumper for 2016 to 2018 Ram 2500 and 3500 trucks, in two-stage black powder coat with a winch mount for winches up to 16,500 lb.
Fab Fours says its Premium winch bumper focuses on strength and durability and is designed to give far more tire clearance, which eliminates rubbing. It comes with the company’s integrated fog and turn lights in injection molded housings, and 3/4-inch D-ring mounts that hold a 7/8-inch shackle.
Key features
- Winch ready: accepts winches up to 16,500 lb
- 3/4-inch thick D-ring mounts that hold up to a 7/8-inch shackle
- Two-piece mounting system with adjustability for a custom fit
- Injection molded light housings
- 90mm fog lights and 60mm turn indicator lights included
- Two-stage black powder coat
- 3/16-inch steel construction
- Made in the USA
Winch and recovery setup
A heavy-duty winch bumper changes how the front of the truck handles load. The winch mount carries the full pull force, so the bolts, brackets and frame attachments should be inspected after every significant recovery. Keep the winch rope or cable in good condition, since frayed line can fail under load.
Think about the whole recovery setup. The shackles, recovery straps and D-ring mounts should work together at matching ratings, so no single part becomes the weak link. Keep the winch’s wiring short and fused, route it away from heat and sharp edges, and keep the battery connections clean. Weight matters too, so plan carefully before adding accessories to the bumper.
- Match shackles and straps to the winch
- Inspect winch line for fraying
- Keep battery terminals clean and tight
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | DR16-C4050-1 |
| UPC | 5810112776 |
| Type | Premium winch front bumper |
| Position | Front |
| Width | Full |
| Material | 3/16-inch steel |
| Finish | Two-stage black powder coat |
| Fit type | Direct fit |
| Winch mount | Included (up to 16,500 lb winches) |
| D-ring mounts | Included, 3/4-inch thick, up to 7/8-inch shackle |
| Lights | 90mm fog and 60mm turn indicator lights included |
| Weight | 230-270 lb |
Vehicle fitment
It fits the 2016 to 2018 Ram 2500 and the 2016 to 2018 Ram 3500.
The Ram 1500 and heavy-duty trucks from 2010 to 2015 are outside its range. Check your truck’s year, model and trim against this part before ordering.
Installation notes
The two-piece mounting system is adjustable, so the fit can be adjusted on the truck. Add a winch of 16,500 lb or smaller and wire it with a fused feed.
What’s included
- Premium winch front bumper
- Winch mount
- 3/4-inch D-ring mounts
- 90mm fog lights and 60mm turn indicator lights
Not included: The winch, winch wiring and shackles.
