Dana Spicer Dana 35 Rear 3.07 Ratio Ring and Pinion Kit – 707244-1X

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer ring and pinion kit for the Dana 35 rear axle
  • Gear ratio 3.07, title part 707244-1X
  • For use with a 3.31 and down carrier
  • Pinion bearings, seal and shim packs included

Description

Overview

The Dana Spicer 707244-1X is a 3.07 ratio ring and pinion kit for the rear Dana 35 axle. The pinion turns 3.07 times for each ring gear revolution, a numerically low ratio that keeps engine speed down at highway speed.

These ring and pinion sets use the same gear design as the original Dana axle gears and come in a range of performance and replacement ratios. This kit is for a carrier rated 3.31 and down. Confirm the axle and carrier on your truck before ordering.

Key features

  • 3.07 gear ratio for the rear Dana 35 axle
  • For use with a 3.31 and down carrier
  • Includes pinion bearings and pinion seal
  • Includes pinion shim pack, pinion preload shim pack or crush sleeve, and pinion nut
  • Includes differential shim pack and ring gear bolts

Pinion setup and preload basics

Pinion depth and preload decide how the gears mesh and how long the bearings last. Too little preload lets the pinion move under load, while too much heats the bearings and wears the teeth early. Setup is done by measuring, adjusting shims and checking the torque on the pinion nut, which is why it suits a shop with the right tools.

On an older Dana 35, the axle bearings and seals are often inspected during a gear swap. Leaking seals, worn wheel bearings or a loose carrier cover should be addressed while the axle is open. Replace parts that show heat marks or feel rough when turned by hand.

  • Use a crush sleeve only once and replace it if the pinion is reset
  • Keep shim packs organized by position
  • Check carrier bolts for proper torque after break-in

Specifications

Brand Dana Spicer
Part number 707244-1X
UPC 23913127992
Axle type Dana 35
Axle location Rear
Carrier requirement 3.31 and down
Gear ratio 3.07
Axle manufacturer Dana

Vehicle fitment

The kit is matched to the rear Dana 35 axle and a carrier rated 3.31 and down. Confirm the axle and carrier on your vehicle before ordering. Axle types outside the Dana 35 need their own matching kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A complete install also requires the D/S706016X differential bearing kit, which is sold separately. Pinion depth and preload are set with the included shim pack or crush sleeve, so a gear shop with setup tools is the usual installer.

What’s included

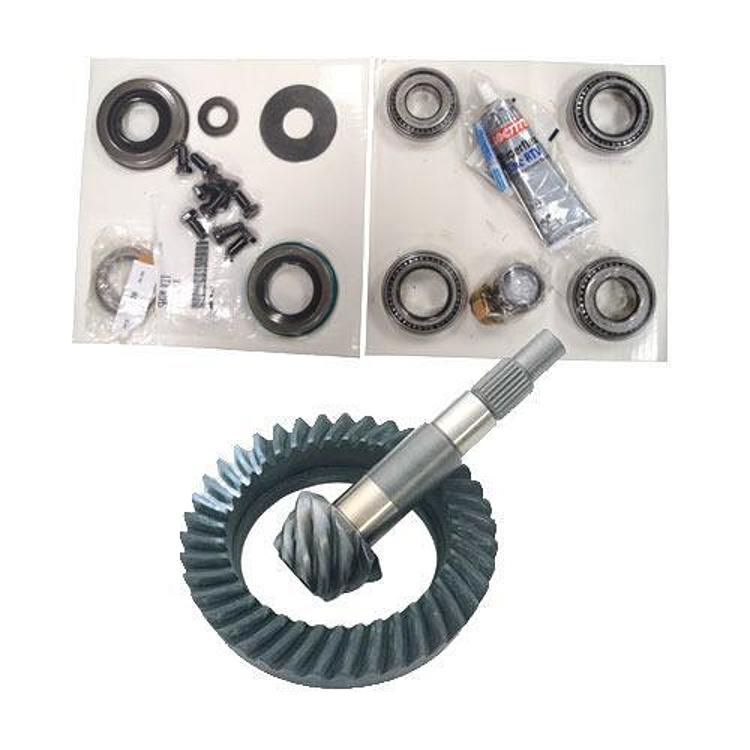

Ring and pinion kit with pinion bearings, pinion seal, pinion shim pack, pinion preload shim pack or crush sleeve, pinion nut, differential shim pack and ring gear bolts.

Not included: The differential bearing kit D/S706016X is required for a complete install and is sold separately.

SKU: D/S707244-1X Categories: ,

Specification

Shipping weight 16.55 lbs
Package dimensions 8.50 × 8.30 × 5.50 in
brands

Questions & Answers

Does the Dana Spicer 707244-1X fit a Dana 35 rear axle?

It is made for the rear Dana 35 axle with a carrier rated 3.31 and down. No vehicles are named, so confirm your axle and carrier before ordering.

What is needed to finish the install?

The D/S706016X differential bearing kit is required for a complete install. It is sold separately, so order it together with this kit before starting the job.

Does the kit include pinion bearings?

Yes. It includes pinion bearings, a pinion seal, a pinion shim pack, a pinion preload shim pack or crush sleeve, a pinion nut, a differential shim pack and ring gear bolts. Check the contents against your installation before starting.

How do you know a carrier is rated for this kit?

Check the carrier rating on your axle before ordering. The kit is made for a carrier rated 3.31 and down, so a higher rated carrier needs a different ratio set. A gear shop can confirm the rating if you are unsure.
