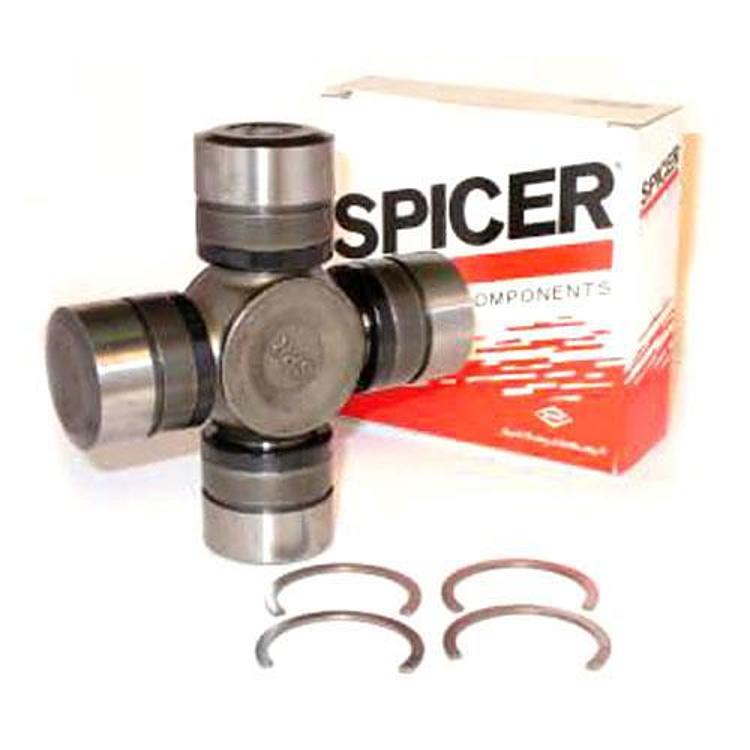

Overview
It is a heavy duty U-joint for the AAM 9.25 front axle, built with a forged cross and inside and outside snap rings. It is an OEM replacement with improved seals for longer service.
It has no lube channel and is designed for high performance engines and larger tires.
Key features
- Forged cross for heavy duty use
- Improved perma-lube seals
- Inside and outside snap rings
- It is an OEM replacement, rated for highway use.
- No lube channel and not lubeable
Before installing a sealed U-joint
A sealed U-joint with a forged cross is meant to be installed once and left alone, with its seals doing the work that grease would otherwise handle. The cross carries the load between the yokes, so its bearing surfaces and snap ring grooves need to be clean and undamaged before the joint goes in. Proper preparation matters more with a joint that cannot be regreased later.
Measure the cup size and snap ring spacing on the old joint and compare them with the new one before assembly. Inspect the yokes for wear or cracks, and make sure the caps seat evenly. Torque the retainers to the axle service specification, and check the joint for free movement after assembly. Because there is no grease path, a joint that starts binding or making noise should be replaced rather than serviced.
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 5006813 |
| UPC | 23913121204 |
| Axle location | Front |
| Axle | AAM 9.25 |
| Cup size | 1.375in |
| Snap ring to snap ring | 3.000in |
| Cap to cap | 4.200in |
| Snap rings | Inside and outside |
| Lubeable | No |
| Highway rated | Yes |
| Fitment basis | Universal fit |
Vehicle fitment
Dana Spicer assigns this U-joint to the AAM 9.25 front axle with universal fit. No vehicle years or models are named, so check cup size and snap ring spacing against the joint you are replacing.
Confirm your vehicle’s year, model and trim before ordering. Check the cup size and snap ring spacing against the joint being replaced.
Installation notes
Because the joint is not lubeable and has no lube channel, plan on it running without regreasing through a fitting. Check the 1.375in cup size and 3.000in snap ring spacing before installing.
What’s included
Check the package contents against your installation before starting.
