Overview

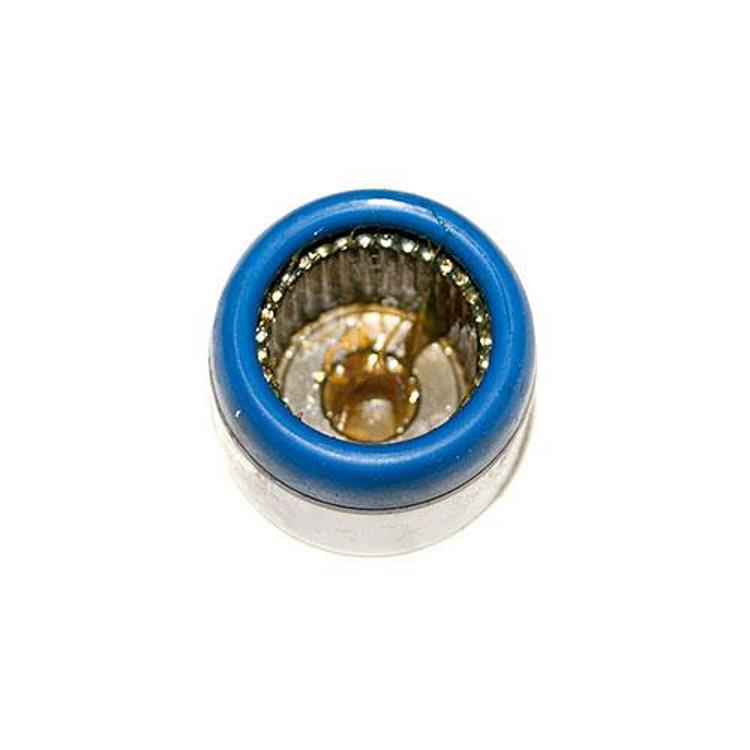

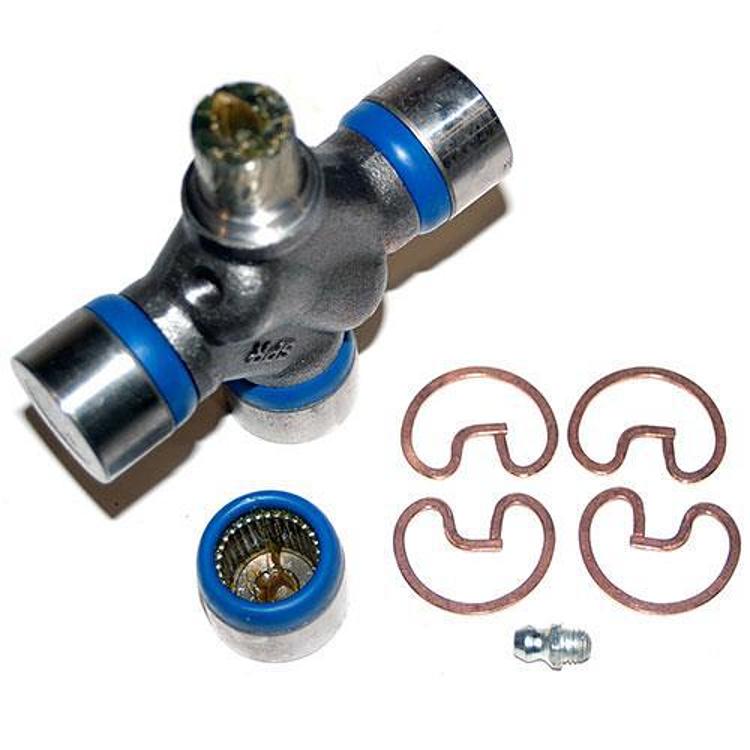

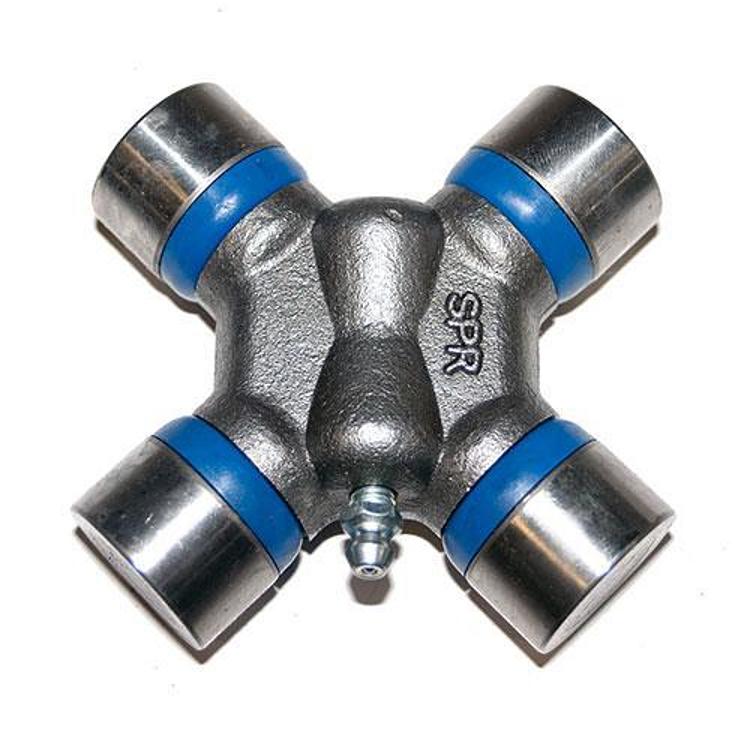

The Dana Spicer 5-213X is a lubeable 1330 series U-joint with a forged cross, an outside snap ring and an OEM replacement design. Its cup size is 1.062in and its outside to outside measurement is 3.6250in.
It is lubeable, so grease it after installation. It is built with a forged cross, an outside snap ring and an OEM replacement design.
Key features
- Lubeable 1330 series design
- Forged cross
- OEM replacement
- Outside snap ring
- Outside to outside measurement of 3.6250in
Lubrication and joint life
A lubeable U-joint keeps its needle bearings working by carrying grease to the cross and cups. Grease it after installation and keep the fittings clean so new grease can push out dirt and water. Driving through mud, water or dust shortens grease life, so check the seals more often in those conditions.
A 1330 series joint should be inspected alongside the yokes and shaft it connects. A worn yoke or a bent shaft can damage a new joint quickly, even when the joint is greased correctly. Check the snap ring seats and the driveline angles after installation, and recheck the joint for play after the first drives.
- Grease the joint after installation
- Clean the fittings before pumping grease
- Inspect yokes and shafts when replacing the joint
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 5-213X |
| UPC | 23913121037 |
| Series | 1330 |
| Cup size | 1.062in |
| Outside to outside | 3.6250 in |
| Lubeable | Yes |
| Cross | Forged |
| Snap ring | Outside |
Vehicle fitment
Fitment is not tied to any vehicle here: the joint carries a universal fit label and a 1330 series designation, so measure it against the joint you are replacing.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One 1330 series U-joint, as titled.
Not included: the yokes and drive shaft it connects.
