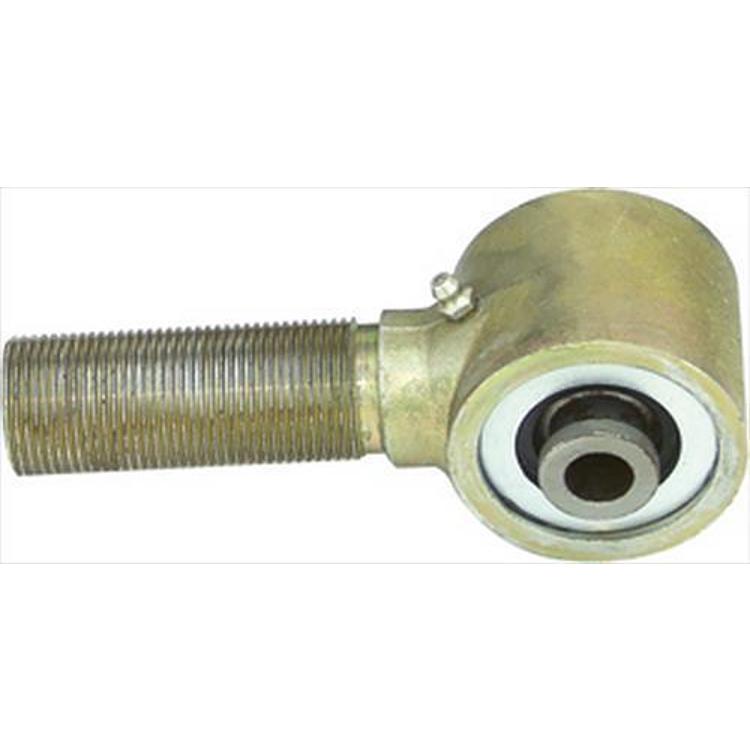

Currie 2.5 Inch Forged Johnny Joint with 1-1/4 Inch RH Threaded Stud – CE-9114

Currie

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9114 forged Johnny Joint rod end with a 1-1/4 inch right-hand threaded stud
  • 2.625 inch mounting width and 9/16 inch thru-bolt hole
  • Urethane bushings, externally greasable through a zerk fitting, fully rebuildable
  • Universal fit for Currie adjustable lower arms and custom builds

Description

Overview

The Currie CE-9114 is a 2-1/2 inch forged Johnny Joint rod end with a 1-1/4 inch right-hand threaded stud, made for universal builds and for Currie adjustable lower control arms. It comes fully assembled with Currie’s standard Johnny Joint internals, including urethane bushings around the inner ball, so the joint is ready to fit to an arm once you have chosen the mounting point.

The forged steel body has a 2.625 inch mounting width and a 9/16 inch thru-bolt hole. Currie keeps jam nuts for these units on hand, and 9/16 inch greasable thru bolts are sold separately for a greased pin through the joint. Because no vehicle is named, it is a builder’s component rather than a bolt-on part.

Key features

  • Forged steel rod end with a 2-1/2 inch outside diameter
  • Right-hand 1-1/4 inch-12 threaded stud for threading into an arm
  • Urethane bushings around Currie’s standard Johnny Joint internals
  • Externally greasable through a zerk fitting
  • Fully rebuildable, so the internals can be serviced
  • Gold zinc plated finish
  • Usable in Currie adjustable lower control arms and in universal builds

Matching the joint to your arm

A Johnny Joint works as a pivot between the control arm and the axle or frame, so the stud, thread direction and mounting width have to match the arm it goes into. Start by measuring the arm’s bore and the stud thread before buying, since a mismatch means the joint cannot be threaded in fully or will sit off line. The joint is a load-bearing link, so the match matters as much as the size.

Choose a joint with an externally greasable design if the arm will see regular articulation, because grease keeps the internals working and pushes out grit. Joints in this class are often replaced together with the thru bolts and jam nuts, so check those parts when you service the arm. Look for play at the stud, cracking around the bushing, or stiff movement as signs that the joint needs attention.

Specifications

Brand Currie
Part number CE-9114
UPC 70000379009
Joint type Forged Johnny Joint rod end, finished joint
Outside diameter 2-1/2 inch
Mounting width 2.625 inch
Thru-bolt hole 9/16 inch
Threaded stud 1-1/4 inch-12, right hand
Bushings Urethane
Construction Forged steel
Finish Gold zinc plating
Serviceability Fully rebuildable, externally greasable

Vehicle fitment

It is a universal rod end rather than a vehicle bracket, usable in any Currie adjustable lower control arm or in a custom build.

Because this is a rod end rather than a vehicle bracket, match the 1-1/4 inch-12 right-hand stud, 2.625 inch mounting width and 9/16 inch bolt hole to your arm before buying. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One fully assembled Johnny Joint rod end with a 1-1/4 inch right-hand threaded stud and Currie’s standard internals.

Not included: 9/16 inch greasable thru bolts, which are available separately.

SKU: CURCE-9114 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 6.40 × 4.60 × 4.40 in
brands

Questions & Answers

Will the Currie CE-9114 fit my vehicle?

It is a universal rod end rather than a vehicle bracket, so it fits any Currie adjustable lower control arm or custom build that matches its stud and hole. Check the stud size, mounting width and bolt hole against your arm before ordering.

What thread does the CE-9114 stud use?

The stud is 1-1/4 inch-12 with right-hand threads. Check the thread direction on your arm, because a left-hand arm needs a left-hand stud.

Can the CE-9114 be greased and rebuilt?

Yes. The joint is externally greasable through a zerk fitting and is fully rebuildable. Currie also keeps jam nuts for these units on hand, and 9/16 inch greasable thru bolts are available separately.

How often should a Johnny Joint be greased?

Grease it at each service interval and after any water crossings or long trail days. Regular greasing keeps the bushing moving freely and flushes out dirt that causes wear.

Can the internals of this joint be rebuilt?

Yes. The joint is fully rebuildable, so worn internals can be serviced rather than replacing the whole rod end. Check the stud and bushing condition during the rebuild, since a worn stud or cracked housing still needs replacing.
