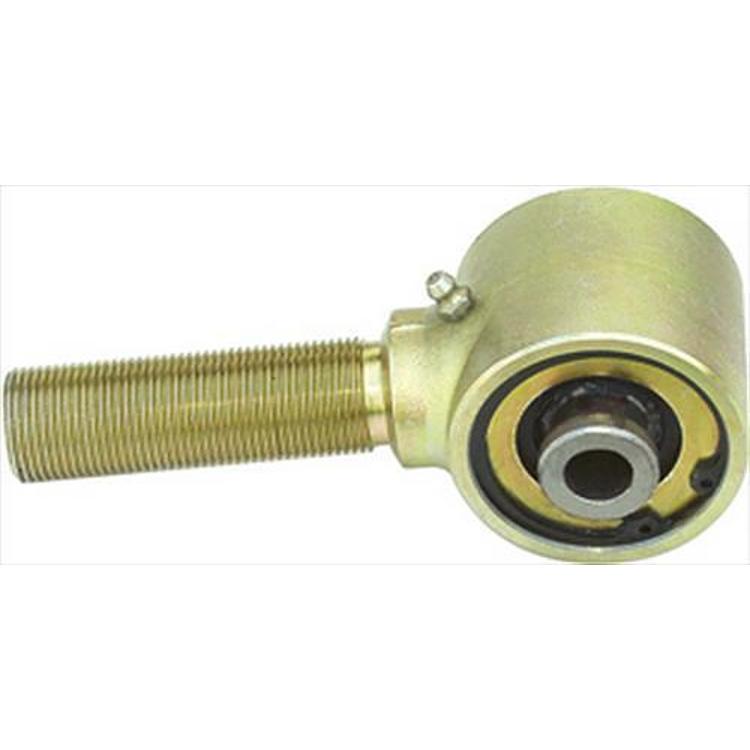

Currie 2.5 Inch Forged Johnny Joint with 1 Inch RH Threaded Stud – CE-9113

Currie

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9113 forged Johnny Joint with a 1 inch right-hand threaded stud
  • 2 1/2 inch outside diameter with 2.625 inch mounting width
  • 9/16 inch thru-bolt hole and 3 1/4 inches of 1-14 right-hand threads
  • Urethane bushings, forged steel construction, externally greased
  • Universal fit for adjustable upper control arms and custom builds

Description

Overview

The Currie CE-9113 is a 2 1/2-inch forged Johnny Joint with a 1-inch right-hand threaded stud, designed for universal fit in Currie adjustable upper control arms and in custom arms builders make themselves. It is not matched to one vehicle, so the stud size, mounting width and thread direction decide whether it suits a given arm.

This is a finished, serviceable joint. Its forged steel body houses urethane bushings, and grease reaches the joint through the outer shell. The stud has 3 1/4 inches of 1-14 right-hand threads, and the joint carries a 2.625 inch mounting width with a 9/16 inch thru-bolt hole. The right-hand stud suits arms built for that thread, and the joint is supplied as one unit with its bushings.

Key features

  • Forged steel construction
  • Urethane bushings in a serviceable finished joint
  • Externally greased through the outer shell
  • 1 inch right-hand threaded stud with 3 1/4 inches of 1-14 threads
  • 2.625 inch mounting width and 9/16 inch thru-bolt hole
  • Universal fit for adjustable and custom upper control arms

Adjustable arms and joint size

Joint size and stud diameter are the main things that decide whether a forged Johnny Joint will work in an arm. A larger outside diameter needs a matching bore, and a stud that is too thick or thin will not seat correctly in the sleeve. Because the joint is universal fit, measure the bore and stud fit on the arm before ordering, and keep a note of the arm’s built length so the joint can be set to the right position.

Once the joint is in, inspect it at regular intervals for play, dry or cracked bushings and damage to the outer shell. Grease through the shell whenever the arm is serviced, and check the jam nut for tightness after the first few drives. Changes in arm length, angle or joint placement change axle movement, so set the arm geometry deliberately and recheck it after any adjustment.

Specifications

Brand Currie
Part number CE-9113
UPC 70000352691
Joint type Forged Johnny Joint, finished, serviceable
Thread direction Right hand
Threaded stud 1 inch, 3 1/4 inches of 1-14 threads
Outside diameter 2 1/2 inch
Mounting width 2.625 inch
Thru-bolt hole 9/16 inch
Bushings Urethane
Material Forged steel
Finish Gold zinc plating
Lubrication Externally greased through the outer shell
Fitment Universal fit

Vehicle fitment

It is universal fit and is not matched to a particular year, make or model. It is intended for Currie adjustable upper control arms and for custom-built arms. Check that the 1 inch right-hand stud and 2.625 inch mounting width match your arm before assembly.

Because no vehicle is named, the stud and bore on your arm matter more than any vehicle. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The right-hand stud tightens in the normal direction, but confirm the thread direction on your arm before threading the joint in. Check full thread engagement, then grease the joint through the outer shell before first use. Support the arm while assembling it so the stud does not cross-thread.

What’s included

One Currie CE-9113 forged Johnny Joint with the 1 inch right-hand threaded stud, urethane bushings and gold zinc finish described above.

Not included: Jam nuts and the arm itself are sold separately and are not included.

SKU: CURCE-9113 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 6.50 × 4.50 × 3.50 in
brands

Questions & Answers

Is the Currie CE-9113 a right-hand thread?

Yes. It has a right-hand threaded stud, 1 inch in diameter with 3 1/4 inches of 1-14 right-hand threads. The CE-9113L is the left-hand version, so check the part number before assembling.

What mounting width does the CE-9113 have?

The joint has a 2.625 inch mounting width and a 9/16 inch thru-bolt hole. Its outside diameter is 2 1/2 inches. Measure your arm's bore to confirm the joint sits correctly before assembly.

Does the CE-9113 fit a specific Jeep?

No vehicle is named. It is universal fit for adjustable upper control arms and custom arms built for universal applications. Confirm stud size and mounting width against your arm.

Can the joint be greased?

Yes. It is externally greased through the outer shell and is a serviceable joint with urethane bushings, so regular greasing is part of upkeep.

When should an upper control arm joint be replaced?

Replace the joint when it shows play at the ball, when bushings are torn or dry and cannot be regreased, or when the outer shell is cracked or bent. Clunking over bumps and uneven tire wear can also point to a worn joint, so inspect it before the arm itself is damaged.
