Currie Narrow Forged Johnny Joint – CE-9112N75L-13

Currie

Shop Currie Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie Narrow Forged Johnny Joint, part number CE-9112N75L-13
  • 40 degrees of overall articulation travel
  • Universal fit; no vehicle years, models or chassis codes named

Description

Overview

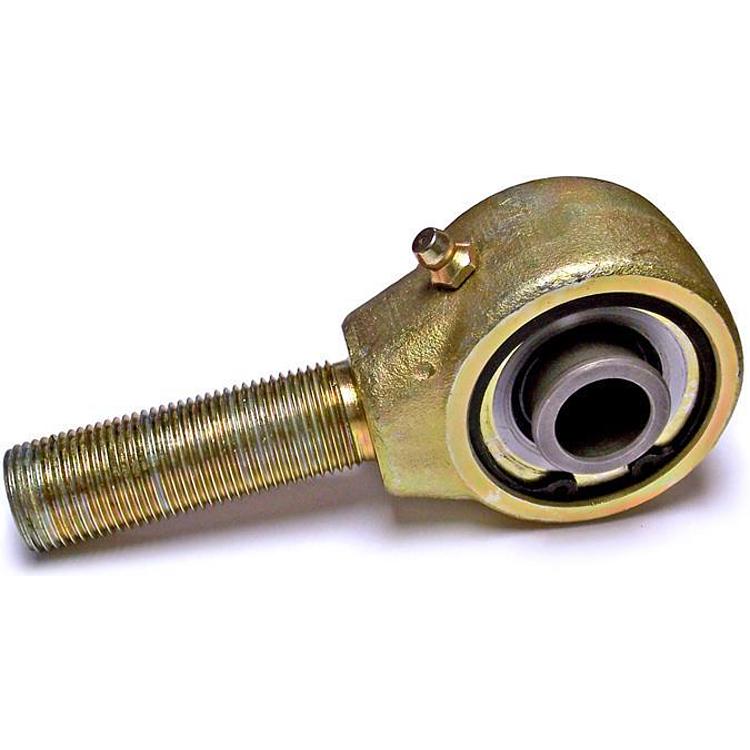

Currie’s narrow forged Johnny Joint CE-9112N75L-13 is a forged rod end with a narrow body and 40 degrees of overall articulation travel. It is a Currie exclusive design and is universal fit.

Key features

  • Narrow forged body
  • Forged construction for the joint
  • 40 degrees of overall articulation
  • Currie exclusive design

Narrow joints on tight links

Narrow body joints suit brackets with limited side clearance, which is common on compact link mounts and tight frame pockets. The narrow profile keeps the joint from catching on surrounding parts, but it also concentrates load into a smaller housing, so mounting alignment matters more than it does with a wider joint.

Before installing one, confirm the threaded shank engages the link fully and that the jam nut seats square. Check that the pivot moves freely through its arc without contacting the bracket. Inspect the joint after the first few drives, since settling bolts and new threads can change the angle slightly.

  • Confirm the shank threads engage fully
  • Check the arc against the bracket at both ends of travel
  • Re-check jam nuts after break-in

Specifications

Brand Currie
Part number CE-9112N75L-13
UPC 70000694251
Articulation travel 40 degrees, overall
Style Narrow, forged

Vehicle fitment

Universal fit applies, and no specific vehicle model, year or chassis code is tied to this joint. Confirm your vehicle’s year, model and trim, then check the joint against your application before ordering.

Confirm your vehicle’s year, model and trim before ordering.

SKU: CURCE-9112N75L-13 Category:

Specification

Shipping weight 1.50 lbs
Package dimensions 4.00 × 4.00 × 4.00 in
brands

Questions & Answers

Is CE-9112N75L-13 the same as the other narrow forged joints?

The part number differs, so treat CE-9112N75L-13 as its own item. Its stated details are a forged narrow style body, 40 degrees of overall articulation travel and universal fit, with UPC 70000694251.

What articulation does the CE-9112N75L-13 provide?

It provides 40 degrees of overall articulation travel, which is the travel figure for this joint. Confirm the load requirements of your application before ordering.

Does this Johnny joint fit a Jeep Wrangler?

Not confirmed. The joint is universal fit, and no Wrangler, year or chassis code applies to it. Check the joint against your steering or suspension layout before buying.

How do I tell when a Johnny joint needs replacing?

Replace the joint when it shows sideways play at the pivot, a cracked or bent housing, or a torn boot that lets grit in. A joint that clicks, binds or feels loose through its arc should come out, because it is difficult to repair in the field.
