Overview

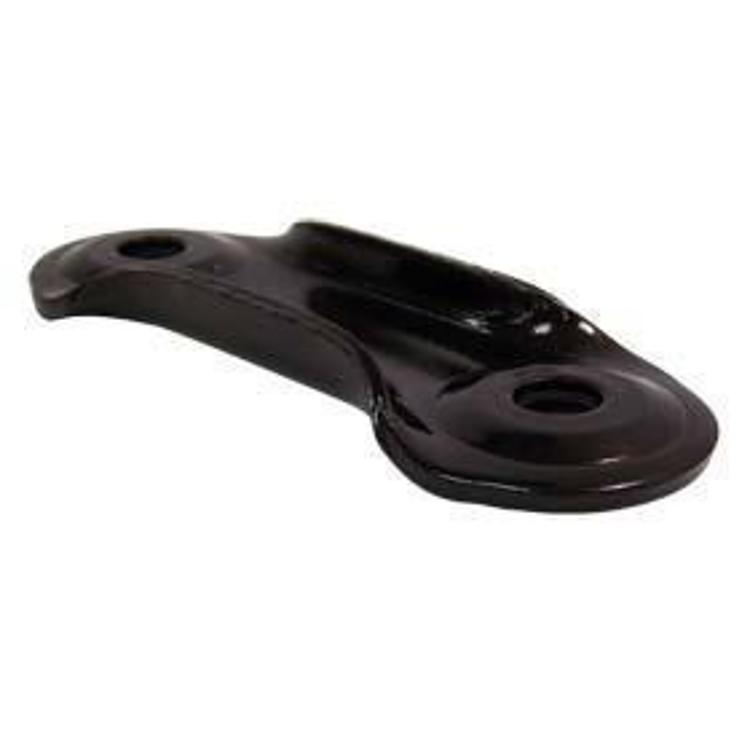

The Crown Automotive 52040415 is a shackle side plate for leaf spring shackle assemblies on the 1987–1995 Jeep Wrangler (YJ). It can be used at the front or rear, and it is sold individually.
The plate is a direct fit for the 1987–1995 Jeep Wrangler YJ. Each plate is sold on its own, so buy one for each position you need to replace.
Key features
- Front or rear application
- Sold individually
- Direct fit for the 1987–1995 Jeep Wrangler (YJ) per the manufacturer list
- Replacement part for Jeep vehicles, part number 52040415
Side plates and shackle wear
A side plate holds the shackle links together and carries load when the leaf spring moves. Over time the plate can bend, crack or wear where the bolts pass through it, and the shackle may start to rattle or drift out of alignment.
When replacing a plate, check the shackle pin, bushings and mounting bolts at the same time. A plate that fits loosely can transfer stress to the rest of the assembly. Make sure both sides of the shackle are matched so the spring stays square in the hanger.
- Inspect the plate for cracks around bolt holes
- Check the shackle pin for wear or looseness
- Replace both plates when one side is worn
- Confirm the spring and hanger are aligned after installation
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 52040415 |
| UPC | 848399015072 |
| Position | Front or rear |
| Sales unit | Sold individually |
| Fitment type | Direct fit |
Vehicle fitment
Crown Automotive’s manufacturer fitment list covers the 1987–1995 Jeep Wrangler (YJ) in the Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.
Later Wrangler TJ, LJ and JK models are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One shackle side plate is sold per unit. Other shackle kit components are not included with the plate.
