Currie Rear Boomerang Shackles – CE-9081

Currie

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9081 rear boomerang shackles for 1987-1995 Jeep Wrangler YJ
  • Boomerang shape for articulation and added rear spring travel
  • 1/4 inch thick steel side plates with a bolt-in center brace
  • Grade 8, 1/2 inch greasable bolts and urethane bushings
  • Supplied as a pair

Description

Overview

The Currie CE-9081 is a pair of rear boomerang shackles for 1987-1995 Jeep Wrangler YJ models. The boomerang shape lets the back eye of the rear leaf spring articulate behind the back end of the frame rail, which Currie says increases rear spring travel.

Each shackle is built with 1/4 inch thick steel side plates, Energy Suspension ‘Tough 88’ fluted urethane bushings and heavy duty greasable bolts. The bolts have zerk fittings on their heads for greasing the bushings, and a bolt-in center brace adds rigidity. The finish is corrosion proof gold zinc.

Key features

  • Boomerang shape for articulation and added rear spring travel
  • 1/4 inch thick steel side plates
  • Energy Suspension ‘Tough 88’ fluted urethane bushings
  • Grade 8, 1/2 inch greasable bolts with zerk fittings
  • Bolt-in center brace for added rigidity
  • Corrosion proof gold zinc finish

Clearance and driveline

A boomerang shackle changes where the rear spring pivots, so it changes the angle the axle moves through. On a YJ that often means more droop and articulation, but the axle also swings through a wider arc. Before running the shackles on the trail, check the rear driveline angle and brake line routing at full droop, and look for contact with the frame or crossmember.

Bump stops and shock mounts need checking too. More spring travel can bring the axle close to the bump stops at full compression, and the lower shock mount may need relocating on some setups. Look for rubbing on the shock body and sway bar links, and adjust stop height only after confirming clearance.

Shackle bushings are the other part to watch. Urethane bushings resist wear well when greased, but they still need periodic inspection. Check the bolt heads and sleeves for play, and replace the bushings if they crack or flatten. Grease through the zerk fittings after every off-road outing, and recheck the center brace bolt during regular service.

  • Check driveline angle at full droop
  • Inspect brake lines for stretch or contact
  • Confirm bump stop and shock clearance
  • Grease the bushings after off-road use

Specifications

Brand Currie
Part number CE-9081
UPC 70000006144
Position Rear
Shape Boomerang
Side plates 1/4 inch thick steel
Bolts Grade 8, 1/2 inch greasable
Bushings Urethane, Energy Suspension ‘Tough 88’ fluted
Finish Corrosion proof gold zinc
Quantity Pair

Vehicle fitment

It fits 1987-1995 Jeep Wrangler (YJ) models in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. Later Wrangler generations such as the TJ and JK are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Later Wrangler generations such as the TJ and JK are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check rear driveline and brake line clearance after the shackles are installed, since the boomerang shape moves the spring eye. Grease the bushings through the zerk fittings once the assembly is in place.

What’s included

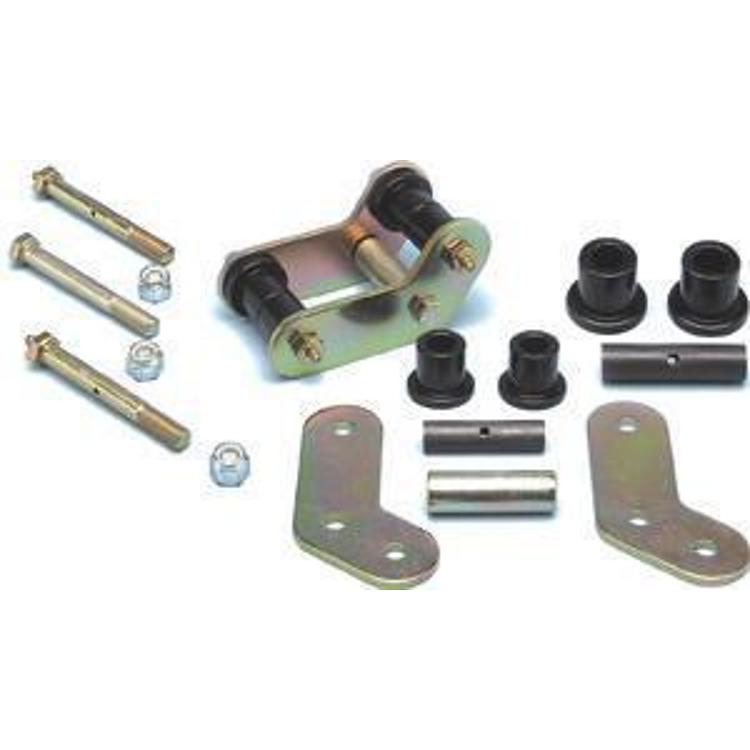

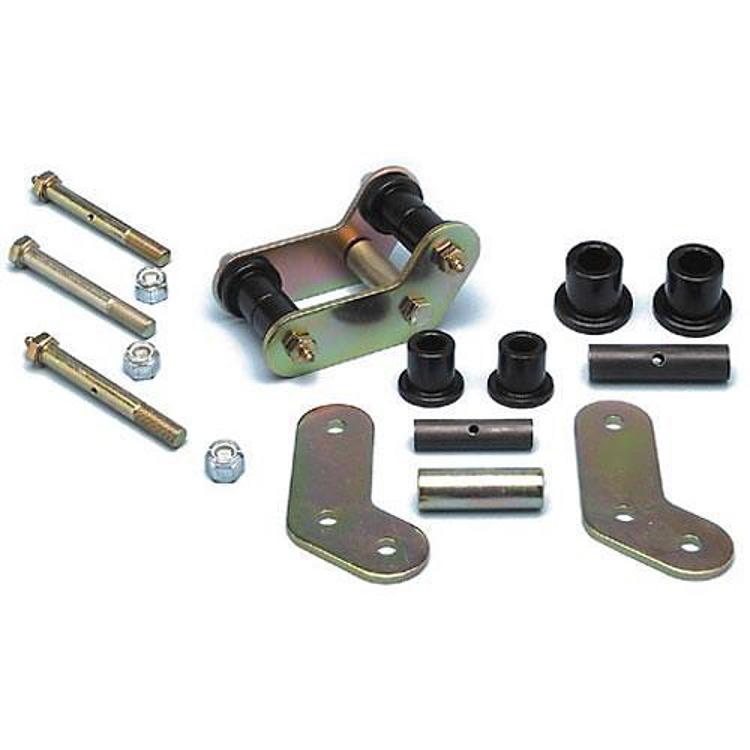

A pair of rear boomerang shackles with 1/4 inch steel side plates, bolt-in center braces, greasable bolts and urethane bushings.

SKU: CURCE-9081 Category:

Specification

Shipping weight 7.90 lbs
Package dimensions 6.10 × 6.10 × 5.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Currie CE-9081 fit a 1987-1995 Jeep Wrangler YJ?

Yes. It fits 1987-1995 Jeep Wrangler (YJ) models in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. Confirm fit for your vehicle's year, model and trim before ordering.

Is the CE-9081 the same as the CE-9081P for Pro Comp springs?

No. The CE-9081P is a separate part made for Pro Comp springs, with bushings sized for their larger spring eye. The CE-9081 is not the Pro Comp version, so match the shackle to your spring before buying the pair.

What does a boomerang shackle do?

A boomerang shape lets the back eye of the rear spring articulate behind the back end of the frame rail. That movement increases rear spring travel, which is the main reason to choose this style.

How do I grease the bushings on the CE-9081?

Greasing is done through the zerk fittings on the bolt heads, which feed the urethane bushings. Grease the bushings at regular service intervals and check them during routine inspection.

Do boomerang shackles change the ride height?

They can. A boomerang shape moves the spring eye, which can change how the rear sits at rest and how the axle moves at full droop. Check ride height and shock length after installation.

Should I replace the shackle bolts when installing these?

Inspect them first and replace any bolt showing thread damage, rust or wear. Use the same grade and size as the Grade 8, 1/2 inch bolts when replacing them.
