Overview

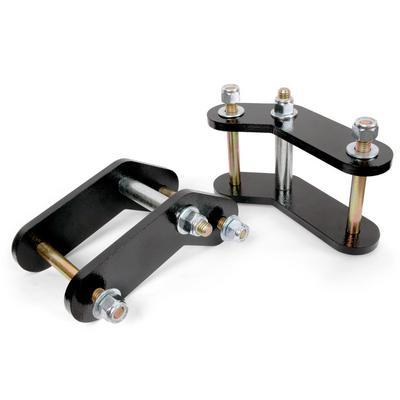

The Rough Country Jeep Boomerang Lift Shackles, part RC0401, are lift shackles for Jeep CJ and YJ models. Rough Country says they gain 1-1/4 inch of front or rear lift on Jeep YJ models and 1-3/4 inch of rear lift on Jeep CJ models.
The shackles are constructed from 3/8 inch thick steel. All corners are rounded to avoid interference problems, and each shackle lift comes with new grade 8 hardware and detailed instructions.
The YJ takes a front or rear lift, while the CJ takes a rear lift only.
Key features
- 3/8 inch thick steel shackle side plates
- All corners rounded to avoid interference problems
- Grade 8 hardware included
- Sleeves included
- Gains 1-1/4 inch lift on front or rear of a YJ
- Gains 1-3/4 inch rear lift on a CJ
Clearance after a lift
Lift shackles raise the rear of a leaf spring vehicle by moving the spring pivot, so the axle sits in a new position under the body. Clearance around the tires, fuel lines and brake lines should be checked before the first drive. The rounded corners on the side plates help avoid contact with nearby parts.
Because the pivot moves, driveline angles can change, so watch for vibration at speed and consider checking the U-joint angles after installation. Re-tighten the grade 8 bolts after the first few drives, and inspect the sleeves and plates for cracks or elongated holes. A lift shackle is a heavy-duty part, so keep the rest of the rear suspension in good condition.
- Check clearance around tires and lines
- Watch for driveline vibration at speed
- Re-torque hardware after the first drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | RC0401 |
| Position | Rear |
| Material | 3/8 inch steel |
| Hardware | Grade 8 |
| Lift on YJ | 1-1/4 inch, front or rear |
| Lift on CJ | 1-3/4 inch, rear |
| Quantity | Pair |
Vehicle fitment
Rough Country lists these shackles for the 1976-1983 Jeep CJ5, the 1976-1986 Jeep CJ7, the 1981-1985 Jeep Scrambler and the 1987-1995 Jeep Wrangler (YJ).
The Jeep Wrangler TJ, JK and JL are outside this fitment. Verify year, model and trim against your vehicle before buying.
Installation notes
The kit includes grade 8 hardware and detailed instructions, and the shackles bolt on. The YJ lift works on the front or rear, and the CJ lift works on the rear only.
What’s included
Shackle side plates, sleeves and grade 8 hardware, as a pair.
