Select your vehicle

Crown Automotive Shackle Kit – J0916646

Crown Automotive

$29.38In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 16, 2026 9:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Factory-style replacement shackle kit with rubber bushings, part J0916646
  • Front or rear location
  • Fits 1958–1975 Jeep CJ3, CJ5 and CJ6 models

Description

Overview

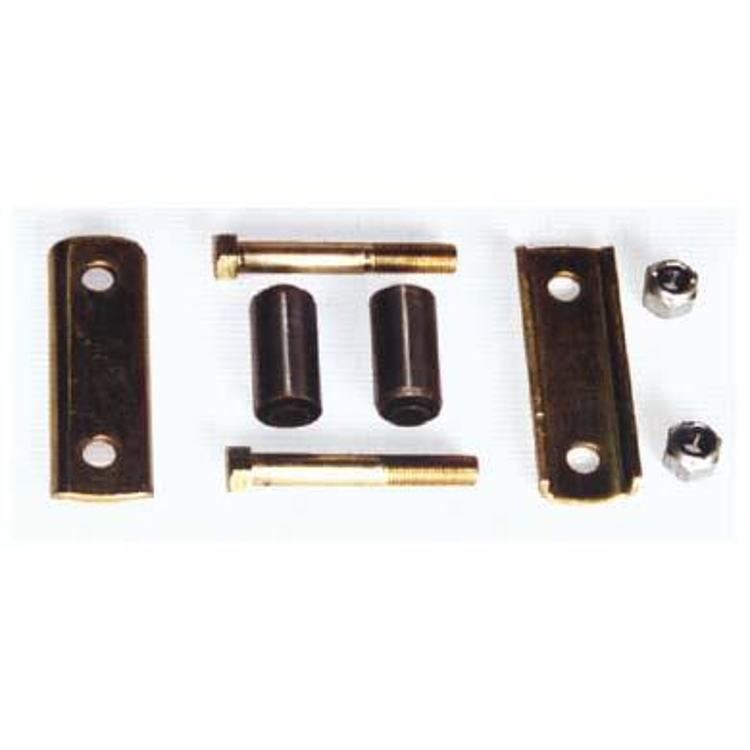

The Crown Automotive J0916646 is a factory-style replacement shackle kit with rubber bushings for front or rear positions on 1958–1975 Jeep CJ3, CJ5 and CJ6 models.

The listed entries cover the 1958 Willys CJ-3, CJ-5 and CJ-6, plus Jeep CJ3 (1959–1960 and 1966), CJ5 and CJ6 years from 1959 to 1975.

Key features

  • Factory-style replacement design
  • Rubber bushings
  • Front or rear location
  • Direct fit per the manufacturer list

Bushing care and wear

Rubber bushings in a shackle absorb movement between the spring eye and the shackle pin, which keeps the spring from clunking. Over time they harden, crack or swell after contact with oil, solvents and road salt. Check the bushings each time the vehicle goes in for suspension work, looking for splits, flattening or gaps between the rubber and metal sleeve.

When replacing bushings, press them in square and avoid tearing the rubber. Use a lubricant that is safe for rubber, since petroleum-based products can swell some compounds. Shackle bolts should be tightened with the vehicle resting on its wheels so the rubber is not preloaded at an angle. Replacing both sides together keeps the spring balanced and gives an even ride.

  • Look for cracks, splits or flattening
  • Check for oil or solvent contamination
  • Replace worn bushings in pairs with the shackle

Specifications

Brand Crown Automotive
Part number J0916646
UPC 848399079173
Style Factory-style replacement
Bushings Rubber
Location Front or rear
Fitment type Direct fit

Vehicle fitment

The manufacturer fitment list has six entries: the 1959–1960 and 1966 Jeep CJ3 (Base), the 1959–1975 Jeep CJ5 (Base, Renegade), the 1959–1975 Jeep CJ6 (Base) and the 1958 Willys CJ-3, CJ-5 and CJ-6.

CJ5 years from 1976 onward and CJ7 models are not in this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Rubber bushings are included with the kit. Check the package contents against your installation before starting.

SKU: CROJ0916646 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 4.00 × 4.00 × 1.50 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1960, 1966Base
Jeep CJ51959–1975Base, Renegade
Jeep CJ61959–1975Base
Jeep Willys CJ-31958All
Jeep Willys CJ-51958All
Jeep Willys CJ-61958All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Are the bushings in this kit rubber?

Yes. The kit uses rubber bushings, and it is a factory-style replacement for front or rear shackle positions on the Jeep CJ models it fits.

Will it fit a 1972 Jeep CJ5?

Yes, if the vehicle is a Base or Renegade trim. The kit fits the 1959–1975 Jeep CJ5 in those trims, so a 1972 CJ5 in one of them is covered. Confirm fit for your vehicle's year, model and trim before ordering.

Does it fit a CJ-7?

No. The kit fits CJ3, CJ5 and CJ6 models, and CJ-7 models are not part of its fit. Confirm fit for your vehicle's year, model and trim before ordering.

Can rubber shackle bushings be cleaned?

Wipe them with a dry cloth and remove grit, but avoid soaking them in solvent. Cleaning does not repair cracks or hardening, so replace bushings that show damage. Keep oil and fuel away from the rubber during service.
