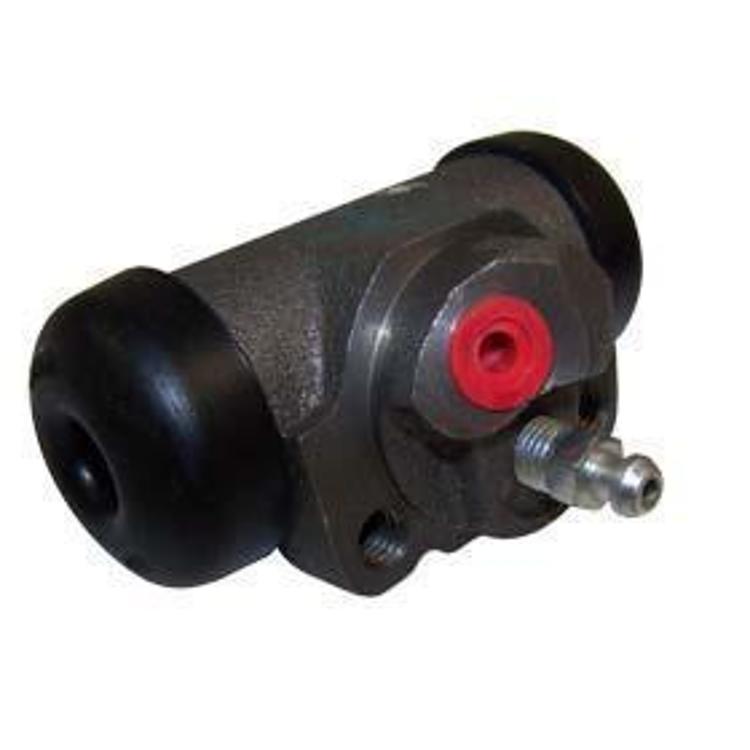

Crown Automotive Rear Wheel Cylinder – J8124799

Crown Automotive

$32.94Usually ships within 6 to 7 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 20, 2026 4:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear passenger-side wheel cylinder for 11 inch x 2 inch brakes
  • 15/16 inch inside diameter
  • Fits 1972–1975 CJ5 and CJ6, Wagoneer and J-series trucks

Description

Overview

The Crown Automotive J8124799 is a passenger-side rear wheel cylinder for 11 inch x 2 inch brakes with a 15/16 inch inside diameter. It fits the 1972–1975 CJ5 and CJ6, the Wagoneer and several J-series trucks.

The bore size and brake size must both match, so measure before choosing.

Key features

  • Rear passenger-side wheel cylinder
  • For 11 inch x 2 inch brakes
  • 15/16 inch inside diameter
  • Direct-fit application

Before replacing the cylinder

A rear wheel cylinder pushes the brake shoes outward when you press the pedal, and it is one of the parts that leaks fluid as a drum brake ages. Before buying a replacement, pull the drum and look at the shoes. Fluid on the inside of a shoe or the backing plate usually points to a leaking cylinder, and shoes soaked with fluid should be replaced at the same time.

Bore size and piston fit matter as much as the brake size. Measure the inside diameter of the old cylinder and compare it with the part you plan to fit. A cylinder that is close but not matched can push the shoes unevenly or leak at the seals. Clean the backing plate and check the brake line fittings while the drum is off.

  • Check both rear cylinders, since wear is usually similar on each side
  • Replace the rubber dust boots when the cylinder is out
  • Bleed the brakes after any cylinder is changed

Specifications

Brand Crown Automotive
Part number J8124799
UPC 848399067712
Product type Drum brake wheel cylinder
Position Rear, passenger side
Brake size 11 inch x 2 inch
Inside diameter 15/16 inch
Fit type Direct fit

Vehicle fitment

The J8124799 fits the 1972–1975 Jeep CJ5 and CJ6, the 1971–1973 J-100, J-2500, J-2600, J-4500, J-4600, J-4700, J-4800 and Wagoneer, and the 1971 J-3800.

CJ5 and CJ6 models before 1972 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

SKU: CROJ8124799 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 4.00 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51972–1975Base, Renegade
Jeep CJ61972–1975Base
Jeep J-1001971–1973Base
Jeep J-25001971–1973Base
Jeep J-26001971–1973Base
Jeep J-38001971Base
Jeep J-45001971–1973Base
Jeep J-46001971–1973Base
Jeep J-47001971–1973Base
Jeep J-48001971–1973Base
Jeep Wagoneer (SJ)1971–1973Base, Custom

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What size is the Crown J8124799 wheel cylinder?

It has a 15/16 inch inside diameter and fits 11 inch x 2 inch brakes. Both measurements should match your original cylinder.

Which side is the J8124799 for?

The passenger side, rear. It is a rear passenger-side wheel cylinder, so the driver side takes a different part number.

Which CJ years does the J8124799 cover?

This wheel cylinder covers the 1972–1975 CJ5 and CJ6, so earlier CJ models with different brakes are outside its fit.

Is the J8124799 also used on trucks?

Yes. It fits the Wagoneer and several J-series trucks from 1971–1973, including the J-100, J-2500, J-2600 and J-4500 models. Other CJ-era trucks are not covered.

How can you tell the wheel cylinder needs replacing?

Fluid on the inside of a brake shoe, a pedal that sinks slowly, or a drum that does not stop evenly are the usual signs. Pull the drum and check the cylinder boots and bore for leaks before deciding.
