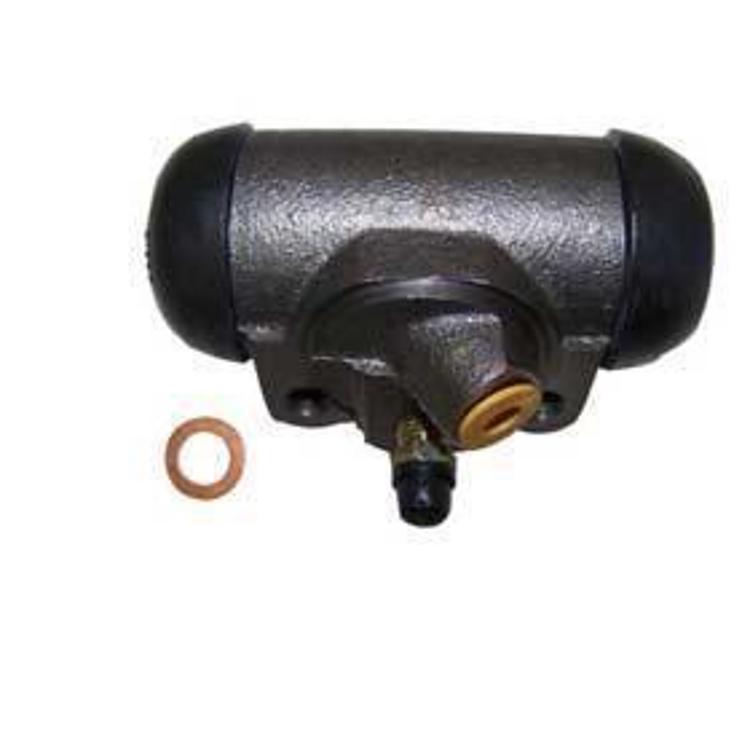

Crown Automotive Wheel Cylinder – J8126766

Crown Automotive

$34.97Usually ships within 6 to 7 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front driver-side wheel cylinder for 11 inch brakes
  • Fits 1965–1977 CJ5, 1965–1975 CJ6 and CJ5A
  • Also fits J-series trucks from 1963 to 1973

Description

Overview

The Crown Automotive J8126766 is a driver-side front wheel cylinder for 11 inch brakes. It fits the 1965–1977 CJ5, the 1965–1975 CJ6 and the CJ5A, plus a range of J-series trucks from 1963 to 1973.

It is a single cylinder for the left front wheel.

Key features

  • Front driver-side wheel cylinder
  • For 11 inch brakes
  • Broad CJ and J-series application list

Choosing a drum wheel cylinder

A wheel cylinder sits at the top of each drum brake shoe and pushes the shoes outward when you press the pedal. Its job is simple, but it works hard. Each stop sends hydraulic pressure through the piston cups, so small leaks show up quickly as fluid on the inside of the drum or backing plate. On an older Jeep, a cylinder that has sat for years can also seize or pit, which causes uneven braking.

When choosing a replacement, match the brake size and the side first, then check that the bore and mounting holes line up with the old unit. Shoes and drums are usually worn at the same time, so inspect them while the drum is off. Replacing a cylinder alone on badly worn shoes rarely restores full braking.

  • Check the side before ordering
  • Inspect the drum and shoes when the cylinder is replaced
  • Bleed the system after installation

Specifications

Brand Crown Automotive
Part number J8126766
UPC 848399068702
Product type Drum brake wheel cylinder
Position Front, driver side
Brake size 11 inch
Fit type Direct fit

Vehicle fitment

It is a direct fit for the 1965–1977 Jeep CJ5, the 1966–1968 CJ5A, the 1965–1975 CJ6, the 1963–1973 J-100, and the J-200 to J-330, J-2500 to J-2800, J-3500 to J-3800 and J-4500 to J-4800 trucks, for the years shown for each. The CJ7 is not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

The CJ7 is not on this list. Confirm your vehicle’s year, model and trim before ordering.

SKU: CROJ8126766 Category:

Specification

Shipping weight 4.25 lbs
Package dimensions 4.30 × 2.80 × 2.50 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51965–1977Base, Golden Eagle, Renegade
Jeep CJ5A1966–1968Base
Jeep CJ61965–1975Base
Jeep J-1001963–1973Base
Jeep J-2001963–1965Base
Jeep J-2101963–1965Base
Jeep J-2201963–1965Base
Jeep J-2301963–1965Base
Jeep J-25001971Base
Jeep J-26001965–1967Base
Jeep J-27001965–1967Base
Jeep J-28001965–1967Base
Jeep J-3001963–1965Base
Jeep J-3101963–1965Base
Jeep J-3201963–1965Base
Jeep J-3301963–1965Base
Jeep J-35001965–1967, 1969–1970Base
Jeep J-36001965–1967Base
Jeep J-37001965–1966Base
Jeep J-38001965–1967, 1971Base
Jeep J-45001970–1973Base
Jeep J-46001970–1973Base
Jeep J-47001970–1973Base
Jeep J-48001970–1973Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which side is the Crown J8126766 for?

It is the front driver side. The front passenger side takes a separate wheel cylinder, so check the side before ordering because left and right cylinders are not interchangeable.

What brake size does the J8126766 fit?

It fits 11 inch brakes. Confirm your drum size before choosing this front wheel cylinder, since fit depends on the brake size on your vehicle.

Does the J8126766 fit a 1976 CJ5?

Yes. The CJ5 is covered for 1965–1977, so a 1976 CJ5 with 11 inch front brakes falls within the covered years. Confirm fit for your vehicle's year, model and trim before ordering.

Is the J8126766 used on trucks?

Yes. It is also used on J-series trucks, including the J-100 and many J-series models from 1963 to 1973, in addition to the CJ5, CJ5A and CJ6 applications.

How can you tell a wheel cylinder is leaking?

Fluid on the inside of the backing plate or the drum is the usual sign. A soft pedal, a brake that pulls to one side, or fluid at the boot also points to a leak. Inspect the cylinder and the shoes when the drum is off, and replace the cylinder if it shows any seepage.
