Overview

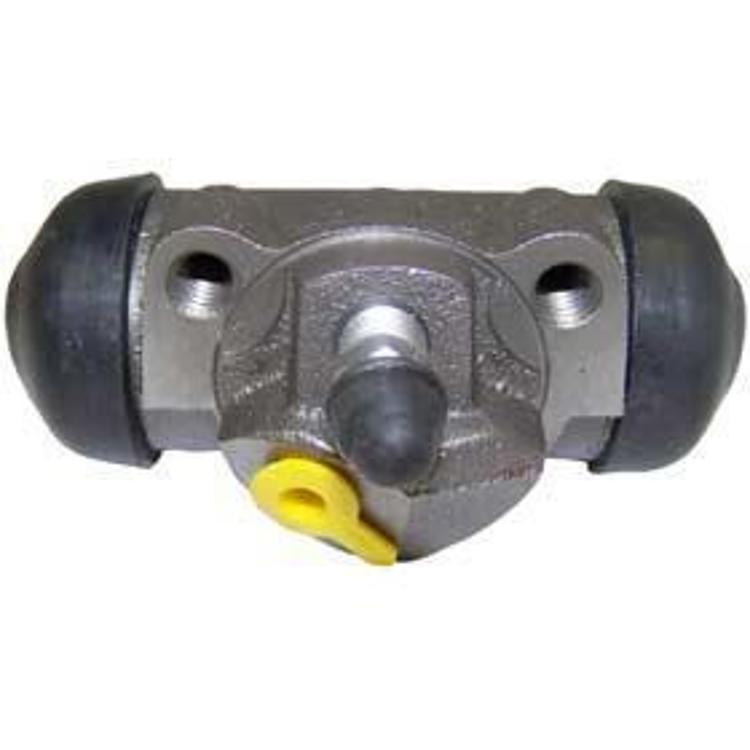

The Crown Automotive J8126775 is a driver-side rear wheel cylinder for 11 inch brakes with a 15/16 inch diameter. It fits the 1972–1975 CJ5 and CJ6 and J-series trucks from 1971 to 1973.
Size and side both matter, so match them to the original cylinder.
Key features
- Rear driver-side wheel cylinder
- For 11 inch brakes
- 15/16 inch diameter
- Direct-fit application
Signs of a worn cylinder
Drum brakes rely on the wheel cylinder to push both brake shoes outward against the drum. Each time you press the pedal, fluid pressure moves the pistons, and when you release it the return springs pull the shoes back. A cylinder that seeps fluid past its seals can drop pressure at the wheel, so the pedal may sink or the vehicle may pull to one side under braking.
Inspect the cylinder whenever you service the rear brakes. Look for wet spots on the backing plate or inside the drum, and check the rubber boots for tears. Pull the drum and inspect the shoes, because fluid soaked into the linings means both the shoes and the cylinder need attention. When one cylinder on an axle has failed, replacing the opposite side at the same time is a sensible habit, since both have usually seen the same wear.
- Fluid on the inside of the backing plate
- Torn or missing dust boot
- Pistons that stick or shoes that return slowly
- Shoes soaked with brake fluid
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J8126775 |
| UPC | 848399068726 |
| Product type | Drum brake wheel cylinder |
| Position | Rear, driver side |
| Brake size | 11 inch |
| Diameter | 15/16 inch |
| Fit type | Direct fit |
Vehicle fitment
The J8126775 fits the 1972–1975 Jeep CJ5 and CJ6, the 1971–1973 J-100, J-4500, J-4600, J-4700 and J-4800, and the 1971 J-2500 and J-3800.
The list does not include CJ models before 1972. Confirm your vehicle’s year, model and trim before ordering.
