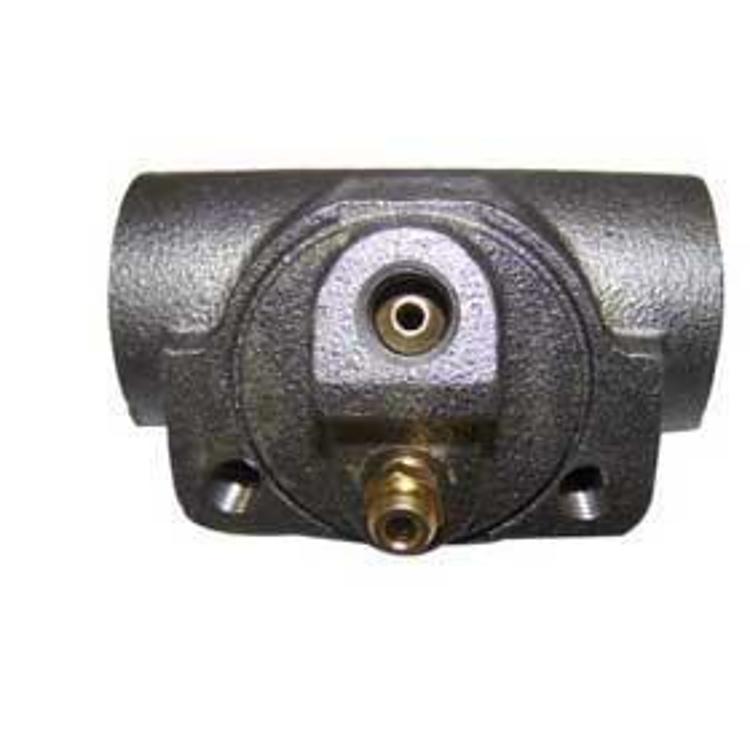

Crown Automotive Wheel Cylinder – J8130747

Crown Automotive

$48.37In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear wheel cylinder for export models with 11 inch rear brakes
  • Fits the 1974–1988 Jeep J10 and J20
  • Driver or passenger side

Description

Overview

It is a rear wheel cylinder for export models with 11 inch rear brakes. It fits the 1974–1988 Jeep J10 and J20 and works on the driver or passenger side.

The export-model note means it is not intended for every J10 or J20.

Key features

  • Rear wheel cylinder
  • For export models
  • For 11 inch rear brakes
  • Driver or passenger side

Wheel cylinder inspection

Rear wheel cylinders on trucks work through a long shoe travel, so the piston and bore see steady pressure. A cylinder that leaks shows as fluid at the boot or on the inside of the drum. A soft pedal that sinks over time can also point to a failing cylinder, though air or worn shoes can cause the same symptom.

When swapping a cylinder on an export truck, check the brake line fittings, bleed the system at each wheel, and confirm that both rear drums adjust evenly. Replacing one side often calls for checking the other side too. A road test at low speed after bleeding helps confirm that the pedal feels firm.

  • Check the boot and bore for fluid
  • Bleed each rear wheel after install
  • Replace the opposite side if it shows the same wear

Specifications

Brand Crown Automotive
Part number J8130747
UPC 848399070293
Product type Drum brake wheel cylinder
Position Rear
Brake size 11 inch
Application Export models
Side Driver or passenger
Fit type Direct fit

Vehicle fitment

It fits the 1974–1988 Jeep J10 and J20.

It is made for export models, so a domestic J10 or J20 may need a different cylinder. Confirm fit for your vehicle’s year, model and trim before ordering.

SKU: CROJ8130747 Category:

Specification

Shipping weight 4.50 lbs
Package dimensions 4.50 × 2.50 × 2.50 in
brands

Fitment

VehicleYearsTrims
Jeep J101974–1988Base
Jeep J201974–1988Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the Crown J8130747 for?

It is a rear wheel cylinder for export models with 11 inch rear brakes, so confirm your truck has that specification.

Which trucks use the J8130747?

The 1974–1988 Jeep J10 and J20 trucks. Because it is made for export models, confirm your truck is an export unit before ordering, since domestic trucks in those years may differ.

Does the J8130747 work on both sides?

Yes. It works on the driver or passenger side, so one part number covers either rear wheel on an export J10 or J20. Confirm the brake size first.

Will the J8130747 fit a CJ5?

No. The CJ5 is not part of the fitment, which covers only the J10 and J20 trucks from 1974 to 1988. Owners of other Jeep models should choose a part that names their vehicle.

How often should rear wheel cylinders be inspected?

Check them whenever the rear brakes are serviced, and during routine inspections of the drums and shoes. Look for leaks at the boot and listen for changes in pedal feel. Early checks catch leaks before they damage the shoes.
