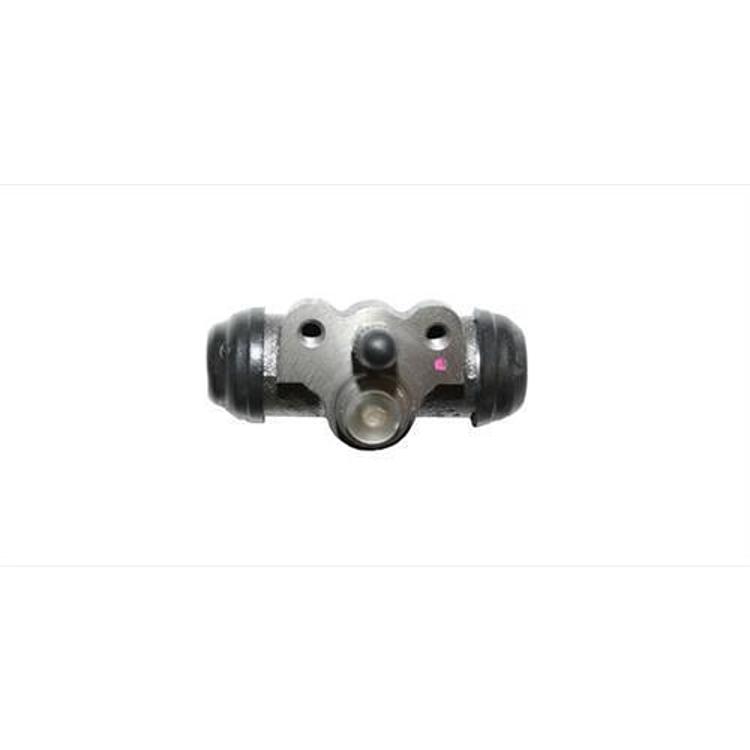

Crown Automotive Wheel Cylinder – J8126798

Crown Automotive

$24.99In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear wheel cylinder for 9 inch x 1-3/4 inch brakes, driver or passenger side
  • Fits CJ3, CJ5, CJ6, CJ5A, CJ6A and early Willys CJ models
  • Direct-fit Crown Automotive replacement

Description

Overview

The Crown Automotive J8126798 is a rear wheel cylinder for 9 inch x 1-3/4 inch brakes on the CJ-5 and CJ-6. It fits the 1955 to 1971 CJ-5 and CJ-6, and it can be used on the driver or passenger side.

It is the rear cylinder size for the narrower 9 inch brakes used on early Jeeps.

Key features

  • Rear wheel cylinder for 9 inch x 1-3/4 inch brakes
  • Driver or passenger side
  • Direct-fit CJ-5 and CJ-6 application

Wheel cylinder maintenance

A wheel cylinder pushes the brake shoes outward when the pedal is pressed, using a piston and rubber cups sealed inside a bore. Fluid leaking past the cups shows as wetness on the inside of the backing plate or the drum, and it reduces braking force. Because the cylinders sit at the wheels, they are often checked whenever the drums come off, and a leaking one should be replaced before the shoes are contaminated.

Before fitting a new cylinder, measure the bore and check for pitting, since a corroded bore will chew up new cups. Clean the mounting surface, use fresh brake fluid, and bleed the system until the pedal is firm. Rear shoes and springs are commonly inspected at the same time, because a worn cylinder can allow uneven shoe contact. Check the dust boots for splits as well, since water entering there leads to corrosion.

Specifications

Brand Crown Automotive
Part number J8126798
UPC 848399068764
Product type Drum brake wheel cylinder
Position Rear
Brake size 9 inch x 1-3/4 inch
Side Driver or passenger
Fit type Direct fit

Vehicle fitment

It fits the 1959–1966 CJ3, 1959–1975 CJ5 and CJ6, 1966–1968 CJ5A and CJ6A, and the Willys CJ-3 (1954–1958), CJ-5 (1955–1958) and CJ-6 (1956–1958).

Check the brake size before ordering, since this cylinder is for the 9 inch x 1-3/4 inch brakes only. Confirm your vehicle’s year, model and trim before ordering.

SKU: CROJ8126798 Category:

Specification

Shipping weight 0.70 lbs
Package dimensions 4.30 × 2.50 × 2.50 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1966Base
Jeep CJ51959–1975Base, Renegade
Jeep CJ5A1966–1968Base
Jeep CJ61959–1975Base
Jeep CJ6A1966–1968Base
Jeep Willys CJ-31954–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What brake size does the Crown J8126798 fit?

It fits 9 inch x 1-3/4 inch rear brakes. Confirm your drum size before choosing it, since this cylinder is for that brake size only.

Is the J8126798 for the driver or passenger side?

Either. It works on the driver or passenger side, so one part number covers both rear wheels. Check the bore size against your existing cylinder before fitting.

Which years does the J8126798 cover?

It covers the CJ-5 and CJ-6 from 1955 to 1971, and the fit extends to 1975 for the CJ5 and CJ6 and includes the CJ3. Confirm your year before ordering.

Is the J8126798 a rear part?

Yes. It is a rear wheel cylinder, fitted to the rear brakes of the CJ3, CJ5, CJ6 and early Willys CJ models. Check the position on your vehicle before ordering.

How can I tell a wheel cylinder is failing?

Look for brake fluid on the inside of the drum or backing plate, a soft pedal, or a pull to one side when braking. Pull the boots and check for leaking cups. Replace the cylinder if fluid is seeping past the piston or the bore is pitted.
