Overview

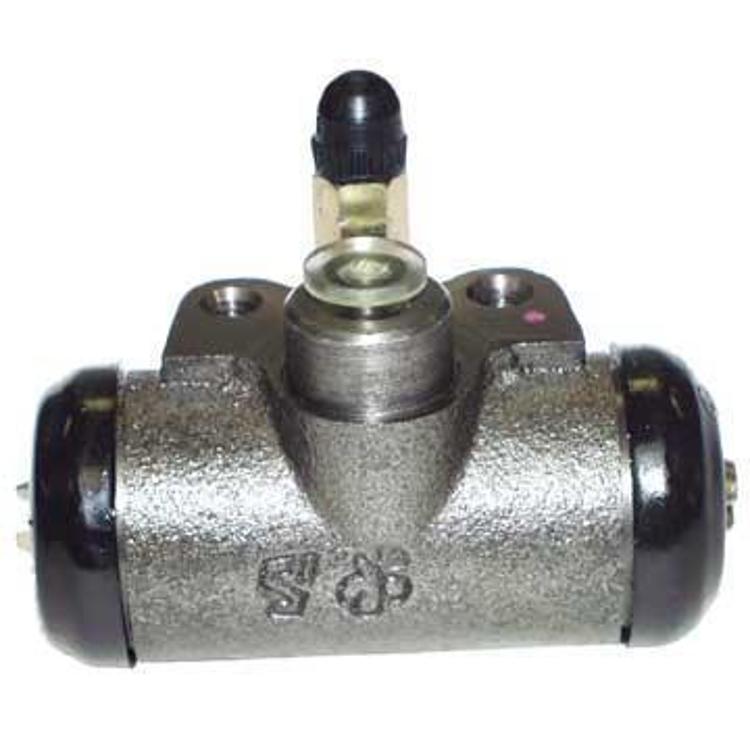

The Crown Automotive JA001484 is a front wheel cylinder with a one inch bore. It fits the 1941–1942 Willys MB and the 1946–1952 Willys CJ-2 and CJ-3. It is a left front cylinder.
Bore size and position are the main details to match against the original cylinder before installing.
Key features
- Front wheel cylinder
- One inch bore
- Direct-fit early Willys application
Drum brake care
A front wheel cylinder pushes the brake shoes against the drum when you press the pedal. On early Willys drum brakes, the cylinder sits at the top of the backing plate, so any leak there reaches the shoes and drum quickly.
Check the boots for cracks, look at the bore for pitting, and pull the cylinder if the piston sticks or fluid seeps around it. Replacing one cylinder without checking the other can leave a mismatched pull, so inspect both sides at once.
Brake shoes and drums should be checked when a cylinder is replaced, since contaminated linings can ruin a new cylinder. Keep the brake fluid fresh and bleed the system after the install so air does not reduce pedal firmness.
- Fluid on the inside of the drum
- Pedal that sinks slowly
- Pitting in the cylinder bore
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | JA001484 |
| UPC | 848399073300 |
| Product type | Drum brake wheel cylinder |
| Position | Front, left |
| Bore | One inch |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1946–1949 Willys CJ-2, the 1949–1952 Willys CJ-3 and the 1941–1942 Willys MB.
Later CJ models are not on the list. Confirm your vehicle’s year, model and trim before ordering.
