Overview

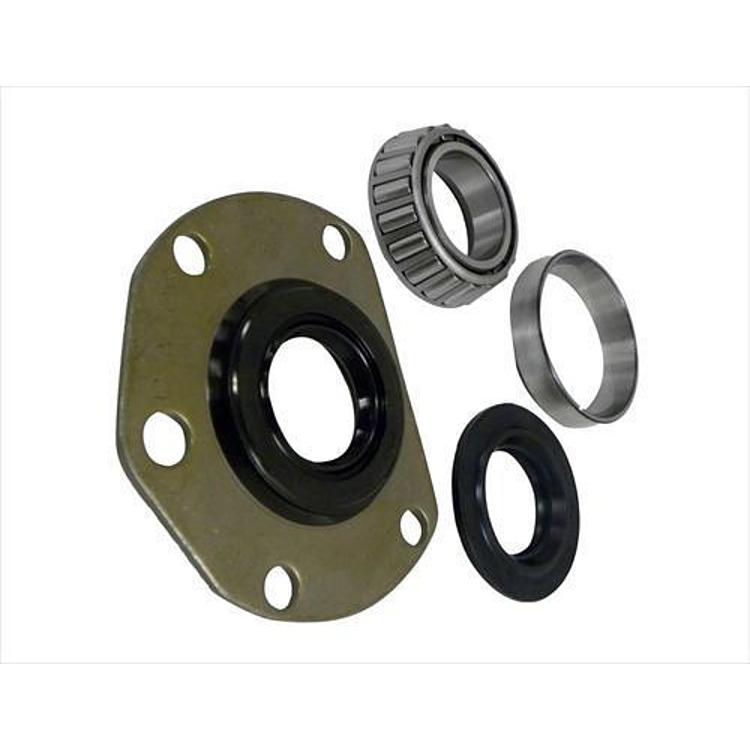

The Crown Automotive 3150046K is a Model 20 axle bearing and seal kit for the rear axle of the 1976–1986 Jeep CJ5, CJ7 and Scrambler.
An axle bearing and seal kit replaces the bearing that supports the axle shaft inside the housing along with the seal that keeps gear oil from leaking out at the wheel end.
It is a direct fit replacement for the rear Model 20 axle, also known as the AMC 20 or M20.
On a CJ with the AMC Model 20, the rear axle shaft rides in a bearing pressed into the axle tube end, and a seal sits outboard to hold in gear oil. Replacing both together is common practice when an axle shaft is out, because a leaking seal can contaminate the brakes. Keep rear and front axle parts separate so the position is right.
Key features
- Axle bearing and seal kit
- For the Model 20 rear axle
- Rear position
- Direct fit
- Crown Automotive replacement for Jeep vehicles
Wheel seal care
The wheel seal is the part most often overlooked during an axle job. Its lip rides on the axle shaft, and a grooved shaft or a nicked lip will leak gear oil quickly. A clean, undamaged shaft surface matters as much as the new seal, so inspect the shaft before it goes back in.
Pressing a bearing or seal squarely avoids a cocked fit that can cause early failure. Use a proper driver rather than a hammer on the seal face, and coat the lip lightly with clean gear oil before installing. Check the axle housing for leftover gasket material and debris.
- Inspect the shaft surface for grooves before reassembly
- Press the bearing and seal squarely
- Clean the housing bore of old sealant and debris
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 3150046K |
| UPC | 848399075496 |
| Part type | Axle bearing and seal kit |
| Axle | Model 20 (M20) rear axle |
| Position | Rear |
Vehicle fitment
The kit fits the following vehicles:
- 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade)
- 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade)
- 1981–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR)
The list covers the CJ5, CJ7 and Scrambler only. The Wrangler YJ and TJ and the Cherokee XJ are not on it. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the pieces in the box with your worn parts before assembly. Rear axle bearings and seals are normally installed with the axle shafts out of the housing.
What’s included
An axle bearing and seal kit, part number 3150046K.
