Overview

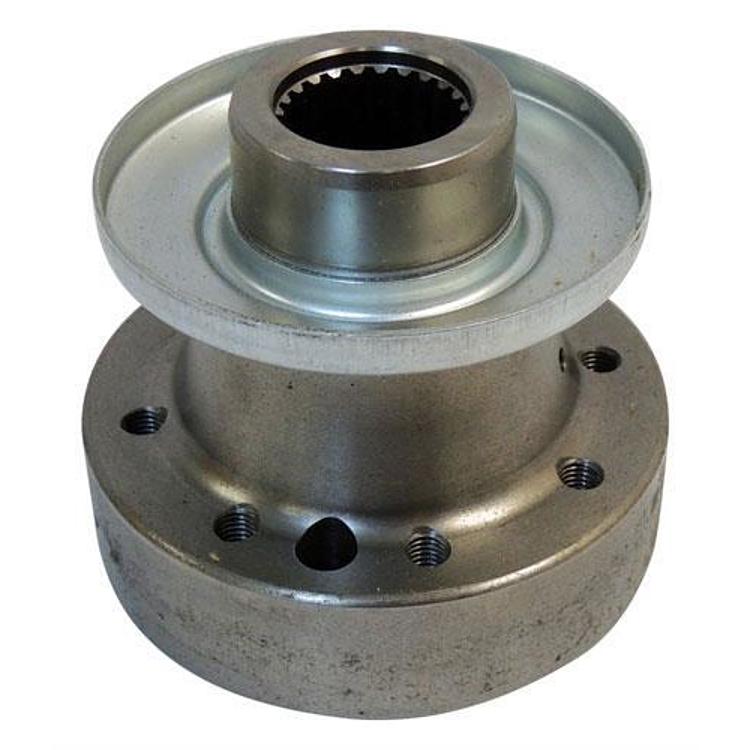

The Crown Automotive 68003262AA is a rear driveshaft yoke flange for the Dana 44/226MM rear axle. The yoke flange connects the driveshaft to the rear axle, so its fit depends on the axle as well as the vehicle. It fits 2007–2018 Jeep Wrangler (JK) models, both 2-door and 4-door.
It is made for the Dana 44/226MM rear axle, so check the rear axle type on your Wrangler before ordering. It does not suit a front-axle Dana 44 or a different rear axle.
Key features
- Rear driveshaft yoke flange for the Dana 44/226MM rear axle
- Fits both 2-door and 4-door 2007–2018 Wrangler (JK) models
- Rear position, direct-fit application
- Crown part number 68003262AA
Driveshaft and yoke flange basics
A yoke flange is the part that the driveshaft bolts to, and it transfers rotation from the driveshaft into the rear axle pinion. Flanges can wear at the bolt holes and at the pinion nut contact area, which may cause vibration and a shudder at speed. Check the flange face for grooves and the bolt holes for elongation whenever the driveshaft comes off.
When the flange is replaced, the pinion nut and pinion seal are usually disturbed, so inspect both at the same time. Driveline angles and the condition of the U-joints also affect how smooth the shaft runs after the job. Taking a few minutes to verify the flange sits square against the pinion can prevent repeat vibration issues.
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 68003262AA |
| UPC | 70000708554 |
| Axle | Dana 44/226MM rear |
| Position | Rear |
| Body style | 2-door and 4-door |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) with the Dana 44/226MM rear axle.
The 2018–2022 Wrangler (JL), the 1997–2006 Wrangler (TJ) and the Grand Cherokee models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One yoke flange, part number 68003262AA. No other hardware is named.
