Overview

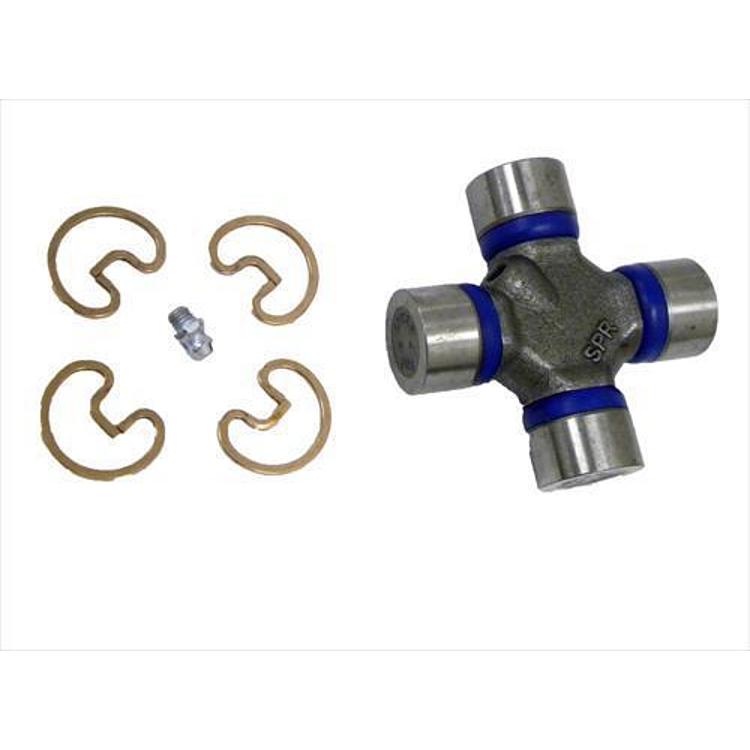

The Crown Automotive 8126614SP is a 1310 series universal joint for the rear driveshaft at the rear axle. It fits the 1984–1996 Jeep Cherokee (XJ), the 1986–1992 Jeep Comanche and the 1997–2006 Jeep Wrangler (TJ), where it replaces the rear driveshaft joint directly.
Crown Automotive has made replacement parts for Jeep vehicles for over 50 years. When replacing a worn rear joint on an XJ, Comanche or TJ, check the 1310 series, the 3-7/32 inch width and the rear position against the old part before ordering.
Key features
- 1310 series universal joint for rear driveshafts
- Designed for the rear driveshaft at the rear axle
- Lubeable, so the joint can be greased
- Direct fit to the listed Jeep models
- Crown Automotive part number 8126614SP
Rear driveshaft joint wear
A rear driveshaft U-joint carries torque from the transmission output to the axle pinion while allowing the shaft to change angle with suspension travel. Wear shows up as clunking when shifting between drive and reverse, a vibration that rises with road speed, or a shiny, grooved look on the bearing caps. Play in the joint can also loosen the driveshaft and damage the yoke over time.
Greaseable joints benefit from regular lubrication, especially after water crossings or long highway runs. Check the driveshaft angle when the vehicle is raised, since a lift or added suspension travel can change the working angle. Joints are often replaced in pairs with new strap bolts, because a worn partner tends to shorten the life of a new one.
- Clunk when shifting
- Vibration that rises with speed
- Grease fitting pushed in or missing
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 8126614SP |
| UPC | 848399049046 |
| U-joint series | 1310 |
| Width | 3-7/32 inch |
| Position | Rear driveshaft at rear axle |
| Lubeable | Yes |
| Fitment type | Direct fit |
Vehicle fitment
The 8126614SP fits the 1984–1996 Jeep Cherokee (XJ), the 1986–1992 Jeep Comanche and the 1997–2006 Jeep Wrangler (TJ). Match the joint to the model year and trim of your vehicle before you install it.
The 1987–1995 Jeep Wrangler (YJ), the 2004–2006 Jeep Wrangler (LJ) and the Jeep Wrangler (JK) are not covered by this joint. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One universal joint. Hardware and grease are not included.
