Overview

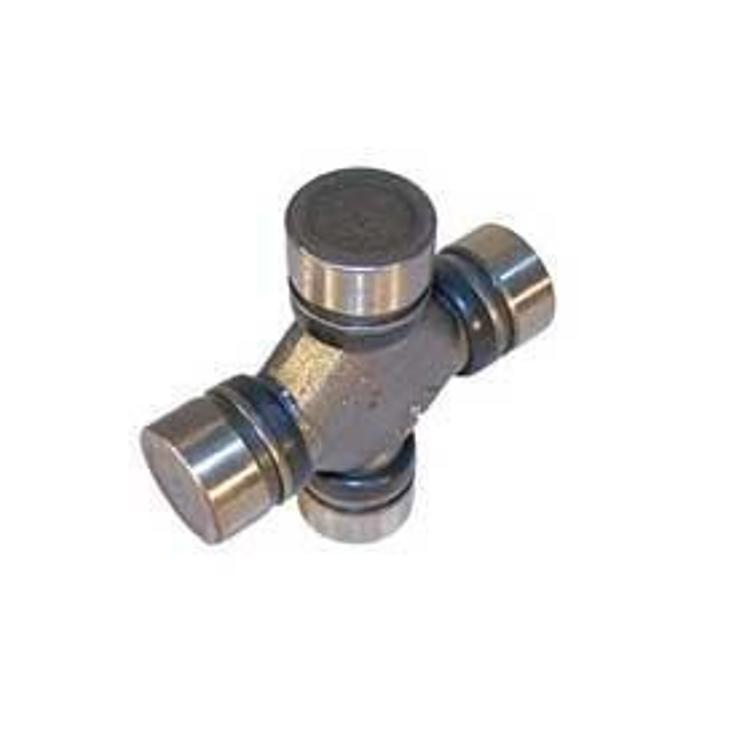

The Crown Automotive 5093377AB is a driveshaft U-joint for the front joint of the rear shaft. It fits the 2003–2006 Jeep Wrangler TJ and the 2004–2006 Jeep Wrangler LJ.
The joint is 1310 series and is not lubeable. Check the package on your vehicle before ordering, since fit depends on whether it has the Unlimited or Rubicon package.
Key features
- Rear shaft, front joint position
- 1310 U-joint series
- Not lubeable
Driveshaft U-joint service
A U-joint lets the driveshaft turn through an angle, so it is one of the main wear points on the rear shaft. Wear shows up as a clunk when shifting from drive to reverse, vibration that increases with road speed, or play in the caps when the shaft is turned by hand. Worn joints can also damage the yoke and the pinion flange over time.
A non-lubeable joint is sealed and is replaced rather than greased, so inspect the joint closely at each service and replace it when play is clear. When the joint is replaced, check the yoke and flange for wear, and tighten the strap bolts to the correct value. Driveshaft balance and alignment also matter, so have the shaft checked after a repair.
- Check for clunking when shifting
- Look for play in the caps
- Inspect the yoke and flange at the same time
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 5093377AB |
| UPC | 848399035247 |
| Position | Rear shaft, front joint |
| U-joint series | 1310 |
| Lubeable | Not lubeable |
Vehicle fitment
It is a direct fit for the 2004–2006 Jeep Wrangler LJ, including the Unlimited and Unlimited Rubicon models, and for the 2003–2006 Jeep Wrangler TJ.
Check the package on your vehicle before ordering, since the Unlimited package and the Rubicon package affect fit. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Driveshaft U-joint.
