Overview

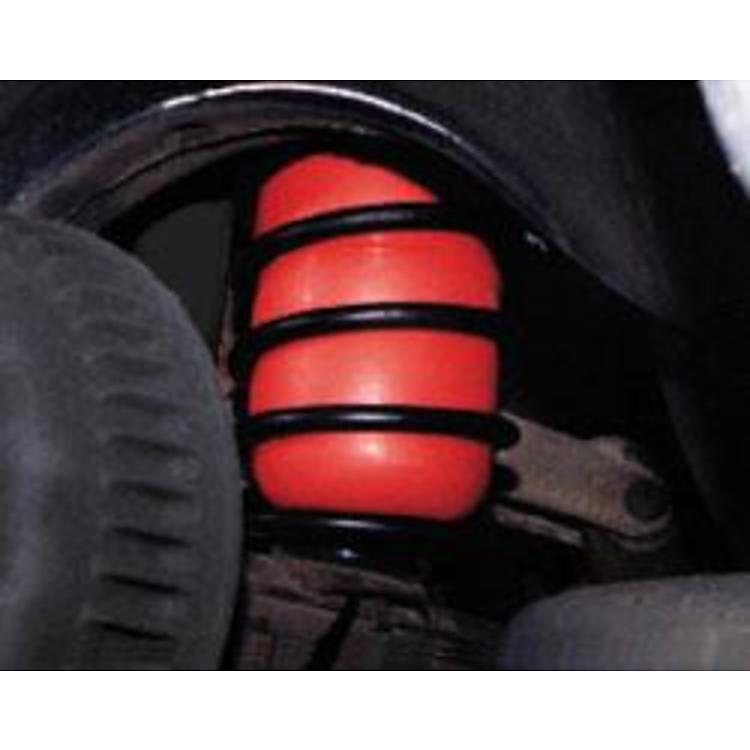

The AirLift Air Lift 1000 rear coil spring, part number 60810, is an air adjustable helper spring for the 2005–2012 Nissan Pathfinder (LE, S, SE, SE Off-Road, SV, Silver Edition, XE).
The Air Lift 1000 is an air adjustable rear helper spring that provides a more stable ride and helps improve handling and braking. It reduces roll, sway and bottoming out. It fits open coil springs and provides up to 1000 lbs of leveling capacity. It is made from molded polyurethane and comes with a limited lifetime warranty.
Key features
- Helper spring for open coil springs
- Up to 1000 lbs of leveling capacity
- Air adjustable for custom tuning
- Reduces roll, sway and bottoming out
- Molded polyurethane construction
- Limited lifetime warranty stated by the brand
Choosing a helper spring
A rear helper spring works alongside the existing coil, adding support when the vehicle carries more weight than it was built for. Leveling capacity describes how much load the helper can support, so match your typical load against that figure before choosing a setup. Air adjustment lets the ride be tuned between trips rather than fixed at one height.
Helpers are often replaced together with worn shocks and bump stops, because a new spring can expose tired damping. Check the rear shocks, mounts and bushings during installation. Look at the mounting points for cracks or abrasion after rough use, and address any wear before adding load.
- Match typical load to the leveling capacity
- Inspect shocks and bump stops before fitting
- Check air fittings for leaks after setting
- Look over mounts for wear or abrasion
Specifications
| Brand | AirLift |
|---|---|
| Part number | 60810 |
| UPC | 729199608100 |
| Product line | Air Lift 1000 |
| Position | Rear |
| Coil spring type | Open coil springs |
| Leveling capacity | Up to 1000 lbs |
| Material | Tough molded polyurethane |
| Warranty | Limited lifetime, as stated |
| System type | Air bag |
| Fitment type | Direct fit |
| Drilling | No drill |
| Installation time | 1 hour or less |
Vehicle fitment
Fitment covers the 2005–2012 Nissan Pathfinder in LE, S, SE, SE Off-Road, SV, Silver Edition and XE trims.
Pathfinder model years before 2005 and after 2012 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
No drilling is needed, and the installation time is listed at 1 hour or less. Look for air leaks at the fittings once the setting is done. Work under the rear of the vehicle only with stands in place.

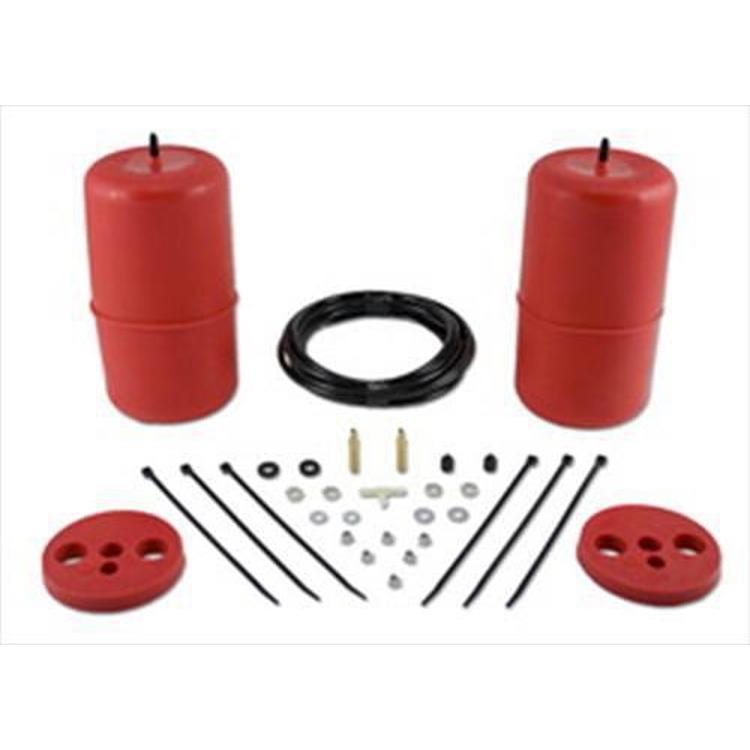

What’s included
Check the package contents against your installation before starting work.
