Overview

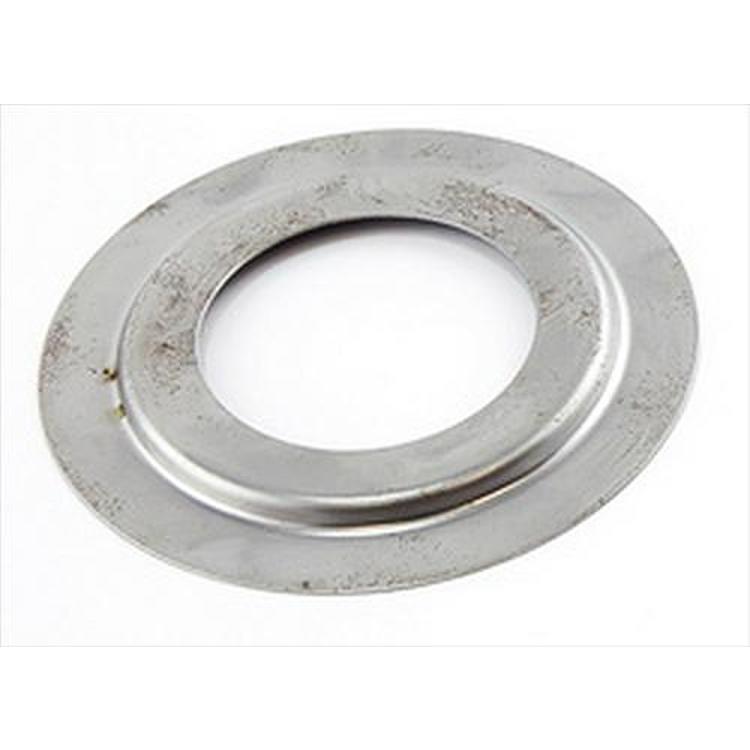

The Omix-ADA 16512.53 is a Dana 30 inner pinion baffle for the front axle. A pinion baffle is a shield inside the differential housing around the pinion, and it helps direct the oil flow.
It is a direct OE replacement built to original specifications and carries a limited five year manufacturer warranty. It fits three Dana 30 axle types: JK, Reverse and Standard.
Key features
- Direct OE replacement design
- Built to original specifications
- Front axle position
- Covers Dana 30 JK, Dana 30 Reverse and Dana 30 Standard axle types
- Limited five year manufacturer warranty
Differential work and fluid
A pinion baffle sits inside the front differential, so the job involves opening the housing and working around the gears. Plan for the fluid change, clean the housing surfaces, and check the gasket or sealing surface before reassembly. Taking care here keeps debris out of the gears.
Look at the old baffle for cracks, warping or wear marks before removing it. Metal flakes in the fluid or on the magnet can point to gear wear that should be inspected at the same time. Replacing a worn baffle while the cover is off is usually a sensible use of the work already underway.
Refill to the correct level after the job, and run the vehicle to check for leaks. Note the fluid quantity drained so you can compare it with the refill.
- Inspect the gasket surface before reassembly
- Check fluid level after a short test drive
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 16512.53 |
| UPC | 804314017613 |
| Axle location | Front |
| Axle types | Dana 30 JK, Dana 30 Reverse, Dana 30 Standard |
| Fitment | Direct fit |
| Warranty | Limited five year manufacturer warranty |
Vehicle fitment
This pinion baffle is a direct fit by axle type. Confirm which Dana 30 type your vehicle has, then confirm your vehicle’s year, model and trim before you buy.
Dana 30 Reverse and Dana 30 Standard are separate axle types, so verify which one is in your vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Fitting a pinion baffle means opening the front differential, so drain the fluid first and refill to the correct level afterward.
What’s included
The inner pinion baffle, part 16512.53. No additional hardware is described.
