Air Compressor Accessories covers the small parts that complete an onboard air or air suspension system: push-to-connect and NPT fittings from AirLift, pressure switches and gauges from Firestone Ride-Rite, compressor mounting brackets from TeraFlex for the Wrangler TJ and JK, storage bags and inflation carry cases from Smittybilt and ARB, and controllers such as the ARB LINX. Subcategories cover air line fittings, gauges, carry bags and tire inflation kits.Match thread and tube sizes carefully, then compare the products below.
Air Compressor Accessories
Showing 1–12 of 32 resultsSorted by popularity
Shop Air Compressor Accessories by type
-
Air Pressure Gauge

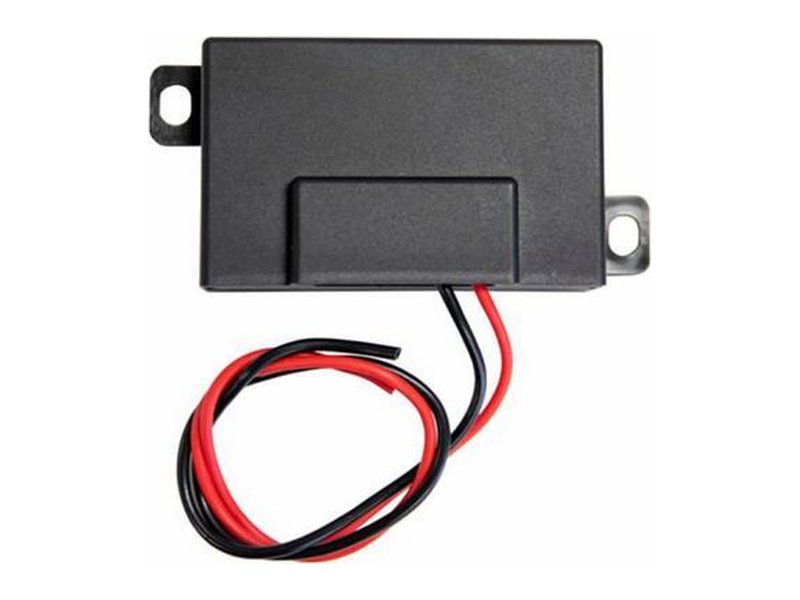

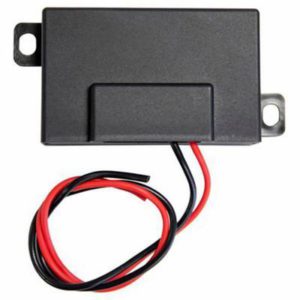

ARB LINX TPMS Bluetooth Comms Box – 7450116
- ARB LINX TPMS Bluetooth Comms Box, part number ARB7450116
- Controls vehicle accessories from one driver interface
- Replaces classic switches, gauges and monitors
- Vehicle fitment not listed; check specifications before ordering
SKU: ARB7450116 -
-
-
-
-
Air Compressor Accessories
TeraFlex Air Compressor Mounting Bracket – 4847400
- TeraFlex air compressor mounting bracket, part TER4847400
- Mounts the OEM Rubicon air locker compressor to the BellyUp skid plate
- Fits 1997-2006 Jeep Wrangler TJ and 2004-2006 Wrangler Unlimited LJ
- Hardware included
SKU: TER4847400 -
Air Compressor Accessories
TeraFlex ARB Compressor Under Hood Mount – 1184220
- TeraFlex ARB Compressor Under Hood Mount, part number 1184220
- Holds a small ARB air compressor on the left side of the engine compartment
- Positioned near the ABS module; laser cut and bent bracketry
- Black powder coat finish
- Fits the 2007-2018 Jeep Wrangler JK
SKU: TER1184220
The parts that finish an air system
A compressor and a tank are only half of an onboard air setup. The rest is plumbing and control: fittings that join line to compressor, tank, gauge and springs; a pressure switch that turns the compressor off at a set pressure; a gauge to read the system; a bracket that holds the compressor somewhere safe; and a bag or case that keeps the hose, chuck and gauge together in the back of the vehicle. This category collects those pieces, mostly from AirLift and Firestone Ride-Rite, who make them to support their helper spring kits, along with TeraFlex compressor mounts and ARB inflation accessories.

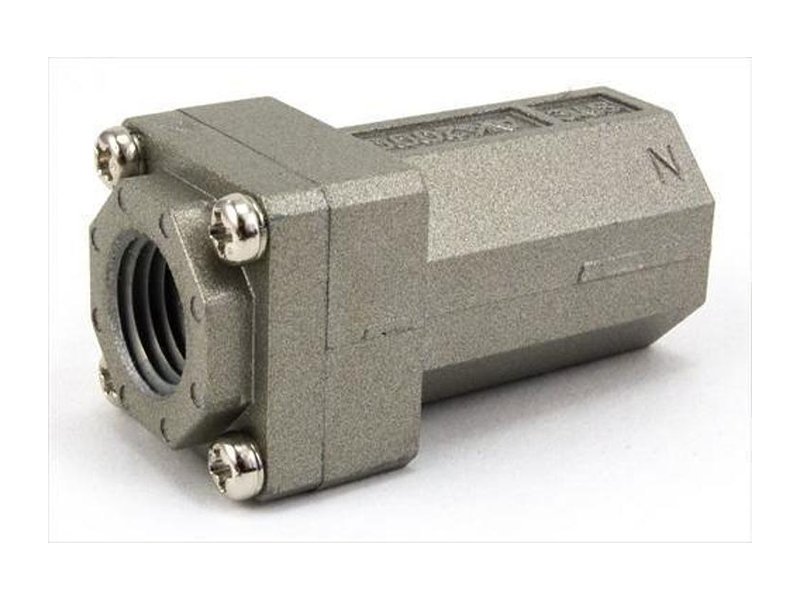

Fittings: reading the sizes

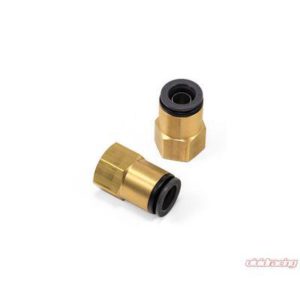

Air fittings are named by thread on one end and tube size on the other, and both must match. A fitting listed as female 1/4 inch FNPT by 1/2 inch tube has a 1/4 inch National Pipe Thread port and grips a 1/2 inch outside diameter tube. NPT threads are tapered and seal on the thread with sealant or tape; push-to-connect ends grip DOT air line by its outside diameter and seal with an internal collet. Common sizes in air suspension are 1/4 inch tube for springs and lockers and 3/8 or 1/2 inch for horns and tools. Elbows save space behind brackets, Y fittings split one supply into two lines for a pair of springs, and nipples join two female ports.
- Measure tube by outside diameter with a caliper; 1/4 inch and 6 mm are not the same.
- Match NPT size by the port it threads into, not by eye; 1/8, 1/4 and 3/8 NPT look alike at a glance.
- Use Teflon tape or anaerobic sealant rated for air on NPT threads, leaving the first thread bare so no tape enters the system.
- Cut DOT line square with a tube cutter so the push-to-connect collet seals.
Pressure switches and gauges

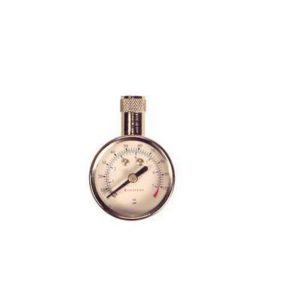

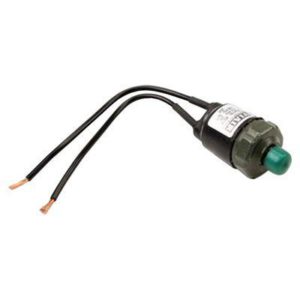

A pressure switch is a simple on-off device that completes the compressor circuit below one pressure and opens it above another. The Firestone switch here runs 100 to 150 psi, suited to a tank system for lockers or tools. Wire it through a relay rather than carrying compressor current through the switch. Gauges should read a little beyond your system's maximum; a 160 psi gauge on a 150 psi system is about right. Dual needle gauges show left and right spring pressure at once, and the ARB LINX unit replaces separate switches and gauges with a single controller that reports tire pressure as well. Check the gauge against a known good tire gauge once a season.
Brackets and mounting
Compressors want a mount that is cool, dry and solid. TeraFlex makes brackets that place an ARB compressor under the hood of a JK on the left side near the ABS module, and another that mounts the factory Rubicon locker compressor to its BellyUp skid plate on a TJ. Use the hardware supplied, keep the intake filter where it can breathe clean air, and leave room for the fittings. Rubber isolation under the compressor feet cuts vibration noise that otherwise transmits through the body.
Carry bags and inflation cases

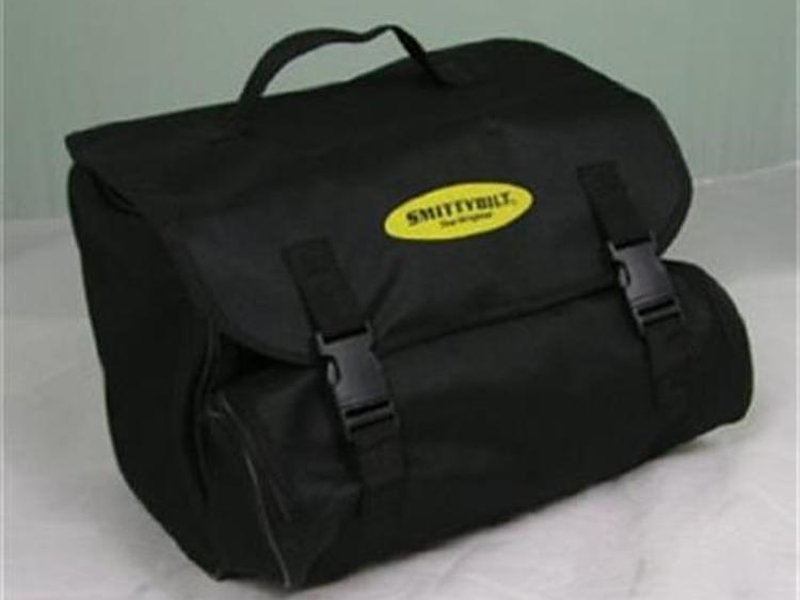

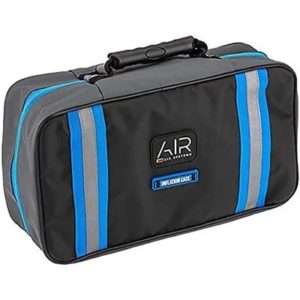

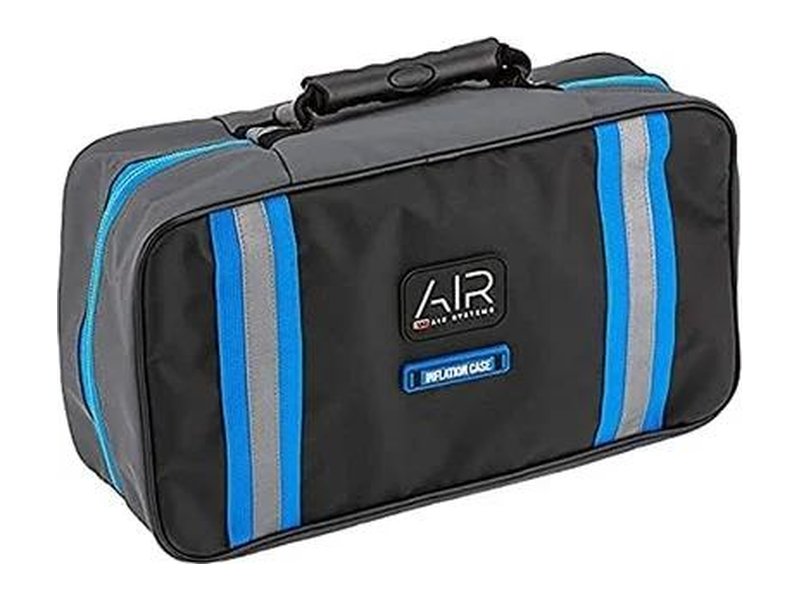

A portable compressor without a bag becomes a pile of hose and loose fittings. Dedicated bags such as the Smittybilt compressor bag hold the unit and hose; the ARB inflation case organizes the chuck, gauge, deflator and spare valves in canvas sleeves. Keep a spare set of fittings and a short length of line in the bag; a cracked fitting on the trail is otherwise a trip-ending problem.
Popular Air Compressor Accessories brands
- AirLift (15)
- Firestone Ride-Rite (7)
- Smittybilt (3)
- TeraFlex (3)
- ARB 4x4 Accessories (3)
- Mountain Off Road Enterprises (1)
- Power Tank (1)
Air Compressor Accessories FAQ
What size air line fittings do I need?
Match both ends: the NPT thread of the port you are threading into and the outside diameter of the air line. Suspension kits commonly use 1/4 inch tube with 1/8 or 1/4 NPT ports, while horns and tools run 3/8 or 1/2 inch line. Measure rather than guess.
How does a compressor pressure switch work?
It closes the compressor circuit when tank pressure drops below its low setting and opens it at the high setting, for example 100 and 150 psi. Wire it through a relay so the switch carries only control current, and add a safety valve rated above the cut-off pressure.
Can I mount a compressor under the hood of a Jeep?
Yes, that is the common location on a Wrangler. TeraFlex brackets place an ARB compressor on the inner fender of a JK or on a TJ skid plate. Keep the intake filter clear of water spray, use rubber isolation and route the line away from exhaust heat.
Do I need thread sealant on push-to-connect fittings?
Only on the NPT threaded end. Use Teflon tape or air rated sealant there, leaving the first thread bare. The push-to-connect end seals on the tube itself, so the tube must be cut square and pushed in until it seats. Pull back to confirm the collet has gripped.
