Overview

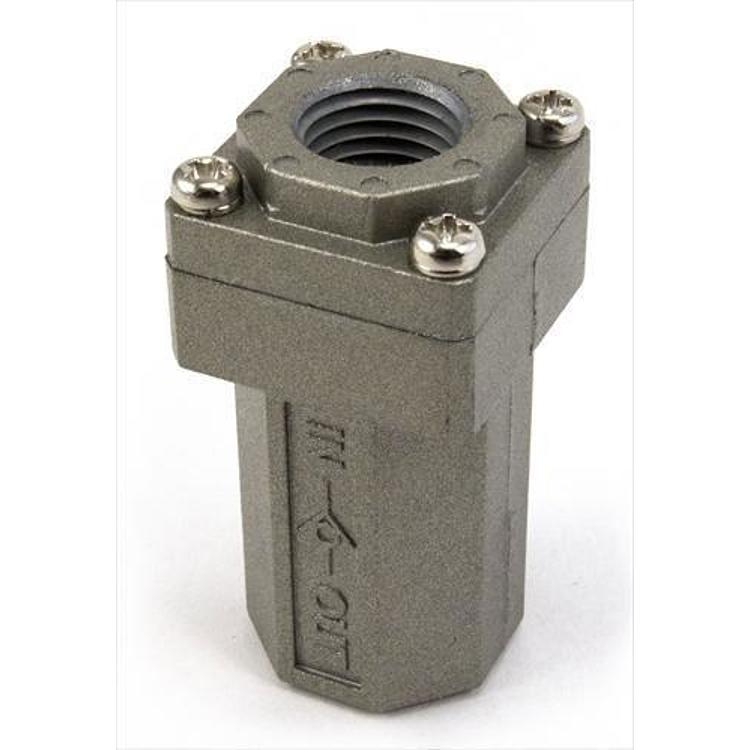

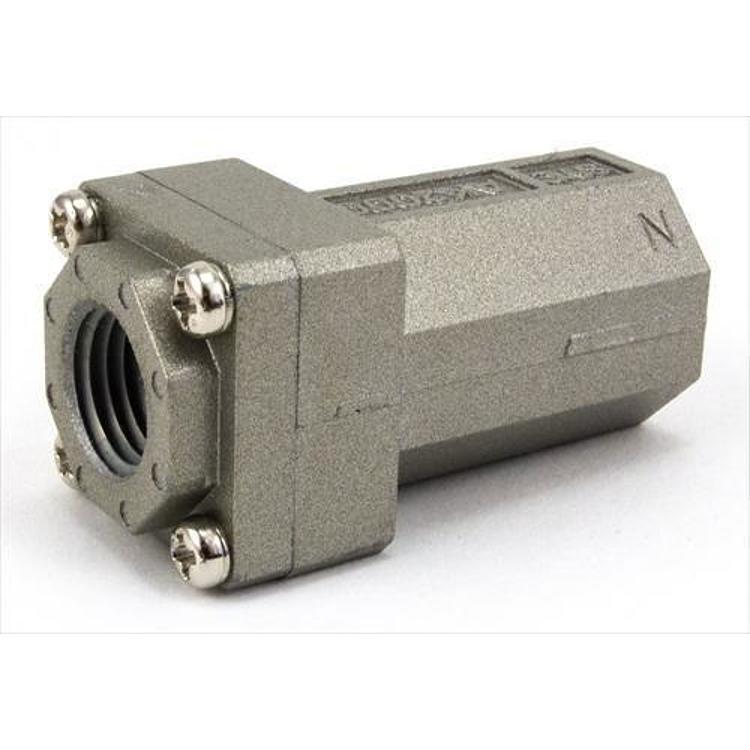

The AirLift 22648 is a check valve for air systems that allows air to flow in one direction only. It helps keep compressors from leaking down and helps keep air tanks from bleeding off. It is universal fit, so it is not tied to a specific vehicle.
Key features
- One-way airflow through the valve
- Helps keep compressors from leaking down
- Helps keep air tanks from bleeding off
- Universal Fit for air system use
Check valves in air systems
A check valve sits between the compressor and the tank so air moves forward only. When the compressor stops, the valve closes, which keeps stored air from flowing back through the pump. A valve that lets air leak back often shows up as a tank that drops pressure while the system sits idle.
Mount the valve where it is easy to see and reach, with the flow arrow pointing from the compressor toward the tank. Keep the valve clear of heat from the pump and free of dirt, since grit can hold the seat open. When a tank bleeds down, test the valve before blaming the tank or the lines.
- Confirm the flow arrow before tightening
- Keep the valve clear of dust and moisture
- Test for leaks at the valve when pressure drops at rest
Specifications
| Brand | AirLift |
|---|---|
| Part number | 22648 |
| UPC | 729199226489 |
| Type | Check valve |
| Flow direction | One direction only |
| Fitment | Universal Fit |
Vehicle fitment
The check valve is universal and not vehicle-specific. Confirm that its port threads and tubing size match your compressor or tank before installing it.
Installation notes
Install the valve with its flow direction matching the air path from the compressor to the tank, since it only passes air one way.
What’s included
The item is the valve only. Look over the parts on hand against your installation before starting.
