Overview
The Spidertrax Offroad WHS006 wheel spacers are 1.25 inch thick aluminum spacers with a 5 on 5 bolt pattern, finished in anodized blue. Spidertrax names front and rear Jeep WJ axles as the application, which covers the Grand Cherokee (WJ) from 1999 to 2004.
The 6061T6 aluminum is double anodized in dark blue. The spacers are wheel and hub centric. Fitment covers front and rear Jeep WJ axles only.
Key features
- 1.25 inch thickness with a 5 on 5 bolt pattern
- 6061T6 aluminum, double anodized dark blue
- Wheel and hub centric design, per Spidertrax
- Kit includes 2 spacers, 10 pre-installed wheel studs, 10 lugnuts and Loctite
- Made in the USA
Wheel and hub centric fit
Hub centric spacers locate the wheel on the hub bore, so the load is carried by the hub rather than by the lug nuts alone. That matters for vibration: a wheel that is properly centered runs truer than one held only by the studs. Before fitting, check that the spacer bore matches the hub and that the hub face is clean and flat.
Hub spacers change the wheel’s position, so clearance at the caliper, fender and steering components should be rechecked after installation. Full steering lock and suspension travel are the two checks that reveal rubbing. Stud and nut torque should be rechecked too, because the wheel now sits in a new position. Hold onto the box until fit is confirmed, in case a part needs to be exchanged for a better match.
- Check bore match before fitting
- Recheck clearance at full lock
- Retorque nuts after the first drive
Specifications
| Brand | Spidertrax Offroad |
|---|---|
| Part number | WHS006 |
| UPC | 203178045399 |
| Bolt pattern | 5 on 5 |
| Thickness | 1.25 inch |
| Material | 6061T6 aluminum |
| Finish | Anodized dark blue |
| Spacers per kit | 2 |
| Wheel studs | 10 standard, pre-installed |
| Lugnuts | 10 |
| Thread locker | Loctite |
| Origin | Made in the USA |
Vehicle fitment
The WJ chassis code covers Grand Cherokee (WJ) models from 1999 to 2004, the years shown.
The WJ application does not cover the Grand Cherokee ZJ generation, the Cherokee XJ or Wrangler models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The studs come pre-installed and Loctite is included. Check clearance at full steering lock and suspension travel after fitting, because hub spacers change wheel position.
What’s included

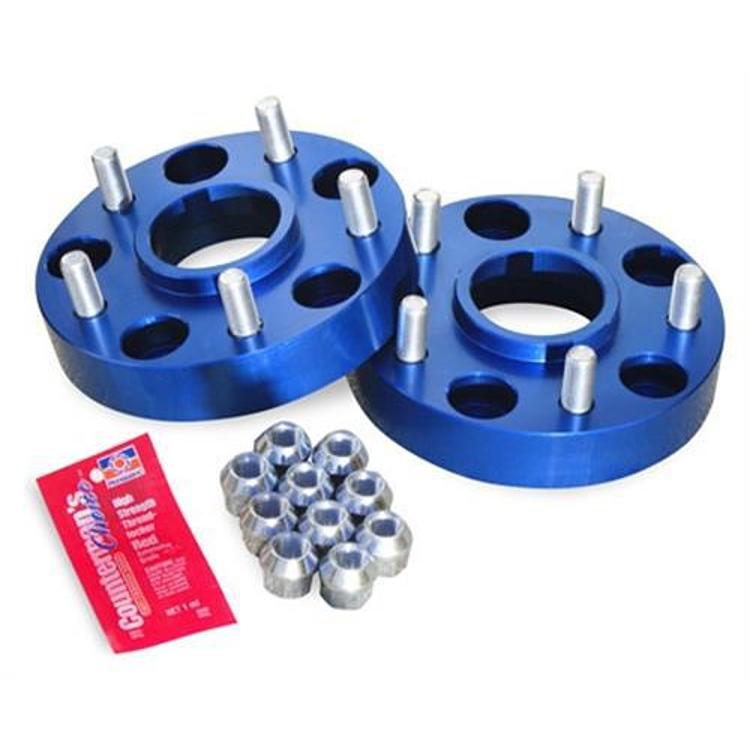

Two spacers, 10 standard wheel studs (pre-installed), 10 lugnuts and Loctite.
