Overview
The Spidertrax Offroad WHS021 is a pair of 1.75 inch thick wheel spacers with a 5 on 5 bolt pattern, made from 6061T6 aluminum in anodized blue. A wheel spacer moves the wheel outward on the hub, which is the usual way to add track width or room for wider tires. They fit front and rear 2007-Present Jeep Wrangler JK axles, along with the 2006-Present Commander XK and 2005-2010 Jeep Grand Cherokee WK.
Each spacer is wheel and hub centric, so the wheel centers on the hub instead of relying only on the lug studs. The anodizing is a double process that adds corrosion resistance.
Key features
- 1.75 inch thick aluminum spacers
- 5 on 5 bolt pattern
- Wheel and hub centric fit
- Double anodized dark blue finish for corrosion resistance
- Ten standard wheel studs come pre-installed
- Kit includes two spacers, ten lug nuts and thread locker
Track width and tire fit
Adding track width with spacers changes how the tires sit relative to the fenders and steering geometry. The effect is most noticeable at full lock and when the suspension compresses over a bump. Wider tires add to the change, so the spacer, tire width and fender room should be considered together rather than one at a time.
Good practice is to check clearance at both steering lock positions and again after any tire size change. Watch for rubbing on the inner fender edge and for contact with the steering components. Keep the wheel nuts torqued to the required value and recheck them after the first few drives.
- Check clearance at both lock positions
- Recheck after any tire size change
- Watch for rubbing on the inner fender
- Inspect steering components for contact
Specifications
| Brand | Spidertrax Offroad |
|---|---|
| Part number | WHS021 |
| UPC | 809476041189 |
| Thickness | 1.75 inch |
| Bolt pattern | 5 on 5 |
| Material | 6061T6 aluminum |
| Finish | Anodized blue |
| Quantity | 2 spacers per kit |
Vehicle fitment
These spacers fit front and rear 2007-Present Jeep Wrangler JK axles. The Wrangler JK entry covers the JK generation from 2007 onward. They also fit front and rear Commander XK axles from 2006 onward and Grand Cherokee WK axles from 2005 to 2010.
Wrangler YJ and TJ, Grand Cherokee WJ and Liberty are not covered by this fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The studs come pre-installed and thread locker is included, so the spacers are mounted over the hub with the supplied lug nuts. Recheck lug nut torque after the first few drives, since a spacer adds a new mounting surface to the hub.
What’s included

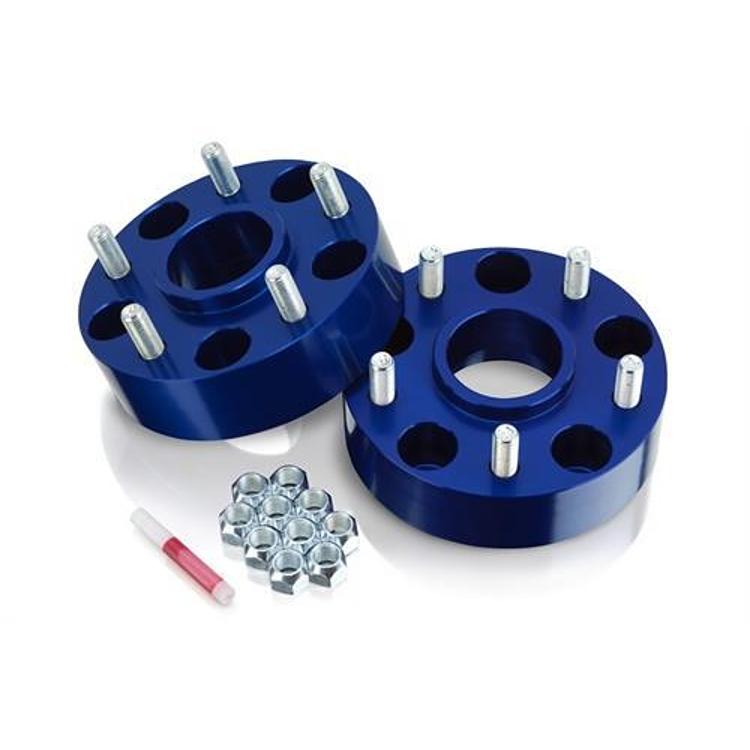

Two wheel spacers, 10 standard wheel studs (pre-installed), 10 lug nuts and a package of thread locker.
