Spidertrax Offroad Wheel Spacers (Anodized Blue) – WHS020

Spidertrax Offroad

$163.85In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 11:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Sized for a 5×4.5 bolt pattern, universal fit
  • 1.50 inch thick wheel spacers
  • 6061T6 aluminum with a double anodized dark blue finish
  • Kit includes 2 spacers, 10 wheel studs and 10 lug nuts

Description

Overview

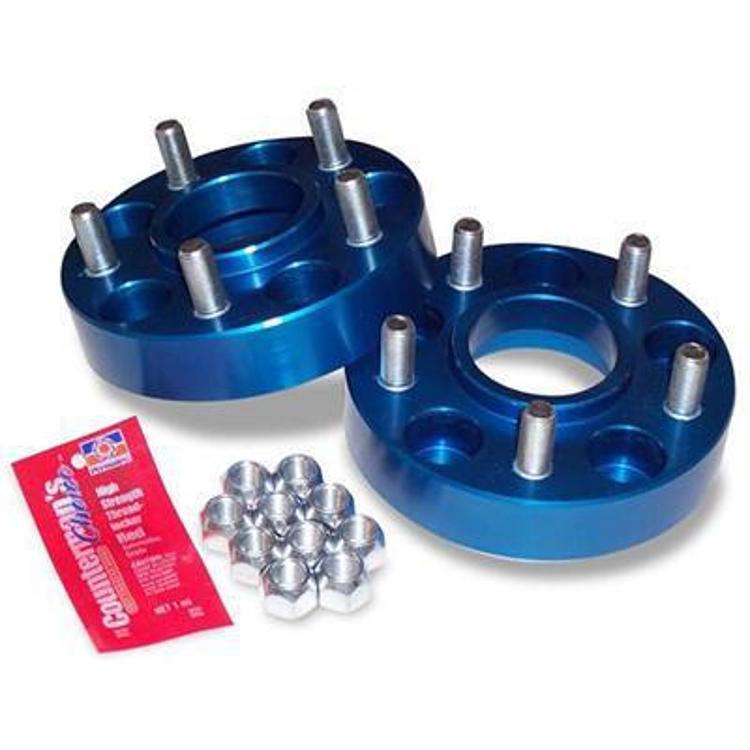

The Spidertrax Offroad WHS020 is a pair of 1.50 inch thick wheel spacers in anodized blue, sized for a 5×4.5 bolt pattern. The spacers are made of 6061T6 aluminum and double anodized in dark blue, which Spidertrax says gives twice the corrosion resistance.

Wheel spacers move the wheel outward on the hub, adding clearance for a wider stance or larger tires. Because the kit is sized by bolt pattern rather than by vehicle, confirm the 5×4.5 pattern matches your hub before ordering.

Key features

  • 1.50 inch spacer thickness for outward wheel clearance
  • 6061T6 aluminum construction
  • Double anodized dark blue finish for corrosion resistance
  • 5×4.5 bolt pattern
  • Includes 10 standard wheel studs, pre-installed, and 10 lug nuts
  • Kit includes Loctite
  • Made in the USA

Clearance and stance

A 1.50 inch spacer moves the tire outward, which can change how the tire clears the fender, control arms and brake components at full lock. Clearance is the first check before driving. Look at the inner edge of the tire when turned hard to each side, and listen for any rub on the sidewall.

Spacers also shift the scrub radius and steering feel, so the vehicle may pull or wander after fitting. Plan on an alignment check, and watch tire wear over the first portion of use.

Stud length, lug nut seat and torque all affect how the wheel stays put. Use the nuts included with the kit and tighten them to your vehicle’s specification in a star pattern. Recheck after the first short drive, when spacers have had a chance to seat.

  • Inspect tire inner edge after fitting
  • Set alignment after installation

Specifications

Brand Spidertrax Offroad
Part number WHS020
UPC 508696188424
Bolt pattern 5×4.5
Thickness 1.50 inch
Material 6061T6 aluminum
Finish Double anodized, dark blue
Quantity 2 wheel spacers
Included hardware 10 wheel studs (pre-installed), 10 lug nuts, Loctite
Origin Made in the USA

Vehicle fitment

The WHS020 is a universal fit spacer and is not built for one specific vehicle. Match the 5×4.5 bolt pattern and check clearance for your wheel and tire size.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Spacers change the relationship between the hub and the wheel, so check clearance at the fenders, brake calipers and suspension parts after installation. The kit supplies its own studs and lug nuts.

What’s included

Two Spidertrax wheel spacers, 10 standard wheel studs (pre-installed), 10 lug nuts and Loctite.

SKU: SPIWHS020 Category:

Specification

Shipping weight 8.50 lbs
Package dimensions 7.00 × 7.00 × 4.00 in
brands

Questions & Answers

Will these spacers fit my 5x4.5 vehicle?

The kit is sized for a 5x4.5 bolt pattern, so it matches hubs with that pattern. Confirm your year, model and hub before ordering, since the spacer is universal fit.

How thick are the Spidertrax WHS020 wheel spacers?

They are 1.50 inch thick. Each kit includes two spacers plus the studs and lug nuts needed to mount them.

What material and finish are the spacers?

They are 6061T6 aluminum with a double anodized dark blue finish. The anodizing is intended to resist corrosion, which suits road salt exposure.

What comes in the kit?

Each kit includes 2 wheel spacers, 10 standard wheel studs (pre-installed), 10 lug nuts and Loctite. The product is made in the USA.

Do spacers affect alignment?

They can. Moving the wheel outward changes scrub radius and steering geometry, so an alignment check after fitting is a common step. Look for uneven tire wear, pulling or a wheel that rubs on turns.

How should the spacer face be prepared?

Keep the spacer face clean and dry before mounting, since debris can cause the wheel to loosen. Check the nuts after the first drive and retorque them if they have moved.
