Overview

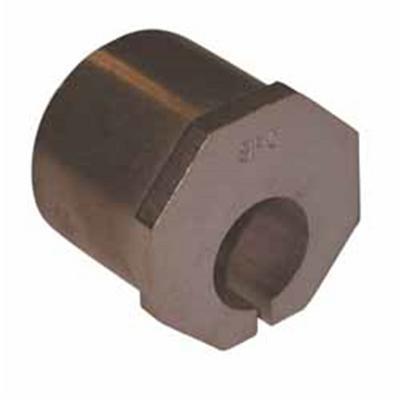

The Specialty Products 23224 is a one-degree alignment sleeve for the 2005–2015 Ford F-250 and F-350 Super Duty. It changes camber and caster by one degree, which is the amount this sleeve is built to correct.
Ford’s 2005 change to its heavy-duty axle is the reason these sleeves exist. They correct camber and caster on the Super Duty trucks covered here. Use the zero degree sleeve, part 23229, to work out how much change is needed before choosing a sleeve.
Key features
- One-degree change in camber and caster
- Adjusts camber and caster on the Super Duty axle
- Designed for the axle change Ford made in 2005
- Sold individually
- Zero degree sleeve used to set the amount of change
Reading the alignment numbers
Alignment readings are the starting point for any camber or caster correction. A reading taken before work begins shows how far the angles sit from the target, and that difference guides which sleeve to use. Taking a reading with the zero degree sleeve in place helps show how much change the axle needs before the correct sleeve is chosen.
The one-degree sleeve is a practical choice when the readings show a small offset, while larger offsets call for a different sleeve. Keep the tires at the right pressure and the steering centered during the reading, so the numbers reflect the truck’s actual setup. Ask the alignment shop to print the before and after figures for your records.
- Record camber and caster before the work starts
- Keep tire pressure correct during the reading
- Compare the readings to the target after installation
- Keep the printed alignment sheet with the truck’s records
Specifications
| Brand | Specialty Products |
|---|---|
| Part number | S/P23224 |
| Degree of change | One degree |
| Adjusts | Camber and caster |
| Position | Front |
| Sold as | Individual sleeve |
| Fitment | Direct fit |
Vehicle fitment
The sleeve fits the 2005–2015 F-250 Super Duty and F-350 Super Duty in Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL and XLT trims.
The sleeve is for the Super Duty trucks named in the list only. Confirm your vehicle’s year, model and trim before ordering.

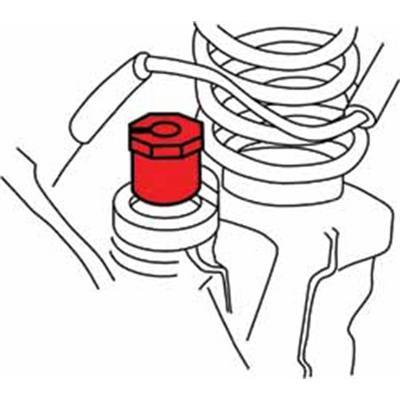

Installation notes
Use the zero degree sleeve to find the amount of change needed, then choose the sleeve that matches it. An alignment should be performed after the sleeves are fitted, since they change the camber and caster settings.
