Skyjacker 3.5 Inch Softride Lift Kit with Hydro 7000 Shocks – JK350BPHSR

Skyjacker

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch Softride lift for 2007-2018 Jeep Wrangler JK with Hydro 7000 shocks
  • Front and rear coil springs, adjustable front track bar and cam bolts
  • Rear track bar bracket, braces and extended links
  • Maximum tire size 35 x 12.50

Description

Overview

The Skyjacker JK350BPHSR is a 3.5 inch Softride coil spring lift kit with Hydro 7000 shock absorbers for the 2007-2018 Jeep Wrangler JK. The kit is a complete system with front and rear coil springs, a front track bar, cam bolts, rear track bar braces and extended links. It fits the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims of the Wrangler JK.

The spec sheet gives a lift height range of 3 to 4.99 inches and a maximum tire size of 35 x 12.50. The kit is built for owners who want a larger lift with a softer coil rate for on-road ride quality.

Skyjacker’s description says its kits for 2007-2015 JK models were tested and certified compliant with FMVSS 126, and that the lift keeps Electronic Stability Control performing as it did from the factory. This kit pairs the coils with Hydro 7000 shock absorbers.

Key features

  • Softride coil springs front and rear
  • Hydro 7000 shock absorbers included
  • Adjustable front track bar
  • Front and rear cam bolts for alignment
  • Rear track bar bracket and braces
  • Rear extended sway bar links and bumpstop relocation
  • Hot wound 5160 spring material
  • Maximum tire size 35 x 12.50

Before you buy

A lift kit changes how the axles sit under the body, so the parts it works with matter as much as the new ones. Coil spring lifts often leave the stock track bar and control arms working at new angles, which is why the track bar and cam bolts are part of the setup rather than optional extras. Think about how the vehicle is driven most. A softer coil rate suits daily driving on pavement, while a heavier trail setup may call for a different spring rate.

Shock absorbers wear over time, and new springs at a higher height can make old shocks feel tired. Replacing them at the same time keeps the ride balanced. Bump stops, sway bar links and steering stabilizers are also worth inspecting before installation, because they are the parts most often replaced alongside a lift.

  • Check ball joints and tie rod ends for play before installing
  • Inspect brake lines for stretch after the height changes
  • Re-torque cam bolts and track bar fasteners after the first few drives

Specifications

Brand Skyjacker
Part number JK350BPHSR
UPC 803696222240
Lift height range 3 to 4.99 inches
Suspension type Coil spring kit
Rear lift method Coil springs
Shocks Hydro 7000
Spring material Hot wound 5160
Maximum tire size 35 x 12.50

Vehicle fitment

It is designed for 2007-2018 Jeep Wrangler JK models in the trims named above. The Wrangler Unlimited is not among the covered models.

Confirm your body style before ordering, since the Wrangler Unlimited is not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The adjustable front track bar and cam bolts are needed to set the axle position and caster for this lift. Have the front end aligned after installation, and check the driveline angles at both ends.

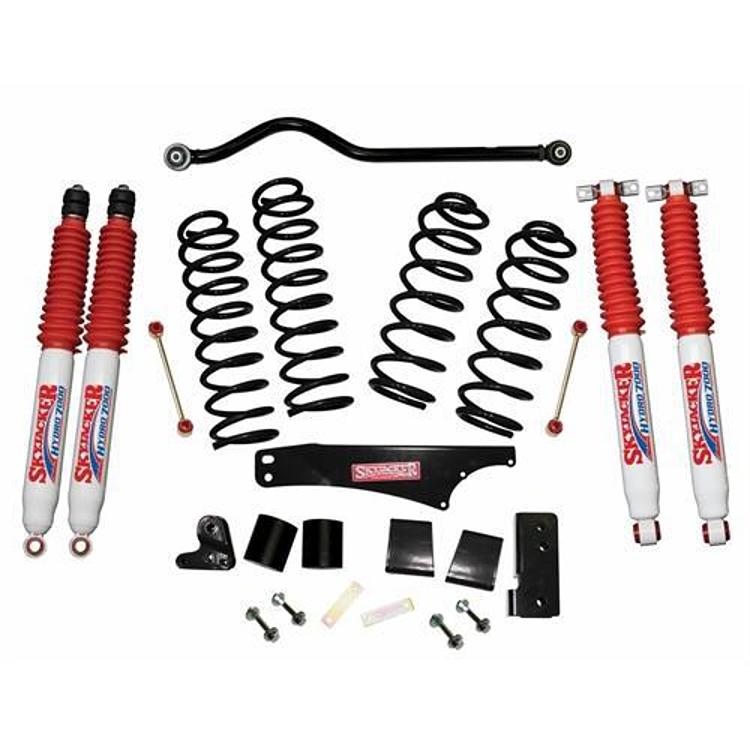

What’s included

The kit includes front and rear Softride coil springs, front and rear cam bolts, an adjustable front track bar, a rear track bar bracket and braces, rear extended links, bumpstop relocation parts and Hydro 7000 shock absorbers.

SKU: SKYJK350BPHSR Category:

Specification

Shipping weight 96.60 lbs
Package dimensions 39.00 × 11.80 × 10.80 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK350BPHSR fit a 2014 Jeep Wrangler JK Rubicon?

Yes. It fits the 2007-2018 Jeep Wrangler JK Rubicon, which is one of the covered trims. Confirm the year and model before ordering.

Does this kit include a track bar?

Yes, it includes an adjustable front track bar and a rear track bar bracket with braces, which are needed for the lift's steering and axle geometry.

How much lift does the JK350BPHSR provide?

The kit is named as a 3.5 inch lift, and the spec sheet gives a lift height range of 3 to 4.99 inches. The final height depends on the vehicle, load and tire size.

Do the shocks need replacing with a lift?

Not always, but many owners replace them. The new springs change ride height and shock angle, and worn shocks can make the lift feel loose. Inspect them for leaks and listen for knocking over bumps before deciding.
