Overview
The Skyjacker JL25BPMLT is a 2 to 2.5 inch dual rate long travel coil spring lift for the 2018 Jeep Wrangler JL 4-door non-Rubicon. It is the M95 shock version of the JL25BPBLT. It fits the Unlimited Sahara, Unlimited Sport and Unlimited Sport S trims.
The dual rate coils are designed to ride closer to stock on the highway, then firm up in the second rate under heavy compression. The kit includes extended front sway bar end links and bump stop extensions. The spec sheet gives a maximum tire size of 37 x 12.50 for street articulation and 35 inches for full off-road articulation, with a recommended 9 inch wheel at zero offset.

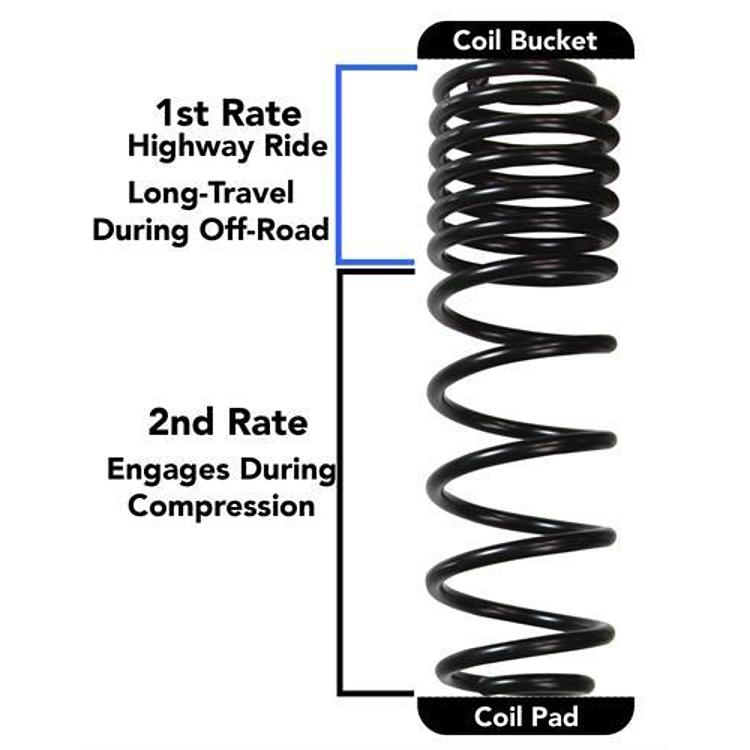

In this dual rate design, the first rate handles highway ride and the second rate engages only after compression goes past the first. The second rate helps control body roll and heavy off-road movement. The coils are designed to keep the upper coil seated at full droop.
Key features
- Dual rate long travel coil springs front and rear
- Four M95 long travel shock absorbers included
- Extended front sway bar end links for full droop
- Front and rear bump stop extensions
- Grade 8 mounting hardware
Shock choice and long travel
Long travel shocks extend farther than standard shocks, which lets the wheels reach further over obstacles. The shock body, piston design and valving all affect how the vehicle feels when it rolls, dives or rebounds. Comparing the shock with the coils is useful, because a shock that is too short or too long for the travel can limit the benefit of the kit.
Shocks are one of the parts most affected by long travel use. Check for leaks at the seals, listen for knocking at the mounts and make sure the bushings are not split. Keep the mounting hardware tight after the first few drives, since it carries the load as the suspension cycles through its range.
- Look for oil residue on the shock body
- Check upper and lower mounting bushings
- Re-torque the hardware after the first few drives
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | JL25BPMLT |
| UPC | 803696256597 |
| Lift height range | 2 to 2.5 inches |
| Suspension type | Coil spring kit |
| Front shocks | M95 long travel |
| Rear lift method | Coil springs |
| Maximum tire size | 37 x 12.50 street; 35 inch off-road full articulation |
| Recommended wheel | 9 inch, 0 offset |
Vehicle fitment
It fits the 2018 Jeep Wrangler JL Unlimited Sahara, Unlimited Sport and Unlimited Sport S. It is for 4-door non-Rubicon models.
Rubicon models use the JL25RBPMLT and are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The extended sway bar end links and bump stop extensions are part of the travel setup, so install them with the coils. Check the front and rear height and the brake line length after the install.
What’s included

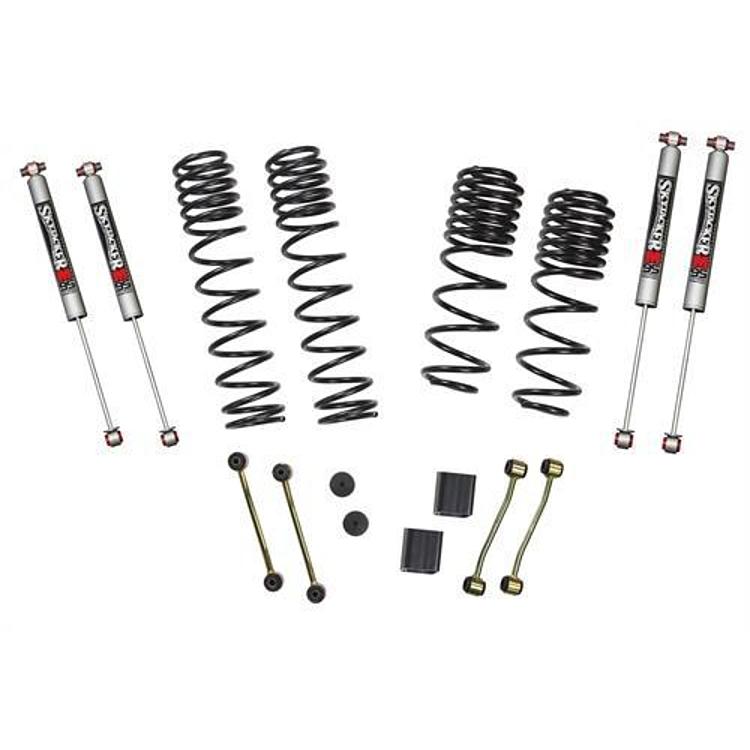

The kit includes dual rate front and rear coil springs, four M95 long travel shock absorbers, extended front sway bar end links, front and rear bump stop extensions and grade 8 mounting hardware.
