Rugged Ridge XHD Wheel, 17x9 with 5 on 5 Bolt Pattern – Gunmetal Gray – 15301.30

Rugged Ridge

Shop Rugged Ridge Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rugged Ridge XHD 17×9 hub-centric wheel, part number RUG15301.30
  • 5 on 5 bolt pattern, gunmetal gray finish
  • Stainless steel button-head cap screws and optional trim ring
  • Fitment is not one clear model match; confirm year and model

Description

Overview

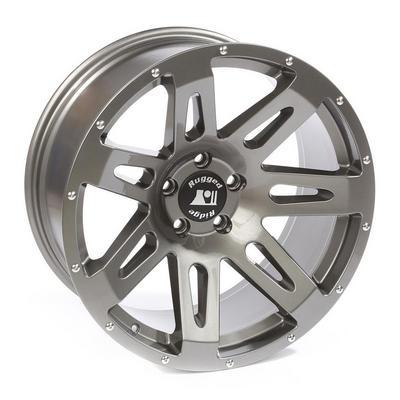

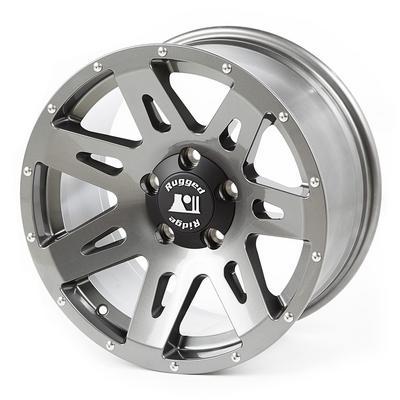

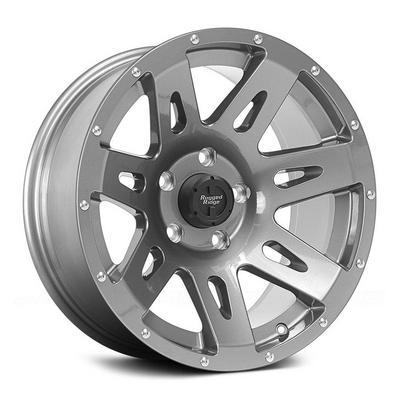

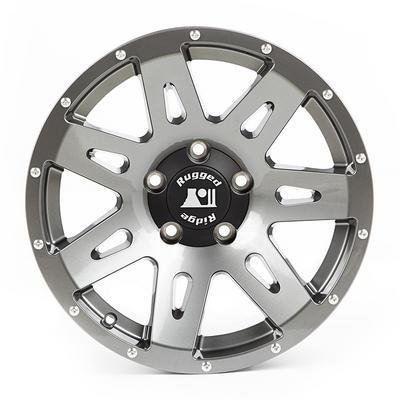

The Rugged Ridge XHD wheel, part number RUG15301.30, is a 17×9 split spoke aluminum wheel in gunmetal gray with a 5 on 5 bolt pattern. It is hub-centric, so the wheel centers over the hub. The hub design is built around 2007-2019 Wranglers and Gladiators, and Gladiator model years start in 2020, so confirm your exact year and model before fitting.

The XHD is a custom wheel design for Jeeps. Its hub-centric fit is intended to avoid wheel vibration and give proper clearance for brake rotors, steering components and suspension. It is designed for SAE J2530 wheel strength and durability.

Key features

  • Hub-centric design that centers the wheel over the hub
  • Stainless steel button-head socket cap screws around the outer face for a three-piece look
  • Optional trim ring for added styling
  • Polished center cap that replicates a manual hub
  • Powder coated finishes and a dual-stage polished chrome option
  • Tested to SAE J2530 standards, per the brand

Hub-centric fit and vibration

Hub-centric wheels transfer their load through the center bore, and the lug nuts mainly clamp the wheel. If the bore does not match the hub, the wheel can sit off center and cause vibration at speed. Confirm the hub size before mounting, and use hub rings only when the bore is larger than the hub.

Split spoke wheels with a three-piece look often have exposed fasteners on the outer face. Check these fasteners for tightness after the first few drives, and keep the trim ring and center cap clean so they seat correctly. Inspect the barrel after trail use for dents near the bead.

  • Confirm hub bore against the wheel center bore
  • Check outer face fasteners after the first drive
  • Keep center cap seated and clean

Specifications

Brand Rugged Ridge
Part number RUG15301.30
Series XHD
Style Split Spoke
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 5 on 5
Center bore 72
Offset -12mm
Backspacing 4.53 inch
Finish Gunmetal gray
Construction Aluminum
Strength standard SAE J2530, tested and certified per the brand
Warranty Limited lifetime structural warranty and 1 year finish warranty
Design patent US Patent No. D761,183

Vehicle fitment

The hub is built for 2007-2019 Wranglers and Gladiators, and Gladiator (JT) model years start in 2020. Confirm your exact year and model before fitting.

Cherokee, Grand Cherokee and other Jeep models are not covered by this wheel. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Hub-centric fitment depends on the hub bore matching the wheel’s 72 center bore, so confirm the hub size before mounting. Check brake rotor, steering and suspension clearance, especially with the -12mm offset and 4.53 inch backspacing.

What’s included

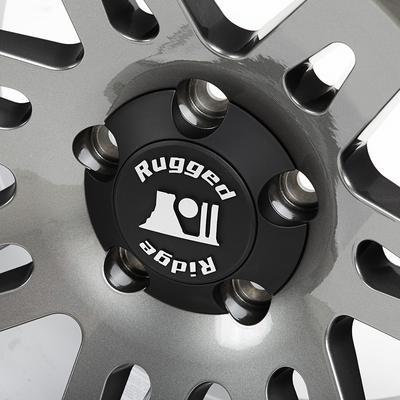

Each wheel comes with a UV-treated polished center cap that replicates a manual hub. The optional trim ring is not included.

SKU: RUG15301.30 Categories: ,

Questions & Answers

Which vehicles does the XHD wheel fit?

The hub is built for 2007-2019 Wranglers and Gladiators. Gladiator model years start in 2020, so confirm your exact year and model before fitting.

What is the bolt pattern and center bore?

The wheel is 5 on 5 with a 72 center bore and a hub-centric design. It has a -12mm offset and 4.53 inch backspacing. Check these against your hub before fitting.

Does it include a center cap?

Yes. Each wheel comes with a UV-treated polished center cap that replicates a manual hub. The optional trim ring is not included.

What finishes are offered?

Options include satin black powder coated, satin black with machined lip, silver powder coated and dual-stage polished chrome. This wheel is gunmetal gray.

Why does a hub-centric wheel vibrate?

Vibration often comes from a wheel that is not centered on the hub, or from a bore that does not match the hub size. Confirm the bore, check that the wheel seats flat, and tighten the lug nuts evenly before driving.
