Overview

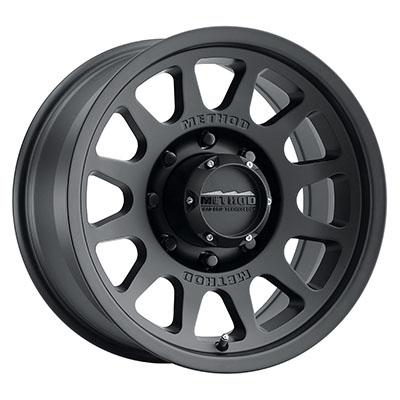

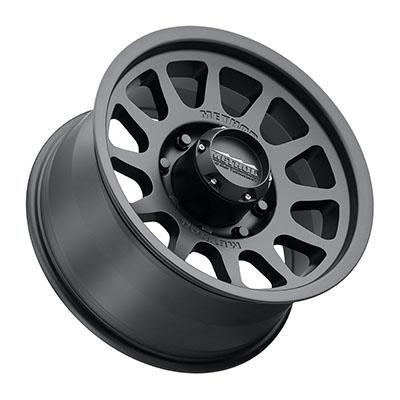

The Method Race Wheels MR703 17×8.5 in matte black uses an 8 on 170 bolt pattern and a 131 center bore. Part number MRWMR70378587500 identifies this windowed aluminum wheel, which belongs to the MR703 Bead Grip series.
Method Race Wheels builds wheels for off-road racing, and each design goes through Finite Element Analysis and field tests. The design goal is a wheel with less weight and more strength.
Key features
- Windowed style in a 17-inch diameter and 8.5-inch width
- Matte black finish on aluminum construction
- 8 on 170 bolt pattern with a 131 center bore
- Offset of 0 and backspacing of 4.75
- Engineered with Finite Element Analysis and field testing
Eight-lug hub considerations
An 8 on 170 pattern is used on heavier trucks and some larger vehicles, and the wheel and hub need to match on every point. Lug count and bolt circle decide whether the wheel can seat at all, while center bore decides how well it centers. When the center bore is larger than the hub, hub-centric rings are often used to take the load off the lug studs.
Tighten each nut in a star pattern and recheck after the first few drives, since heavier wheels and larger tires can settle the mounting surface. Wheel spacers change offset and can strain studs if they are not made for the application, so choose them carefully. Inspect studs for stretching or thread damage before mounting new wheels.
- Match lug count and bolt circle
- Use hub-centric rings when the center bore is larger
- Tighten lugs in a star pattern
- Inspect studs for thread damage
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70378587500 |
| Series | MR703 Bead Grip |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Windowed |
| Finish | Matte black |
| Construction | Aluminum |
Vehicle fitment
The wheel carries a universal fit label, so it is not matched to one named year, make, model or trim. Fit is decided by hub specifications: the 8 on 170 bolt pattern, 131 center bore, 0 offset and 4.75 backspacing must agree with the vehicle you plan to mount it on.
Only general fit language is given for this wheel, and a 5-lug or 6-lug hub will not match the 8 on 170 pattern. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel with the specifications listed above.
Not included: Lug nuts, valve stems and tires are not included with the wheel.
