Pro Comp 63 Series Recon, 20x10 Wheel with 8x170 Bolt Pattern – Satin Black Milled – 5163-217047

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5163-217047: 20×10 aluminum spoke wheel, 63 Series Recon, satin black milled
  • 8 on 170 bolt pattern, center bore 125, offset -18, backspacing 4.75
  • Pro Comp alloy load rating of 2500 to 3650 lbs per wheel
  • No vehicle is named for this wheel

Description

Overview

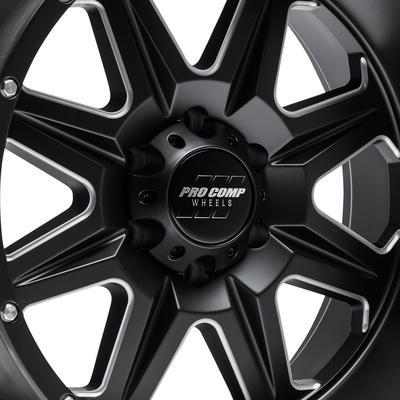

The Pro Comp PXA5163-217047 is a 20×10 aluminum spoke wheel from the Pro Comp 63 Series Recon line, in satin black milled with an 8 on 170 bolt pattern. It is sold as one wheel with a center bore of 125.

This spoke wheel uses low-pressure casting and is rated from 2500 to 3650 lbs per wheel across the Pro Comp alloy line. Its 10-inch width, -18 offset and 4.75 backspacing set how far the tire sits from the mounting face and the brake parts.

Key features

  • Low-pressure cast aluminum
  • Spoke face style
  • 20-inch diameter and 10-inch width
  • 8 on 170 bolt pattern
  • Center bore of 125
  • Offset -18 with 4.75 backspacing

Eight-lug hub fitment checks

Eight-lug hubs on a 170 pattern use a larger circle than many six-lug layouts, so the wheel must match the hub circle exactly. Lug holes that line up but sit off-center can pull the wheel out of true. Test-fit the bare wheel before mounting a tire, and make sure the lug seats match the nuts you plan to use.

A 125 center bore has to seat on the hub pilot so the wheel runs true. A mismatched pilot can cause vibration and uneven lug loading. The -18 offset places the tire outboard, so check fender and steering clearance at full lock. Check the tire’s bead seat for the 10-inch rim width, and re-torque lug nuts after the first drives.

  • Confirm the pilot diameter before fitting
  • Test-fit the bare wheel first
  • Check fender clearance at full steering lock

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5163-217047
Series 63 Series Recon
Style Spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 8 on 170
Center bore 125
Offset -18
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

No vehicle is named for this wheel. It is a universal design, not built for a particular truck or Jeep. An 8 on 170 hub with a 125 center bore is required, and the -18 offset needs a clearance check against the fender.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Eight lug holes at 170 must line up exactly with the hub. Test-fit the 10-inch rim with the tire mounted to confirm the caliper and suspension have room at full steering lock. Because the eight-lug 170 spacing is paired with a 125 center bore, the hub pilot must be the same diameter for the wheel to center. The 10-inch width needs a tire whose bead seat matches that rim, and the -18 offset pushes the tire outboard, so the inner fender and steering components should be measured with the tire fitted.

What’s included

One 20×10 aluminum spoke wheel. Confirm the fasteners your eight-lug hub needs before installing.

SKU: PXA5163-217047 Categories: ,

Questions & Answers

What bolt pattern is the PXA5163-217047?

It has an 8 on 170 bolt pattern and a center bore of 125. The offset is -18 and the backspacing is 4.75. Match these figures to the hub before buying.

Are lug nuts included with the Recon 8 on 170 wheel?

Lug nuts and a center cap are not confirmed for this wheel, so ask the seller before buying. Match the eight lug holes at 170 and the 125 center bore to the hub, since a mismatch will not seat.

Is this 20x10 Recon made for a specific vehicle?

No vehicle is named. Its universal fit label does not identify a model, so check the 8 on 170 pattern and -18 offset against your truck or SUV.

Do eight-lug wheels need different lug nuts than six-lug wheels?

The nut type depends on the seat style and stud size, not the lug count alone. Match the seat shape to the wheel's lug holes and the stud thread. Using the wrong seat can loosen the wheel over time.
