Overview
The Rubicon Express RE7003 is a 3.5 inch Super-Flex short arm lift kit for the 1997 to 2006 Jeep Wrangler (TJ). The kit does not include shocks. It improves on the factory ride while adding 3.5 inches of lift for more flexibility and articulation.
It suits TJ owners who want less lift than the 4.5 inch system at a lower price. The 3.5 inch kit can be upgraded to the 4.5 inch system later.
Key features
- Super-Flex short arm system
- PT-Meg Super-Ride bushings, designed for on and off-road performance

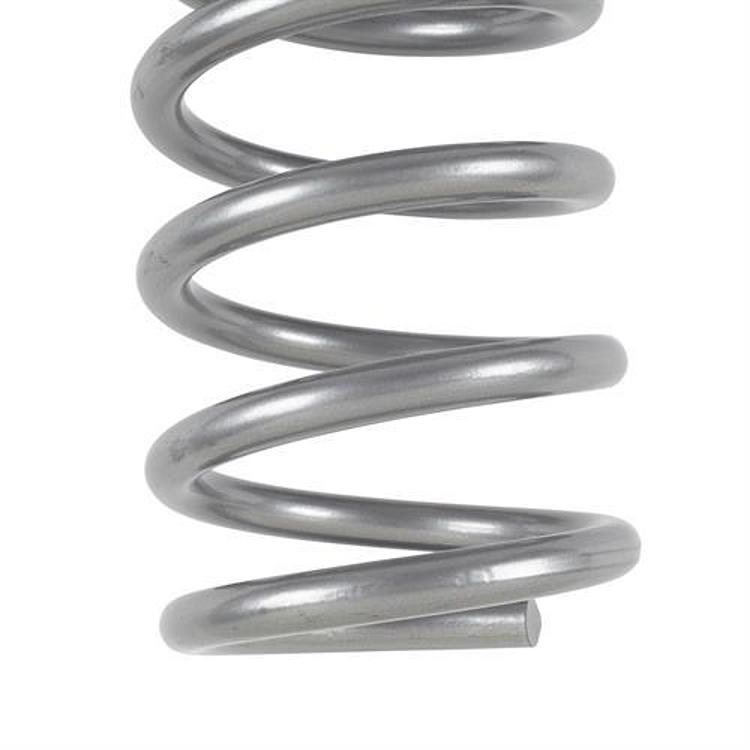

- Tuned lift springs
- Stainless steel front brake lines

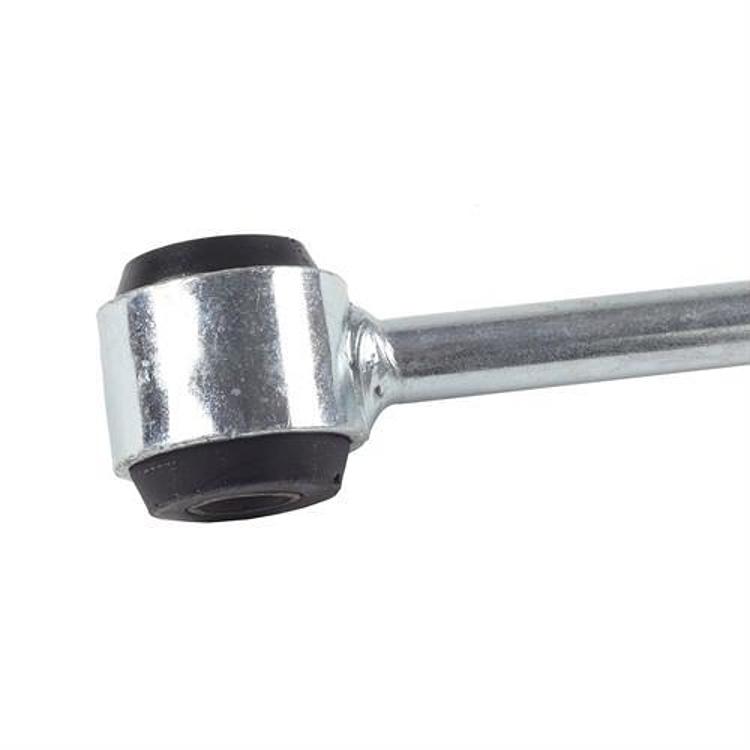

- Front and rear lower fixed control arms
- SYE and rear CV drive shaft available as options
Choosing shocks for the lift
Shocks do more work once a vehicle is lifted. The arms and springs change suspension angles, so the damper has to control the new travel without bottoming out early. When picking shocks for a 3.5 inch Super-Flex setup, look for a length that matches the extended and compressed range of the new arms, and a damping rate that suits how the Jeep is driven, whether mostly on pavement or over rocky trails.
Most owners fit shocks at the same time as the arms, because stock units were tuned for factory ride height. Check the stroke against the new suspension travel, and confirm the upper and lower mounts line up once the arms are in place.
- Measure extended and compressed length before ordering
- Match damping to on-road or off-road use
- Inspect bushings and ball joints during the install
- Re-check shock mounts after the first drives
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7003 |
| UPC | 614901441628 |
| Suspension type | Short arm, Super-Flex |
| Lift height range | 3 to 4.99 inches |
| Rear lift method | Coil springs |
| Bushings | PT-Meg Super-Ride |
| Front brake lines | Stainless steel |
| Control arms | Front and rear lower, fixed |
| Shocks | Not included |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1997 to 2006 Jeep Wrangler (TJ).
It fits 1997 to 2006 Wrangler TJ models. Confirm fit for your vehicle’s year, model and trim before ordering, including any 2004 to 2006 Wrangler LJ.
Installation notes
The kit does not include shocks, so the shocks you fit must suit the 3.5 inch lift. Lift kits also need an alignment after installation, and the driveline angles should be checked.
What’s included
Tuned lift springs, PT-Meg Super-Ride bushings, stainless steel front brake lines, and front and rear lower fixed control arms.
Not included: Shocks. The SYE and rear CV drive shaft are options, not standard parts.
