Rubicon Express 4.5 Inch Extreme Duty 4-LINK Long Arm Lift Kit – JK4424

Rubicon Express

Shop Rubicon Express Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch lift from an extreme-duty 4-link long arm system
  • Adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Installs without welding; shocks not included
  • No model years listed, so confirm fitment before ordering

Description

Overview

The Rubicon Express JK4424 is a 4.5-inch lift kit built around an extreme-duty 4-link long arm suspension in the JK line. It uses chromoly upper and lower control arms with Super-Flex spherical ball joints and PT-Meg Super-Ride bushings, which keep the suspension flexible for articulation on uneven ground.

This long arm setup suits owners who want a system that holds up on rough trails and still drives reasonably well on pavement. Rubicon Express also offers the same system in 3.5-, 4.5- and 5.5-inch lift heights, with optional high-performance monotube shocks. This version is the 4.5-inch kit without shocks.

Key features

  • 4.5-inch lift height, within the 3 to 4.99-inch range
  • Extreme-duty 4-link long arm system with a 4-link rear lift method
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints for articulation
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember for added durability and frame rigidity
  • Designed for installation without welding
  • Optional belly pan and CNC-machined steering knuckle upgrades

Choosing a long arm setup

A long arm suspension links each axle to the frame through arms that control fore-aft position and let the wheels travel up and down. The links share the load, so the axle stays located under acceleration and braking. Long arms are a common choice for trail use because the geometry allows smooth articulation, but changed arm angles also affect ride height and steering feel compared with factory parts.

Before buying, consider how the vehicle is driven most. Highway speeds reveal wander or vibration sooner than trail work does, so plan a test drive after the alignment. Some builds also need a driveline check and a steering upgrade. Keep the control arms and joints clean, and inspect boots and bushings after each rough outing.

Specifications

Brand Rubicon Express
Part number JK4424
UPC 70000651243
System type Extreme-duty 4-link long arm lift
Lift height 4.5 inches (manufacturer range 3 to 4.99 inches)
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Transmission crossmember Full width
Shocks Not included; optional high-performance monotube shocks available
Made in USA

Vehicle fitment

Fit depends on your vehicle’s year, model and trim, so confirm those before ordering. This kit belongs to the JK suspension line.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 4-link long arm conversion changes control arm angles and pinion geometry, so have the alignment and driveline angles checked once the kit is in. The belly pan and CNC steering knuckle are optional add-ons and are not part of the base kit.

What’s included

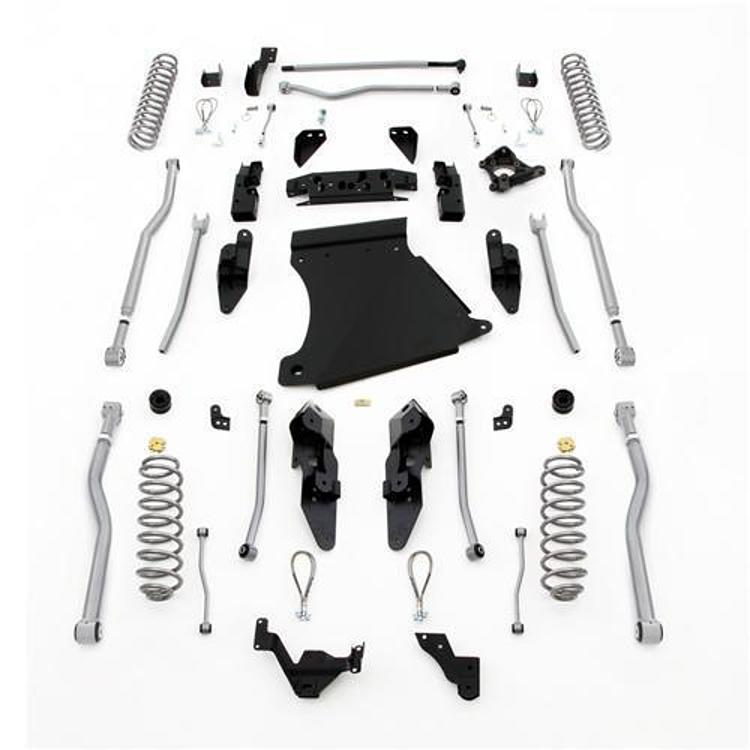

The named parts are the upper and lower control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings and the full-width transmission crossmember.

Not included: shock absorbers. High-performance monotube shocks are offered as an upgrade for this system.

SKU: R/EJK4424 Category:

Specification

Shipping weight 271.10 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the JK4424 come with shocks?

No. The fitment details list shocks as not included. Rubicon Express offers high-performance monotube shocks as an option for this system, so choose the shock setup that matches your build before you order the rest of the suspension.

Can the JK4424 be installed without welding?

Yes. The kit is designed for installation without welding, and its full-width transmission crossmember is one of the included parts that supports the install.

What lift height does the JK4424 give?

It gives 4.5 inches of lift. That height falls within the 3 to 4.99-inch lift range, and the same 4-link system is also offered at 3.5 and 5.5 inches.

Which vehicles does the JK4424 fit?

Confirm fit for your year, model and trim before ordering. The JK4424 is a JK suspension kit built around an extreme-duty 4-link long arm layout.

How often should the joints and bushings be inspected?

Inspect them after rough trail use and at regular service intervals. Look for torn boots, play in the joints, and cracked or compressed bushings. Replacing worn parts early helps keep the articulation and alignment steady.
