Rubicon Express 3.5 Inch Extreme Duty Radius

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch Extreme Duty radius long arm suspension for the Jeep Wrangler JK

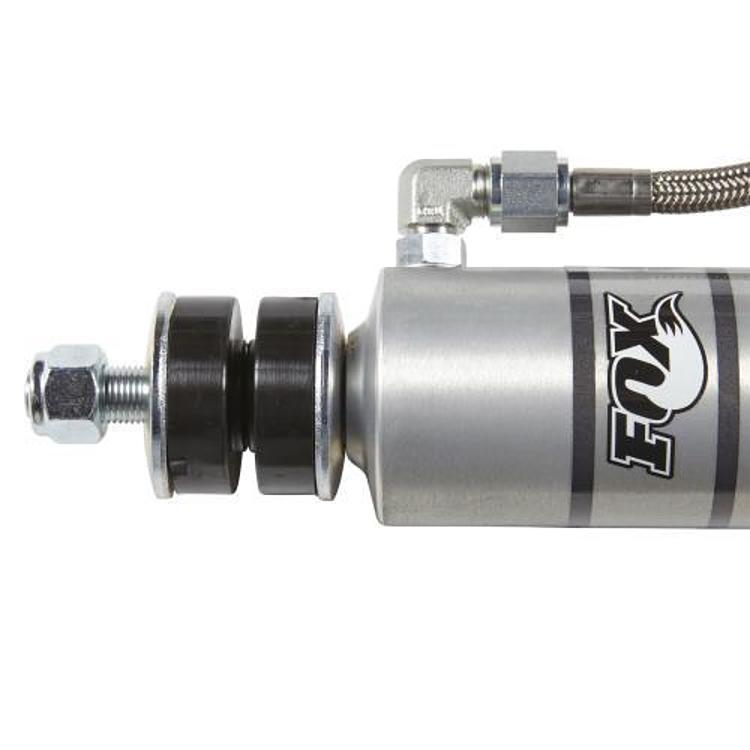

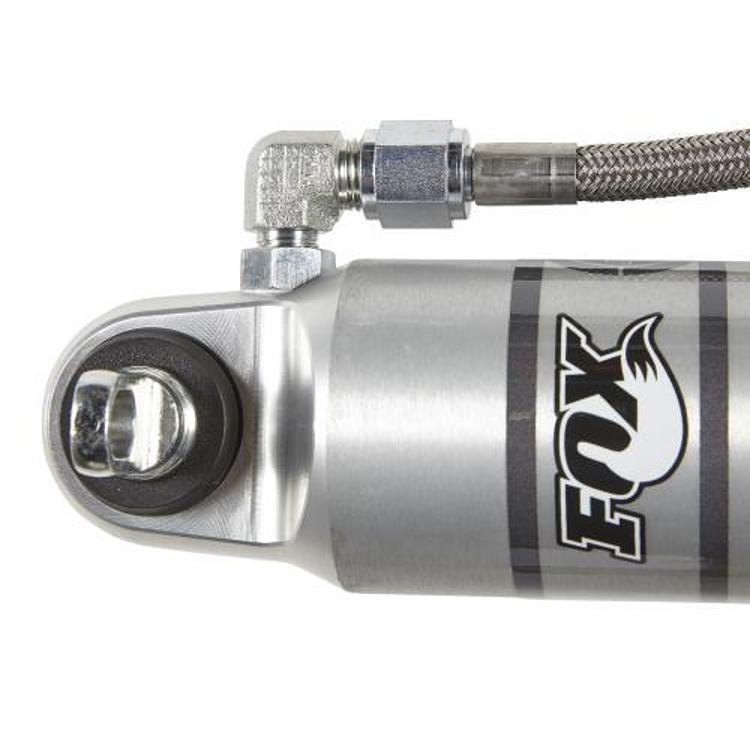

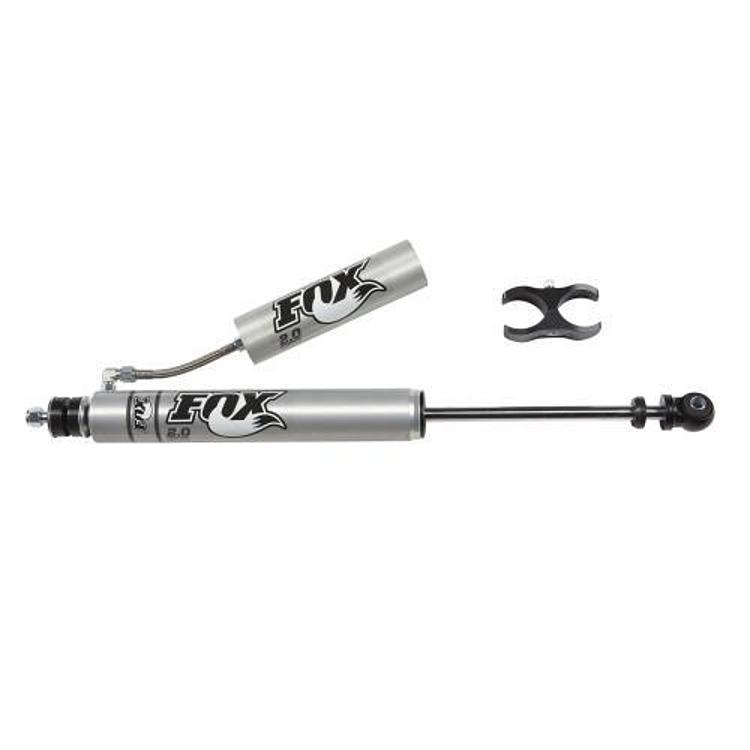

  • Front and rear Fox Performance Resi shocks with remote reservoirs included
  • Chromoly upper and lower control arms with super-flex spherical ball joints
  • Full width transmission crossmember; no welding required

Description

Overview

The Rubicon Express 3.5 Inch Extreme Duty Radius with Fox Performance Resi shocks is a 3.5 inch front and rear radius long arm kit for the Jeep Wrangler JK. It is one of the TAP exclusive kit numbers from Rubicon Express for owners who want Fox branded shocks, and these kit numbers cover the most popular Jeep JK suspension systems.

The Fox shocks in this version are Performance Resi shocks with a reservoir. The control arms are chromoly and adjustable, the ball joints are super-flex spherical, and the bushings are PT-MEG super-ride. The kit includes a full width transmission crossmember and requires no welding.

Key features

  • 3.5 inch lift height
  • Front and rear radius long arm system
  • Front and rear Fox Performance Resi shocks
  • Chromoly upper and lower control arms
  • Adjustable control arms
  • Super-flex spherical ball joints
  • PT-MEG super-ride bushings
  • Full width transmission crossmember

Choosing shocks for long arm lifts

Shock length and stroke matter more on a long arm lift than on a stock setup, because the wheels travel through a larger range. A shock that is too short can bottom out, while one that is too long can bind at full extension. Reservoir shocks need clearance for the remote body, so route the hose away from heat and moving parts.

Long arm systems also change the angle at which the shock works, which affects damping feel on rough ground. Owners who run wider tires or heavier bumpers often revisit the shock setup later. Keeping track of mounting hardware and bushing wear helps the shocks perform as designed.

  • Check shock mounts after the first few drives
  • Look for hose rubbing near the frame
  • Inspect bushings at each oil change
  • Recheck driveline angles after shock changes

Specifications

Brand Rubicon Express
UPC 700008204461
Lift height 3.5 inch; the fitment table gives a 2.5 to 3.5 inch range
Suspension type Extreme Duty front radius and rear 4-link
Control arms Chromoly, adjustable
Ball joints Super-flex spherical
Bushings PT-MEG super-ride
Shocks Fox Performance Resi, front and rear, included
Crossmember Full width transmission crossmember
Welding None required

Vehicle fitment

It is a Wrangler JK kit for 2007-2018 model years.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Alignment and driveline angles change with a 3.5 inch long arm lift, so both should be checked after the kit is installed. Fox Performance Series shocks carry their own warranty from Fox and do not qualify for the Rubicon Express Advantage Warranty.

What’s included

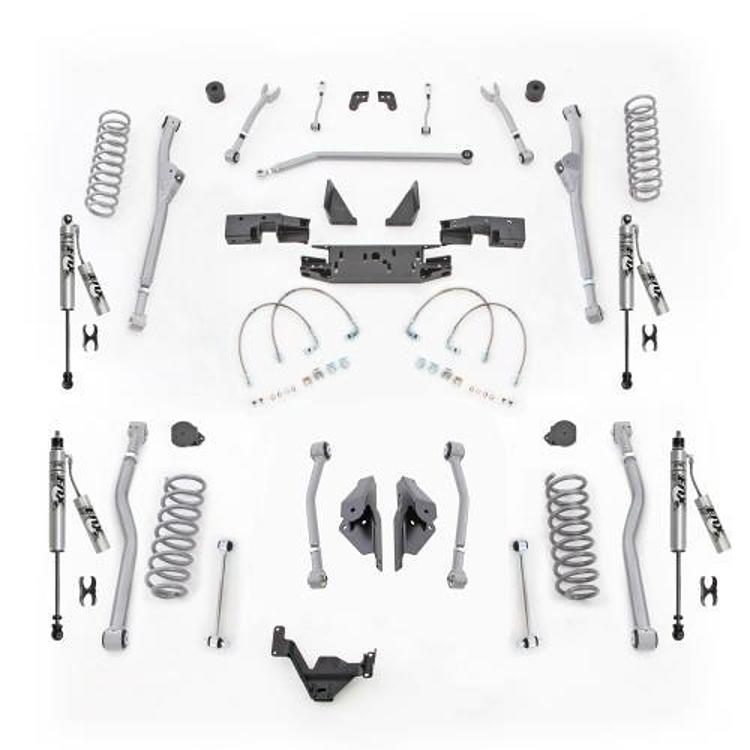

Chromoly control arms, super-flex ball joints, PT-MEG bushings, the full width transmission crossmember and front and rear Fox Performance Resi shocks.

SKU: R/EJKR423FPR Category:

Specification

Shipping weight 298.20 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How does this kit differ from the standard Fox Performance version?

This version includes Fox Performance Resi shocks with remote reservoirs, while the other kit uses Fox Performance shocks. Both are 3.5 inch radius long arm kits for the Wrangler JK.

Does this kit fit a Wrangler JK?

Yes. It is written for the 2007-2018 Jeep Wrangler JK, and these kit numbers cover the most popular Jeep JK suspension systems. Confirm your year, model and trim before ordering.

Are the Fox shocks covered by a warranty?

Yes. Fox Performance Series shocks carry their own Fox warranty and do not qualify for the Rubicon Express Advantage Warranty. Keep the Fox paperwork with your records if a claim is needed.

How do I tell if the shocks are wearing out?

Look for oil leaks around the body or reservoir, and watch for fading control or unusual noise over bumps. Inspect the mounts and bushings at the same time, since loose hardware can mimic shock wear.
