Overview
The Rubicon Express RE7142 is a 3.5 inch standard coil lift kit without shocks for 2007–2018 Jeep Wrangler JK Unlimited four-door models. It replaces the front and rear coil springs and adds caster and pinion adjustment, bump stops, an adjustable front track bar and extended sway bar end links.
The RE7142 is a low-cost suspension package for the Wrangler JK that keeps the existing control arms. It is designed for 33 or 35 inch tires, with a lift height range of 3 to 4.99 inches.
The kit can be upgraded later to a 3.5 to 4.5 inch Super-Flex or a 3.5 to 4.5 inch Extreme-Duty long arm system by adding components. Long arm suspension has been offered for the JK Wrangler since 2006.
Key features
- Front and rear replacement coil springs
- Front and rear cam bolts for caster and pinion adjustment
- Front and rear bump stops

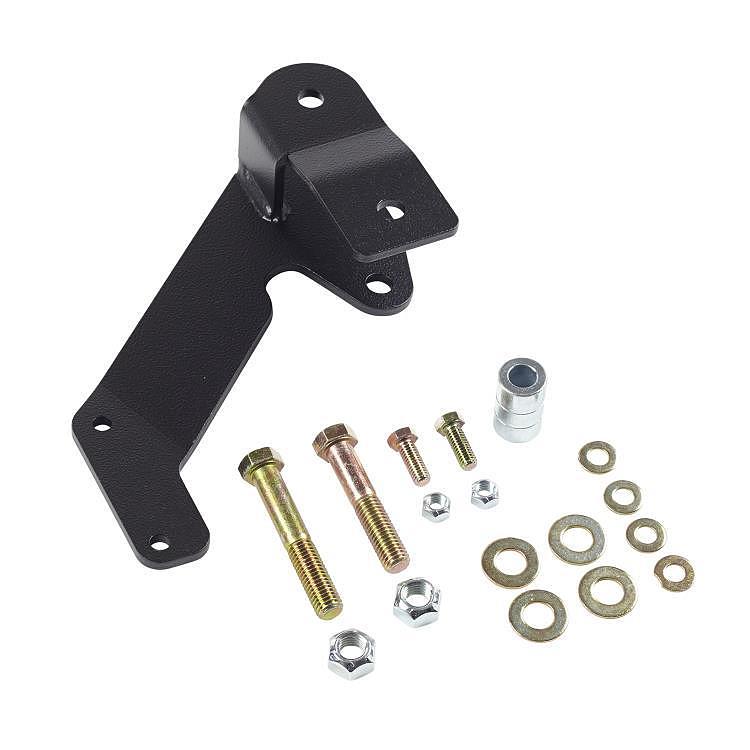

- Adjustable front track bar and rear track bar bracket

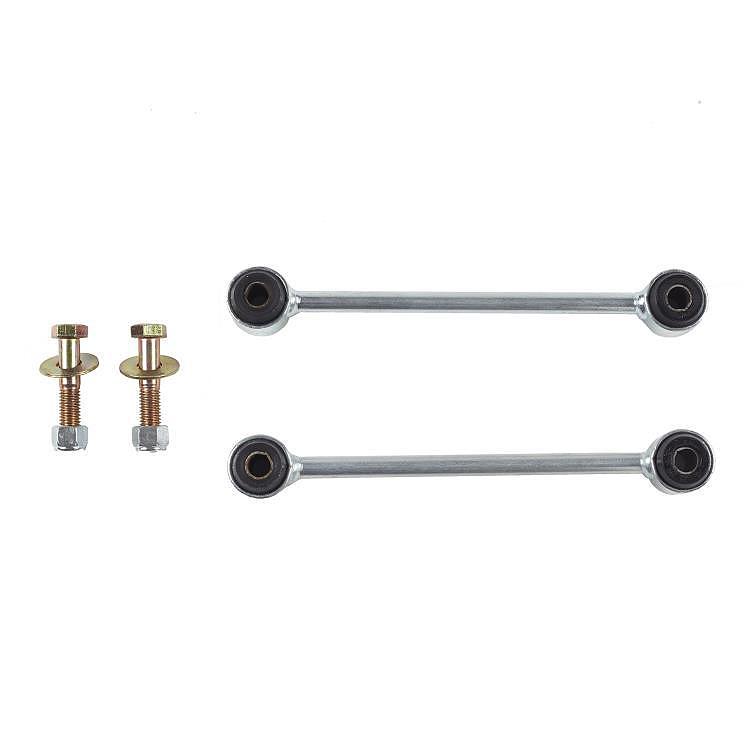

- Extended sway bar end links
- Original control arms retained
- Designed to upgrade later to a 3.5 to 4.5 inch Super-Flex or Extreme-Duty long arm system
Setting caster and pinion
Cam bolts are the adjustment points that set caster and pinion angle after a coil lift with retained control arms. Caster affects steering return and straight-line tracking, while pinion angle affects driveline vibration. Setting both carefully helps the lift ride smoothly and wear the drivetrain evenly, and it is best done on an alignment rack with a driveline check.
Because the control arms stay in place, the adjustable front track bar is a key part of the alignment. Check its ends for play and its bushings for cracking during service. Long arm upgrades later change geometry more than the coil springs do, so plan a fresh alignment if those are added.
- Mark cam bolt positions before loosening them
- Check driveline angles after alignment changes
- Inspect track bar ends for play at each service
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7142 |
| UPC | 614901441741 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Kit type | Standard kit |
| Rear lift method | Coil springs |
| Shocks included | No |
| Tire size | 33 or 35 inch |
| Fitment | Direct fit |
Vehicle fitment
It fits 2007–2018 Jeep Wrangler JK Unlimited four-door models.
For the two-door Wrangler JK or other Wrangler generations, confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Because the control arms are retained, the cam bolts and adjustable track bar are used to set caster, pinion angle and alignment. Schedule a full alignment after installation.

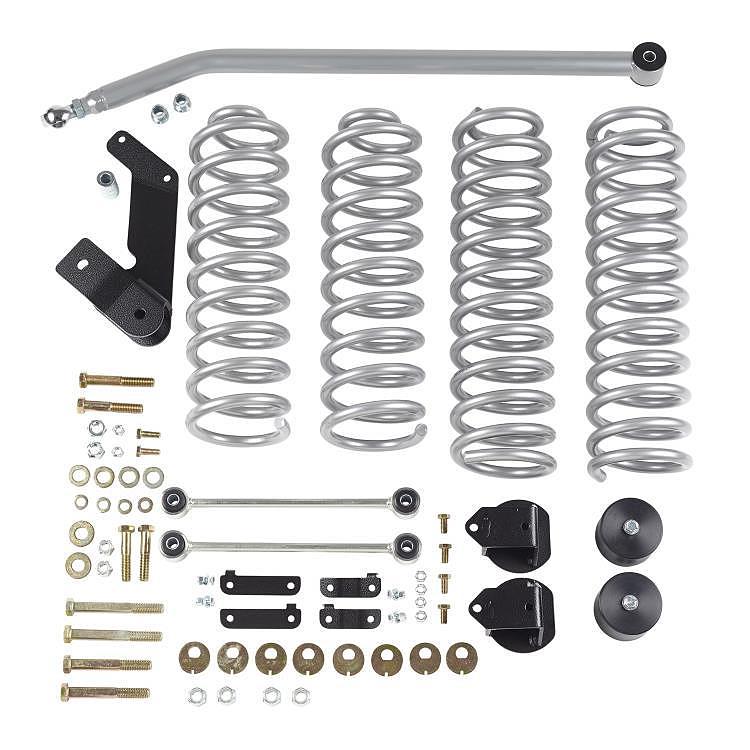

What’s included
The kit includes front and rear replacement coil springs, front and rear cam bolts, front and rear bump stops, an adjustable front track bar, a rear track bar bracket and extended sway bar end links.
Not included: shocks.
