Overview
The Rubicon Express RE7133FP is a 2.5-inch spacer lift kit with front and rear Fox Performance shocks. It adds coil spring spacers to the existing springs, along with bump stops and extended sway bar end links. It is built for the most popular Jeep JK suspension systems, which makes it a fit for the 2007-2018 Jeep Wrangler (JK).
Spacers are what separate this kit from the replacement-spring kits in the same series. Its lift range runs from 2.5 to 3.5 inches, and the maximum tire size is 35X12.50. The Fox shocks are included as part of the kit.
Key features
- 2.5-inch lift from coil spring spacers

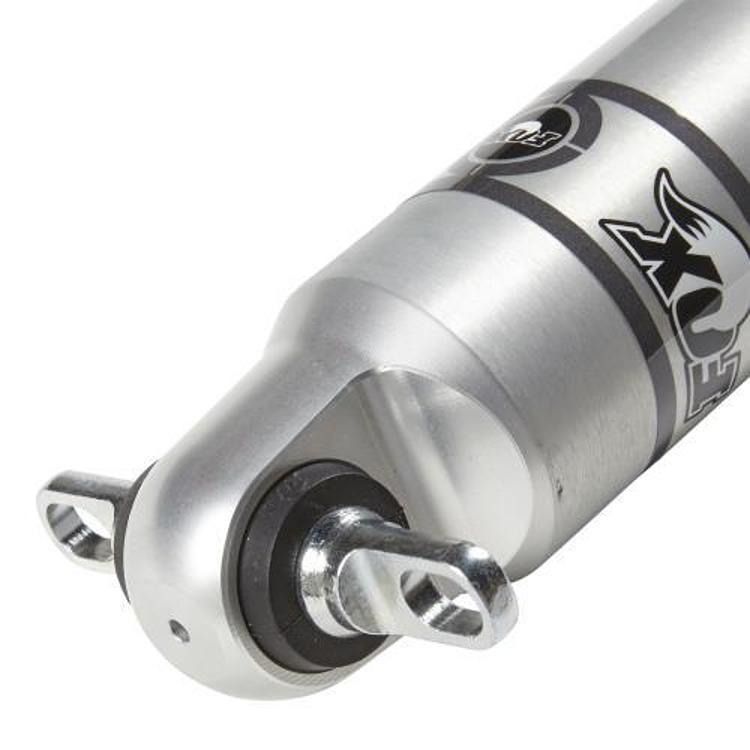

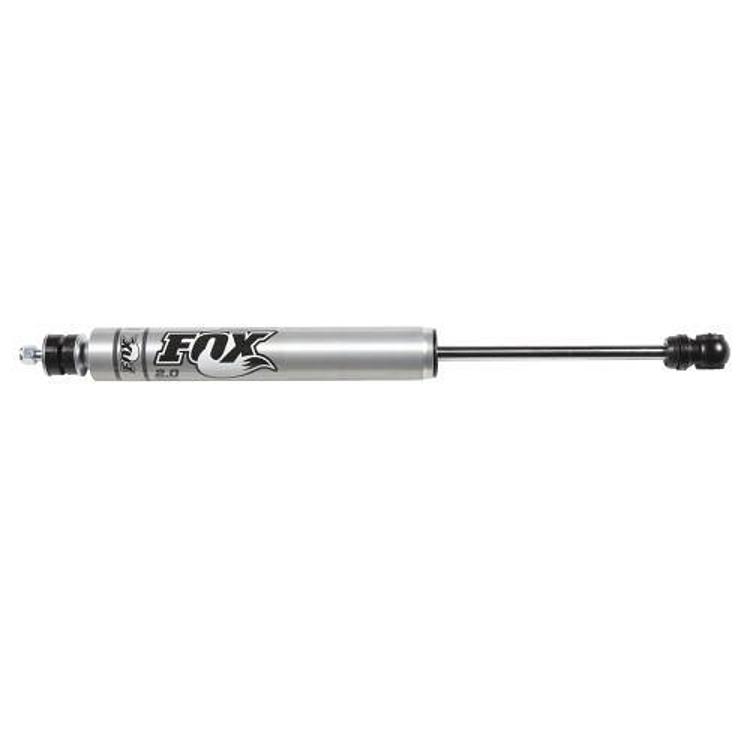

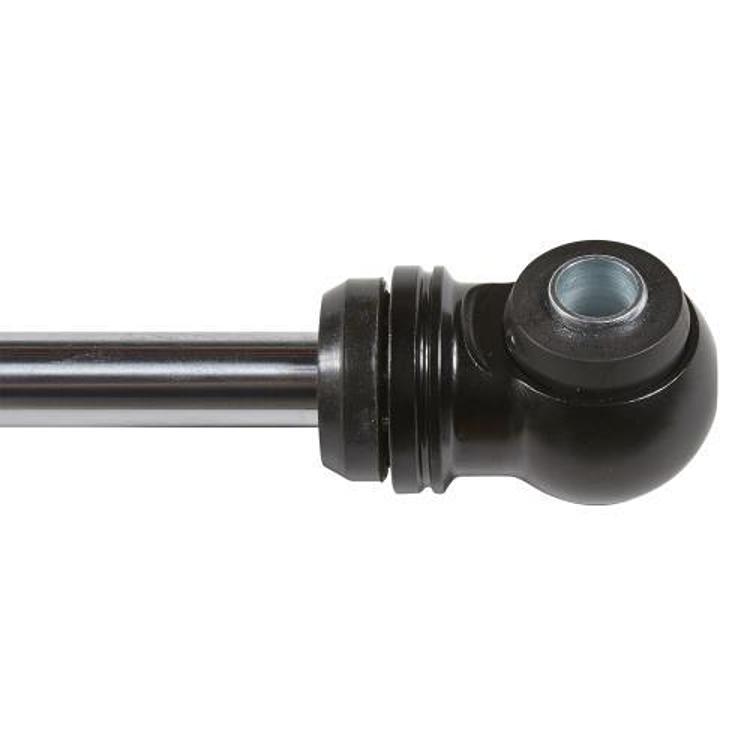

- Front and rear Fox Performance shocks
- Bump stops
- Extended sway bar links
- Maximum tire size of 35X12.50
Spacers and the factory springs
Spacer lifts keep the factory springs in service and raise the body by placing a spacer between the spring and its seat. The spring rate stays the same, so the ride stays close to the original, although the suspension now sits higher. Spacer height affects how much the spring is preloaded, so a spacer should not be stacked to gain more height.
Bump stops and sway bar links are the parts that see the new geometry most. Bump stops control the axle at the end of compression, and extended sway bar links keep the bar working through the new travel. Look at both after the install and again after any tire change.
- Confirm spacers are seated squarely on each spring
- Inspect bump stops for cracks or flattening
- Check sway bar link bushings for wear
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7133FP |
| UPC | 700008204321 |
| Kit type | Spacer lift |
| Lift height | 2.5 inches |
| Spring components | Front and rear coil spring spacers |
| Shocks | Fox Performance, front and rear |
| Maximum tire size | 35X12.50 |
Vehicle fitment
It is built for the most popular Jeep JK suspension systems, which makes it a fit for the 2007-2018 Jeep Wrangler (JK).
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The spacers sit between the factory coil springs and their seats, so the existing springs carry the added height. The extended sway bar links and bump stops are installed in the same job, and the alignment should be checked afterward.
What’s included
The kit includes front and rear coil spring spacers, bump stops, extended sway bar end links and front and rear Fox Performance shocks.
