Rubicon Express 3.5 Inch Progressive Coil Extreme Duty Long Arm Lift Kit – JK4343P

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch progressive coil extreme-duty long arm lift with 4-link front and 3-link rear
  • Progressive coils with a longer extended length for droop travel
  • Adjustable chromoly control arms and Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Fits the 2007-2018 Jeep Wrangler (JK)

Description

Overview

The Rubicon Express JK4343P is a 3.5-inch extreme-duty long arm lift kit with a 4-link front, a 3-link rear and progressive coil springs. It fits the 2007-2018 Jeep Wrangler (JK) and is part of Rubicon Express’s JK suspension line. Adjustable chromoly upper and lower control arms carry Super-Flex spherical ball joints and PT-Meg Super-Ride bushings.

Progressive coils offer longer droop travel than linear coils. The progressive spring rate gives a smooth ride over small bumps and enough rate to limit harsh bottoming at full compression. The full-width transmission crossmember is the frame-side component of the system, and installation does not require welding.

Key features

  • 3.5-inch lift height
  • Progressive coil springs for longer droop travel
  • Extreme-duty 4-link front and 3-link rear long arm system
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Optional monotube shocks and belly pan upgrades in other kits of the series

Progressive coils and droop travel

Coil springs carry the vehicle’s weight, and a progressive design changes its rate as it compresses. The softer start helps the ride stay smooth over small bumps, while the stiffer end resists bottoming on bigger hits. Coil spring rate is closely tied to the rest of the setup, so a matched set of springs, shocks and bump stops is the usual approach for a long arm build.

Droop travel is the other side of the story. Extended spring length matters when a tire lifts off the ground, because the suspension needs room to reach the ground again. When inspecting springs, look for rust on the coils, cracked spring pads and sagging after the first season. Pair any new springs with checks on the bump stops and shock mounts so the full range of motion stays usable.

  • Inspect spring pads for cracks
  • Look for coil rust and sag over time
  • Check bump stop wear alongside the springs

Specifications

Brand Rubicon Express
Part number JK4343P
UPC 700008140201
System type Extreme-duty 4-link front and 3-link rear long arm with progressive coils
Lift height 3.5 inches (chart range 3 to 4.99 inches)
Spring type Progressive coil
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Transmission crossmember Full width

Vehicle fitment

It fits the 2007-2018 Jeep Wrangler (JK), including the 2-door and Unlimited 4-door versions of that generation.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The control arm and crossmember changes alter the arm angles and pinion geometry, so the alignment and driveline angles should be checked after installation.

What’s included

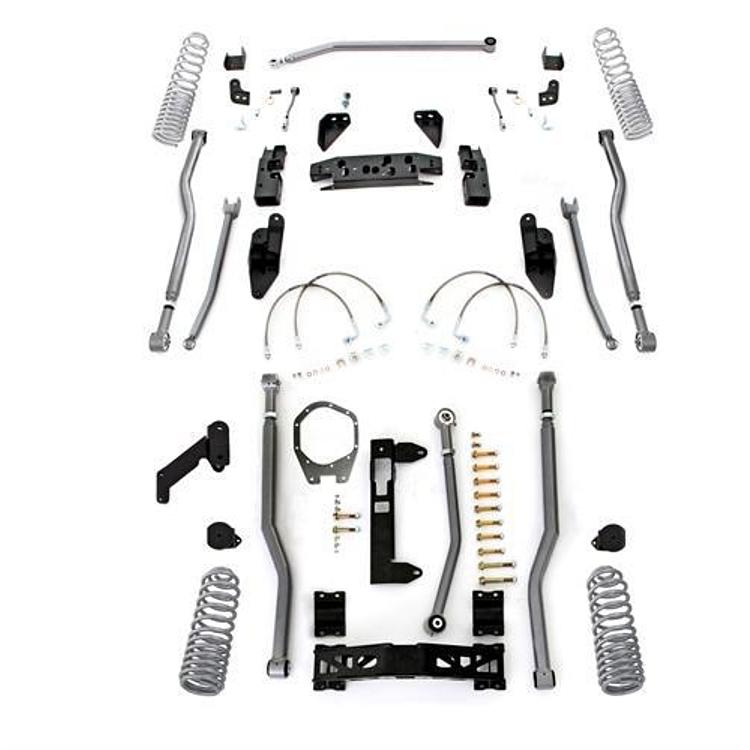

The kit includes the adjustable chromoly control arms, the progressive coil springs, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings and the full-width transmission crossmember.

Not included: the optional belly pan and steering knuckle, which are separate upgrades.

The progressive coil springs are the main spring feature of this kit, and they are paired with the same chromoly control arms and Super-Flex joints used across the family. The full-width transmission crossmember is included, and optional belly pan and steering knuckle upgrades are available from the brand for this system.

SKU: R/EJK4343P Category:

Specification

Shipping weight 279.95 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2018Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is special about the progressive coils?

Progressive coils have a longer extended length than linear coils, which maximizes droop travel. The progressive rate also gives a smooth ride over small bumps.

Which Jeeps does the JK4343P fit?

It fits the 2007-2018 Jeep Wrangler (JK) generation, including 2-door and Unlimited 4-door versions. Confirm fit for your vehicle's year, model and trim before ordering.

Does the JK4343P need welding?

The brand says installation does not require welding, and the full-width transmission crossmember is part of that design. The brand says installation does not require welding.

Are shocks included?

Shocks are not included with this version. Plan on reusing your current shocks or buying a set that suits the 3.5-inch height. A monotube-shock version of this kit is sold separately.

Do progressive coils need special shocks?

Not strictly, but shocks should be matched to the spring rate and lift height. Shocks with the wrong length can limit droop or cause the suspension to top out early, so choose a set designed for a 3.5-inch lift.
