Overview

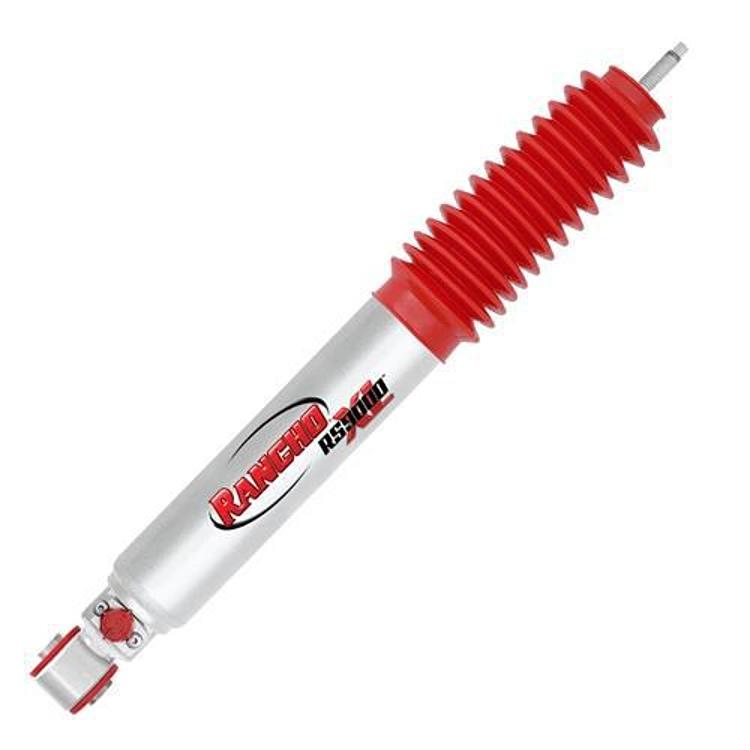

The Rancho RS9000XL Series Shock Absorber, part number RS999237, is a front shock absorber rated for a 4 in. lift. It fits the 1997-2003 Ford F-150, 2004 Ford F-150 Heritage, 1997-2002 Ford Expedition and 1997-1999 Ford F-250.
It has a 2.75-in. (70mm) body diameter and an 18mm chrome rod, plus a 9-position manual or remote tuning system that adjusts the damping. Rancho rates it as a direct-fit, gas-charged unit for the front position.
Key features
- Front position, direct fit
- 4 in. lift listed by the manufacturer
- 9-position manual/remote tuning (myRide)
- 18mm chrome rod
- 2.75-in. (70mm) body diameter
- Nitrogen gas charged
- Red urethane and polyurethane bushings
- Liquid metallic finish
- Protective boot included
Lift height and front geometry
Raising the front of a truck changes the angles of the control arms, steering linkage and shock mounts. A shock that works well at stock height may travel differently once the front is lifted, so the shock’s extended and compressed lengths matter. Matching the shock to the lift helps keep the wheel in a controlled range of travel and prevents the shock from bottoming or running out of stroke.
Front geometry also changes after a lift, which affects caster, camber and toe. These changes can wear tires faster if they are not corrected, so alignment work is part of a front shock job. Check the upper and lower mounts for wear and replace any worn bushings while the old shocks are out.
- Check the shock’s extended length against the lift height
- Inspect upper and lower mounts for wear
- Set the front alignment after the work is complete
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999237 |
| UPC | 10039703092378 |
| Shock series | RS9000XL |
| Position | Front |
| Fitment type | Direct Fit |
| Lift height | 4 in. lift |
| Body diameter | 2.75-in. (70mm) |
| Rod diameter | 18mm chrome |
| Tuning | 9-position manual/remote |
| Gas charge | Nitrogen gas charged |
| Finish | Liquid metallic |
| Bushings | Red urethane and polyurethane |
| Boot | Protective boot included |
| Warranty | Limited lifetime warranty |
Vehicle fitment
It fits 1997-2002 Ford Expedition (Eddie Bauer, XLT), 1997-2003 Ford F-150 (Base, King Ranch, Lariat, XL, XLT), 2004 Ford F-150 Heritage (XL, XLT) and 1997-1999 Ford F-250 (Base, Lariat, XL, XLT).
Expedition years after 2002 and F-250 years after 1999 are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because it is rated for a 4 in. lift, have the front alignment checked once the new shocks are installed.
What’s included
The shock absorber and its protective boot come in the package. Check the package contents against your installation before starting.
