Overview

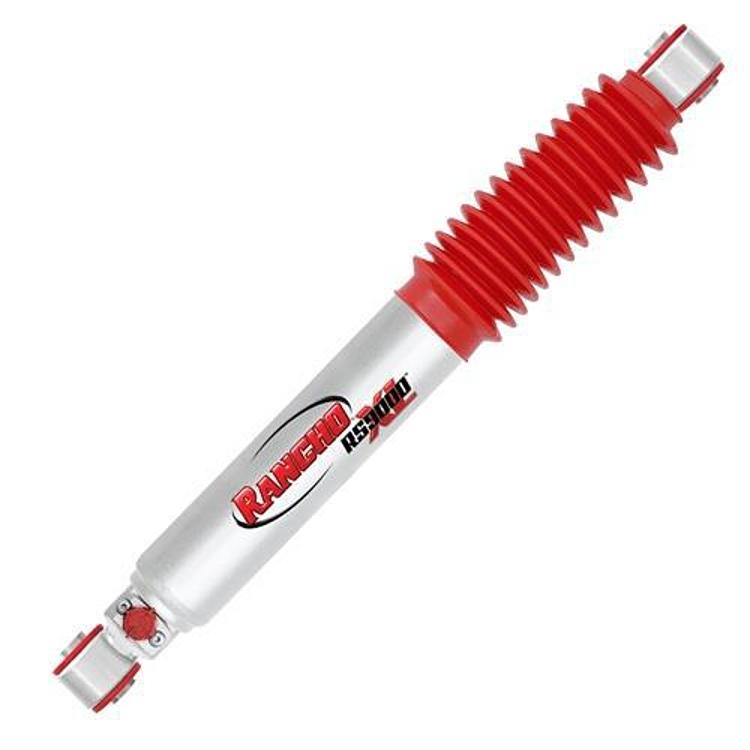

The Rancho RS999123 is a front gas-charged shock absorber from the RS9000XL Series for Chevrolet Blazer, Trailblazer, GMC Jimmy, S15 and Sonoma models, plus Isuzu Hombre and Oldsmobile Bravada, in the years 1983 to 2005. It has a 2.75-in. (70mm) body, an 18mm chrome rod and a 9-position tuning system you can set by hand or remotely.
It is a direct-fit front shock with no lift or drop, so it replaces the original damper at standard height rather than adding any lift. It can replace worn damping on S10 Blazer and Jimmy models or add remote-adjustable tuning.
Key features
- Adjustable damping across nine positions, set by hand or remotely
- 18mm chrome rod with a nitrogen gas charge
- 2.75-in. (70mm) body diameter
- Red urethane bushings
- Liquid metallic finish
- Protective boot included
- Limited Lifetime Warranty from Rancho
Manual vs. remote tuning
Front shocks on older compact trucks and SUVs do a lot of the work at low speed, controlling body bounce over rough pavement and steering wobble on uneven ground. On a truck with worn front suspension, a new shock by itself will not fully restore the ride, because worn ball joints, tie rod ends and control arm bushings let the wheel move in ways the damper cannot control. Inspecting those parts at the same time is a good habit.
When choosing between a manual or remote setting, think about how the truck is used. A setting changed by hand suits a truck that sees the same roads most days, while a remote setting is easier to adjust during a trip with a loaded bed or a change from pavement to dirt. Either way, set both fronts to the same position so the steering stays even.
- Inspect the front bushings at the shock mount
- Check the bump stops for cracks
- Replace front shocks in pairs for balanced handling
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999123 |
| UPC | 10039703091234 |
| Shock series | RS9000XL |
| Position | Front |
| Fitment type | Direct fit |
| Body diameter | 2.75 in. (70mm) |
| Rod diameter | 18mm chrome |
| Charge | Gas charged (nitrogen) |
| Bushings | Red urethane (polyurethane) |
| Finish | Liquid metallic |
| Tuning | 9-position myRide manual/remote |
| Lift height | w/0 in. lift/drop |
Vehicle fitment
Direct fit at the front position for 1995 to 2005 Chevrolet Blazer; 1983 to 1994 Chevrolet S10 Blazer; 2002 to 2005 Chevrolet Trailblazer and Trailblazer EXT; 1992 to 2001 GMC Jimmy; 1983 to 1990 GMC S15; 1983 to 1991 GMC S15 Jimmy; 1991 to 2004 GMC Sonoma; 1998 to 2000 Isuzu Hombre; and 1991 to 1994 and 1996 to 2001 Oldsmobile Bravada.
Chevrolet Blazer years outside 1995 to 2005 and S10 Blazer years outside 1983 to 1994 are not covered. Before ordering, make sure your year, model and trim are covered.
What’s included
A single shock absorber with its protective boot. It carries a Limited Lifetime Warranty.
