Overview
The Pro Comp 6-inch Lift Kit with PRO-VST Front Coilovers and PRO-VST Rear Shocks, part number EXPK1143BX (kit K1143BX), is a stage 1 suspension lift for 2007 to 2013 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups. It fits the Silverado in the Hybrid, LS, LT, LTZ, WT and XFE versions, and the Sierra in the Denali, Hybrid, SL, SLE, SLT, WT and XFE versions.
The kit gives 6 inches of stage 1 lift, with a lift height range of 6 to 7 inches. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs. The kit is named for PRO-VST front coilovers and PRO-VST rear shocks, so confirm the included front parts before ordering.
Key features
- 6-inch stage 1 suspension lift
- PRO-VST rear shocks, included
- PRO-VST front coilovers
- Block and spacer rear with U-bolts and add-a-leafs
- Lift height range of 6 to 7 inches

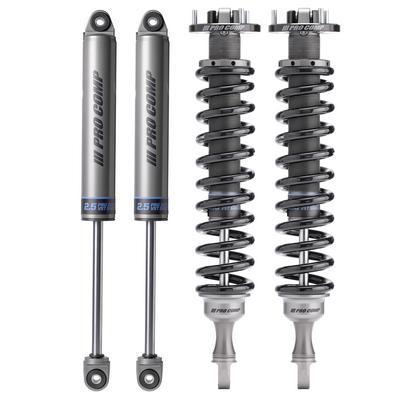

Front coilover setup
Front coilovers replace the factory springs and shock in one assembly, so the front ride is set by the coilover rather than the stock parts. A correctly adjusted coilover gives a more consistent front height, but it also needs a proper alignment after installation. Check the front geometry before taking the truck on a long drive.
Spring preload and the top mount hardware should be checked after the first few drives, since settling can change the front height slightly. Coilover bodies also need inspection for leaks, damaged threads and worn bushings. Replace worn parts in pairs so the front stays balanced from side to side.
- Check top mount hardware after early drives
- Set front height evenly side to side
- Inspect coilover bodies for leaks
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1143BX |
| Kit code | K1143BX |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches stage 1; range 6 to 7 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |
| Front | PRO-VST coilovers |
| Rear shocks | PRO-VST |
| Fit type | Direct fit |

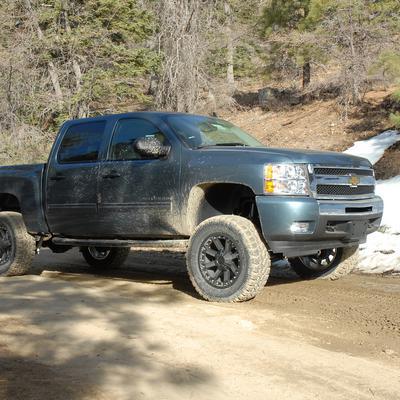

Vehicle fitment
Fit covers 2007 to 2013 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups in the trim packages covered here. Check that the year, model and trim match your truck before ordering.
The list does not include the 2006 and earlier or 2014 and newer 1500 pickups. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the front uses coilovers in place of the factory springs, the front height and alignment change. Check both after installation.

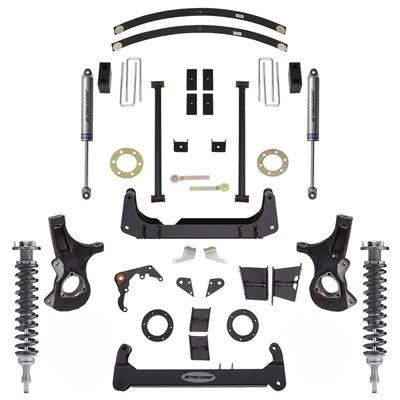

What’s included
The 6-inch stage 1 lift kit with PRO-VST rear shocks, and the rear block and U-bolt add-a-leaf components. The title also names PRO-VST front coilovers.
