Pro Comp 3 Inch Lift Kit with ES3000 Shocks – K3058B

Pro Comp Suspension

Shop Jeep Cherokee XJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3-inch stage 1 coil spring and short arm lift for 1984–2001 Jeep Cherokee (XJ)
  • Front coil springs with fixed lower control arms and a track bar bracket
  • Rear add-a-leaf lift with ES3000 front and rear shocks
  • Max tire size 31×10.5 with brake line extension brackets

Description

Overview

The Pro Comp K3058B is a 3-inch stage 1 suspension lift for 1984–2001 Jeep Cherokee (XJ) models. The front is lifted with coil springs and the rear with add-a-leafs, and ES3000 shocks are fitted at both ends. It suits Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE and Sport XJ trims.

The front end uses fixed lower control arms and a track bar bracket, and brake line extension brackets are included to suit the raised height. The lift height range is 3 to 4.99 inches.

Key features

  • 3-inch stage 1 lift
  • Front coil springs and front sway bar links
  • Fixed lower control arms
  • Track bar bracket included
  • Brake line extension brackets
  • Rear add-a-leaf lift
  • ES3000 front and rear shocks

Working with add-a-leaf lifts

An add-a-leaf lift adds leaves to the existing rear spring pack, so the rear keeps much of its original spring rate while gaining height and some stiffness. Leaf packs can settle over time, so the spring eyes and shackles should be checked for wear after the lift. The U-bolts hold the axle to the springs and should be inspected for thread damage and tightness.

Front coil springs and fixed lower control arms set the front height together. Because the front is raised by coils rather than leaves, the front and rear can sit at different heights, and steering geometry changes with them. Check the track bar bracket position, sway bar links and brake line extension brackets during the first service, and look for worn bushings in the lower control arms.

  • Retighten U-bolt nuts after the first trips
  • Inspect leaf packs for cracks
  • Check brake line extension brackets for movement

Specifications

Brand Pro Comp Suspension
Part number K3058B
UPC 614901123043
Lift 3 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Coil spring and short arm
Front lift Coil springs
Rear lift Add-a-leafs
Front shocks ES3000
Rear shocks ES3000
Max tire size 31×10.5

Vehicle fitment

It is designed for 1984–2001 Jeep Cherokee (XJ) models in the trims named above. Cherokee models from the KL and XL generations, which began in 2014, fall outside its coverage, and so does the Grand Cherokee.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fixed lower control arms and an add-a-leaf rear lift change the suspension geometry, so have the front alignment checked after installation and confirm that the track bar bracket is fitted in the intended position. Check the brake line extension brackets once the lines are lengthened.

What’s included

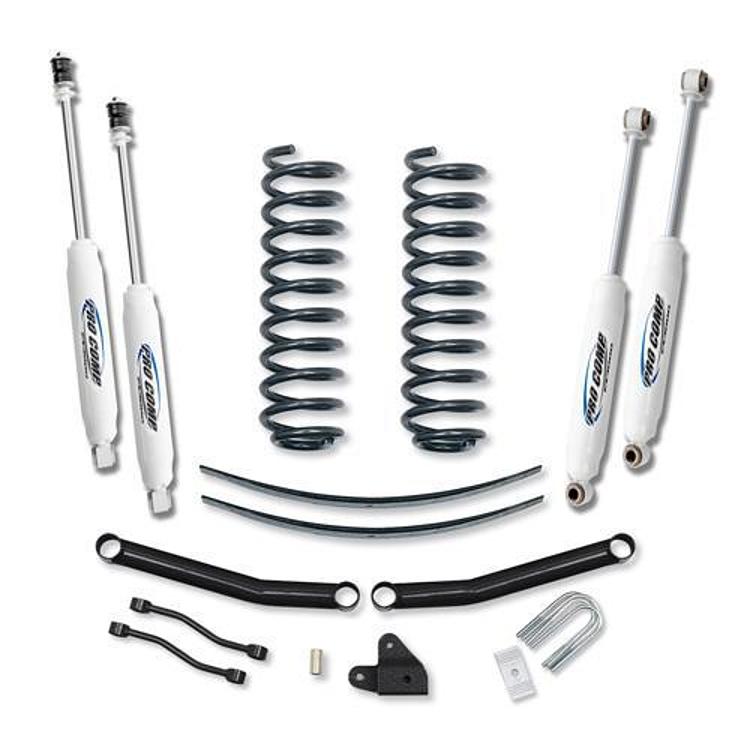

The kit includes front coil springs, fixed lower control arms, front sway bar links, a track bar bracket, brake line extension brackets, rear add-a-leaf parts and ES3000 front and rear shocks.

SKU: EXPK3058B Category:

Specification

Shipping weight 84.12 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–2001Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3058B fit a 1997 Jeep Cherokee?

Yes. The kit is designed for 1984–2001 Jeep Cherokee (XJ) models, which includes 1997. Confirm the trim and model year against your vehicle before ordering.

What does the rear lift on the K3058B use?

The rear uses add-a-leafs, which add extra leaves to the rear springs to raise the rear. The front uses coil springs with fixed lower control arms, and ES3000 shocks are supplied at both ends.

Is a track bar bracket included?

Yes. A track bar bracket is part of the kit, and it is supplied with the front sway bar links and brake line extension brackets, so the front end parts come together in one package.

Do add-a-leaf lifts ride differently from coil springs?

Usually the rear feels firmer when unloaded, because the added leaves stiffen the spring pack. Check leaf clamp bolts and U-bolts after the first few trips, and inspect the leaves for cracks during each service.
