Pro Comp 6 Inch Stage II Lift Kit with ES3000 Shocks – K4066B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 2 coil spring lift with radius arms and an ES3000 shock package
  • Front bump stop extensions, pitman arm and extended length brake lines
  • Rear block and U-bolt kit for the rear lift
  • Fits 1990–1996 Ford F-150 trucks

Description

Overview

The Pro Comp K4066B is a 6-inch stage 2 coil spring lift built around radius arms, with ES3000 shocks at the front and rear. It fits 1990–1996 Ford F-150 trucks, with a lift height range of 5 to 6.99 inches.

The front is lifted with coil springs on radius arms, and bump stop extensions are included to control suspension travel at the new height. A pitman arm handles the steering correction. The rear is raised with a block and U-bolt kit.

Key features

  • 6-inch stage 2 lift
  • Front coil springs with radius arms
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines
  • Rear block and U-bolt lift

Pitman arm and brake hose checks

The pitman arm handles the steering correction at the new height, and its centering affects how the truck tracks on the road. After the suspension has moved, the arm and its linkage should be checked for free movement and proper centering before the front alignment is finished.

Extended brake lines need the same attention. A raised front end lengthens the distance the hose travels, so its routing, bracket clearance and strain at full steering lock should be inspected. A hose that is stretched or rubbing can wear through over time, so it deserves a close look during the first service.

  • Check pitman arm centering after the first drive
  • Inspect brake hose routing at full lock
  • Look for rubbing against brackets or the tire
  • Recheck fasteners after the first few trail runs

Specifications

Brand Pro Comp Suspension
Part number K4066B
UPC 614901125122
Lift 6 inches, stage 2
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arms
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

It fits 1990–1996 Ford F-150 trucks.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arms change the front axle location and caster, so the alignment should be set once the kit is installed. Check the extended brake lines for length and routing at the new height, and check the pitman arm centering as well.

What’s included

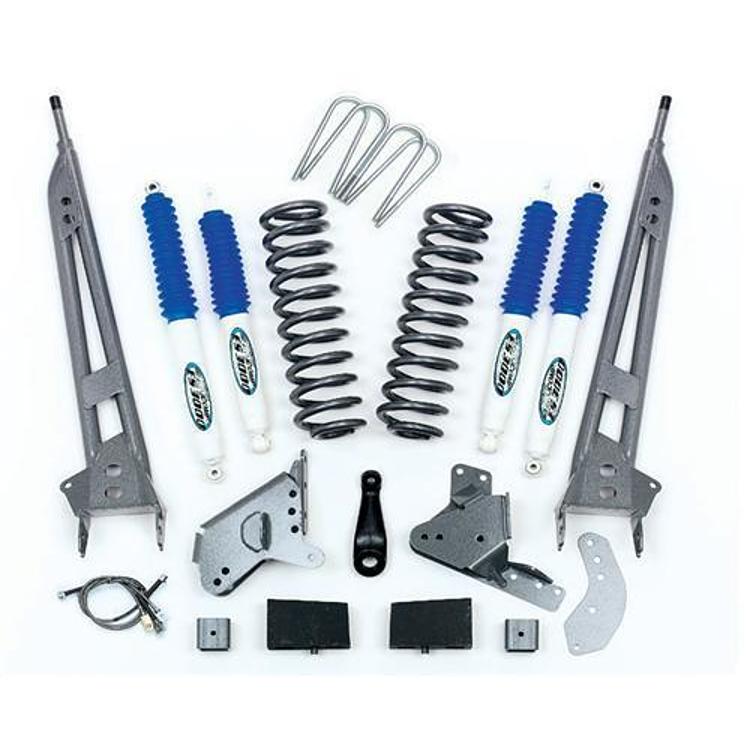

The kit includes front coil springs, radius arms, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks.

SKU: EXPK4066B Category:

Specification

Shipping weight 182.36 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501990–1996Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4066B fit a 1992 Ford F-150?

Yes. It fits 1990–1996 Ford F-150 trucks, including 1992. Confirm the trim matches your truck before ordering, since trims vary across the range.

Is the K4066B a 6-inch lift?

Yes. It is a 6-inch stage 2 lift with a lift height range of 5 to 6.99 inches. The front uses radius arms with coil springs.

Are shock boots included with the K4066B?

No. Shock boots are not part of this 6-inch stage 2 F-150 kit, so ES3000 boots, if wanted, must be bought separately.

Does a block and U-bolt rear lift affect ride quality?

It can. Blocks change the rear spring seat height, which alters the ride and the way the rear axle moves over bumps. Recheck the bump stops and shock length after the lift, and keep the rear springs in good condition so the truck settles evenly.
